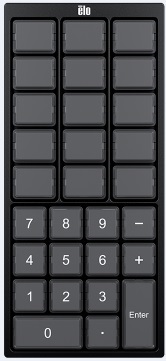

Elo Edge Connect 10-Key Keypad

Elo Edge Connect 10-Key Keypad
  • 15 programmable buttons for customized experience
  • Do more with Edge Connect extension
  • Secure mounting for easy install
  • 2 Year Warranty

Elo Edge Connect 10-Key Keypad

Elo Edge Connect 10-Key Keypad

The Elo Edge Connect 10-Key Keypad is designed to enhance point-of-sale (POS) efficiency in retail, hospitality, and enterprise environments. It features a tactile, ergonomic layout with 15 programmable keys, allowing for quick and accurate input. The keypad integrates seamlessly with Elo touchscreen monitors and touch computers, streamlining tasks like price entries and adjustments. Additionally, it offers secure wired connectivity and is compatible with various Elo peripherals, making it versatile for different retail applications.

  • Specifications
  • Overview
  • Accessories
  • Support
Model Elo Edge Connect 10-Key Keypad
Part Number(s) E541676
Enclosure Color Black
Compatibility

Touchscreen Monitors - 1523L, 1723L

Note: Need to use the different metal bracket.
Power Supply USB Power
Compliant USB2.0 Full-Speed
Interface Wafer Connect USB, Pitch=1.25mm
Cable Length=235mm
Supported Operating Systems Android 10/12/14
Windows 10/11
Linux 22.04
Dimensions 7.37" x 3.35" x 0.98" / 187.3 mm x 85 mm x 24.8 mm
Shipping Box Dimensions 9.53" x 9.73v x 3.19" / 242 x mm x 247 mm x 81 mm
Weight (Unpackaged) 0.49 lbs / 222g
Weight (Packaged) 2.86 lbs / 1300g
Operating Temperature -0° C to 40° C / 32° F to 104° F
Storage Temperature -20° C to 50° C / -4° F to 122° F
Humidity Operating: 20% - 80%
Storage: 10% - 95%
Regulatory approvals and declarations CE, FCC/IC
Warranty 2-year
What's in the Box 1x 10 Key Keypad with integration USB wire
1x Bracket for 1523L
1x Bracket for 1723L
1x QIG
1x Screw, M4x18 (in the “A”) - for mounting the Bracket to 1523 or 1723 monitors
2x Screw, M3x6 (in the “B”) - for mounting the MSR Kit
4x Screw, M3x7 (in the “C”) - for mounting the Bracket to keypad
1x Key cap/tip removing tool (in the “D”)

15 programmable buttons for customized experience

The keypad offers 15 programmable keys to support custom workflows, application-specific shortcuts, and the ability to lock or unlock the device enabling secure access control.

Do more with Edge Connect extension

An integrated Edge Connect port is positioned on the right side of the keypad, allowing the connection of additional Elo Edge Connect peripherals without occupying a separate device port.

Secure mounting for easy install

The keypad securely mounts to the edge and rear of the display ensuring stability during fast and high-volume operation.

Optional Accessories
 Part #



Elo Edge Connect 10-Key Keypad Product Data Sheet

Elo Edge Connect 10-Key Keypad Dimensional Drawing

Elo Edge Connect 10-Key Keypad Quick Install Guide
