Elo Backpack 5 Android Computer Engine

Elo Backpack 5 Android Computer Engine
  • Enterprise Android in a box
  • Powerful Processing
  • Google Mobile Services (GMS)
  • Built for any use
  • Small footprint
  • Universal VESA mount
  • EloView Compatible
  • 2 Year Warranty

Elo Backpack 5 Android Computer Engine

Elo Backpack 5 Android Computer Engine

The Elo Backpack 5 delivers a powerful, enterprise-grade computer complete with a flexible Android 14 OS, powerful Qualcomm 6490 processor, WiFi 6E and connectivity to satisfy all your needs. From digital signage and self-service kiosks to point of sale, kitchen display systems (KDS) and automation controls, scaling Elo’s commercial Android platform across sizes and form factors has never been easier.

Create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Mobile Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.

  • Specifications
  • Overview
  • Accessories
  • Support
Model Elo Backpack 5 Android Compute Engine
Part Number(s) E620713
Enclosure Color Black
Processor Qualcomm Snapdragon QCS6490
Memory 8GB
Storage 64GB
Wireless 802.11a/b/g/n/ac/ax + Bluetooth 5.2
Via external antenna

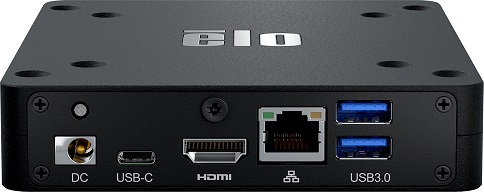

I/O Ports HDMI
4x USB 3.0 support
USB-C output
Micro SD slot
GPIO
Ethernet 1x LAN (Gigabit)
DC in
OS Android 14 with Google Play Services (AOSP capable)
Upgrade to Android 16 and planned upgrade to Android 18 are available with an OS 360 subscription
Resolution USB-C*: 1920 x 1080 @60fps
HDMI: 3840 x 2160 @60fps
* When using USB-C for video, the USB protocols will drop to 2.0 speeds.
Power Supply AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz

power adapter (included in accessory box)
Power Consumption (Typical) On: 4.1W
Off: 0.1W
Sleep: 3.8W
Mounting Options VESA 75mm and 100mm
Dimensions 4.5" x 5.5" x 1.0" / 114 mm x 139 mm x 25.4 mm
Shipping Box Dimensions Individual System: 14.6" x 8.3" x 2.4" / 371 mm x 210 mm x 62 mm
8 systems/carton: 17.4" x 10.6" x 16.3" / 441 mm x 270 mm x 413 mm
Value Model: 17.4" x 10.6" x 16.3" / 441 mm x 270 mm x 413 mm
Weight (Unpackaged) Standard Model: 1.3 lbs / 0.59 kg
Weight (Packaged) Individual System: 2.9 lbs / 1.3 kg
8 systems/carton: 26.0 lbs / 11.8 kg
Operating Temperature 0°C to 40°C / 32°F to 104°F
Storage Temperature -20°C to 50°C / -4°F to 122°F
Humidity Operating: 20% to 80%
Storage: 10% to 95%
Real-TIme Clock lithium coin cell battery
What's in the Box Backpack 5
North American Power Cable
European Power Cable
1x Power Brick with locking screw
2x Antenna
Quick Install Guide
OS Support Bi-monthly Android security updates available with Elo OS 360 package.
Regulatory approvals and declarations UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)
Supported Countries Canada, USA, Australia, Japan, South Korea, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Warranty 2-Year
Extended Warranty Options
3 year OS 360 - Elo P/N: E897877
4 year OS 360 - Elo P/N: E898097
5 year OS 360 - Elo P/N: E898282
3 year warranty coverage - Elo P/N: E895914
4 year warranty coverage - Elo P/N: E896120
5 year warranty coverage - Elo P/N: E896322
2 year warranty coverage + AUR - Elo P/N: E896513
3 year warranty coverage + AUR - Elo P/N: E896699
4 year warranty coverage + AUR - Elo P/N: E896903
5 year warranty coverage + AUR - Elo P/N: E897104

The Elo Backpack 5 delivers a powerful, enterprise-grade computer complete with a flexible Android 14 OS, powerful Qualcomm 6490 processor, WiFi 6E and connectivity to satisfy all your needs. From digital signage and self-service kiosks to point of sale, kitchen display systems (KDS) and automation controls, scaling Elo’s commercial Android platform across sizes and form factors has never been easier.

Create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Mobile Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.
