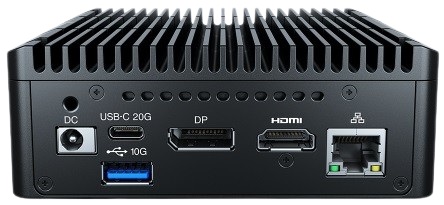

Elo Backpack with Intel

The Elo Backpack with Intel is a line of compact, powerful, enterprise-grade mini PCs designed to power interactive displays, kiosks, and POS systems, running Windows 11 with high-performance Intel Core Ultra processors for AI-ready computing, offering robust connectivity (USB, Ethernet, Wi-Fi, HDMI) and easy VESA mounting for seamless integration into retail, hospitality, and automation environments. It serves as a powerful, space-saving engine, transforming standard Elo touchscreens or any HDMI display into a full-fledged commercial computing solution.

Specifications
Overview
Accessories
Support

Model	Elo Backpack win Intel
Part Number(s)	N97, No OS, 8GB RAM, 128GB SSD - E345165 N97, Win11, 8GB RAM, 128GB SSD - E345569 i3, No OS, 16GB RAM, 256GB SSD - E345966 i3, Win11, 16GB RAM, 256GB SSD - E346150 i5, No OS, 16GB RAM, 256GB SSD - E346334 i5, Win11, 16GB RAM, 256GB SSD - E346532
Enclosure Color	Black
Processor	Intel Processor N97 (6 MB Intel Smart Cache, up to 3.6 GHz by Intel Turbo Boost Technology 3.0) Intel Core 3 Processor N355 (6 MB Intel Smart Cache, up to 3.9 GHz by Intel Turbo Boost Technology 3.0) Intel Core Ultra 5 Processor 135U (12 M Smart Cache, up to 4.4 GHz by Intel Turbo Boost Technology 3.0) Intel vPro Support
Graphics	N97: Intel UHD Graphics i3 & i5: Intel Graphics
BIOS	AMI Note: Secure Boot setting default is enabled
Memory (RAM)	N97: 8GB 4800MHz DDR5 SO-DIMM on 1 slot (Expandable to 16GB maximum) i3: 16GB 4800MHz DDR5 SO-DIMM on 1 slot (Expandable to 16GB maximum) i5: 16GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum¹ on 2 slots) Maximum memory using 2 slots. Expandable up to 64GB maximum, SO-DIMM DDR5-5600. Check brand of the memory included in your unit before purchasing the memory kit.
Storage	N97: 128GB M.2 PCIe (NVMe) SSD 80 TBW i3 & i5: 256GB M.2 PCIe (NVMe) SSD 160 TBW
TPM	2.0
Active Management Technology (AMT)	N97 & i3: N/A i5: Intel Active Management Technology
Wireless	802.11a/b/g/n/ac/ax + Bluetooth 5.2 Via external antenna
I/O Ports	N97 & i3: 1x HDMI 1x Display Port 1 x LAN RJ45 (Gigabit) 2 x USB 3.2 Gen2 + 1 x USB 3.2 Gen1 + 1 x USB 2.0 2 x Full-function USB-C (Power up to 15W, USB 3.2 Gen2x1, Display Port) i5: 1x HDMI 1x Display Port 1 x LAN RJ45 (Gigabit) 3 x USB 3.2 Gen2 + 1x USB 3.2 Gen1 1 x Full-function USB-C (Power up to 15W, USB 4 Gen 3x2, Display Port) 1 x Full-function USB-C (Power up to 15W, USB 3.2 Gen2x2, Display Port)
Wireless	802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
Bluetooth	Bluetooth 5.3
Antenna	2T2R design with External SMA connector
Audio Ports	1x 3.5 mm headset jack
OS	No OS Windows 11 IoT Enterprise LTSC 64-bit
Languages	Windows 10 - 36 Language groups
Power Supply	External 19VDC universal-type power supply brick AC input voltage: 100-240 VAC Input frequency: 50-60 Hz Maximum output power: 90W
Power Consumption (Typical)	Without Peripherals On N97: 21W On i3: 25.5W On i5: 26W Sleep: < 2W Off BIOS EUP Disable: < 1 W Off BIOS EUP Enabled: < 0.5W
Dimensions	5.48" x 4.48" x 1.72" / 139.1 mm x 113.75 mm x 43.66 mm
Shipping Box Dimensions	Individual System: 14.92" x 8.15" x 3.23" / 379 mm x 207 mm x 82 mm 6 systems/carton: 17.36" x 10.63" x 16.26" / 441 mm x 270 mm x 413 mm
Weight (Unpackaged)	2.14 lbs / 0.97 kg
Weight (Packaged)	Individual System: 5.01 lbs / 2.27 kg 6 systems/carton: 32.08 lbs / 14.55 kg
Operating Temperature	0°C to 40°C / 32°F to 104°F Note: The thermal report passes with airflow 0.5m/s + CPU Minimum assured power condition. To assure proper airflow, please remove the protective film on the sides of the machine before activating the unit.
Storage Temperature	-20°C to 60°C / -4°F to 140°F Note: The thermal report passes with airflow 0.5m/s + CPU Minimum assured power condition. To assure proper airflow, please remove the protective film on the sides of the machine before activating the unit.
Humidity	Operating: 10% to 90% Storage: 0% to 95% (38.7°C max wet bulb temperature)
Regulatory approvals and declarations	Canada cUL, IC United States UL, FCC Germany TUV Europe CE Australia RCM United Kingdom UKCA International CB Japan VCCI, MIC China CCC, SRRC Mexico NOM RoHS CoC
Real-TIme Clock	CR2450 lithium metal battery
MTBF	50,000 hours demonstrated
Mounting Options	Bracket mounts to table with screws or VESA 100mm
Warranty	3-year
Extended Service Options	4 year warranty coverage - Elo P/N: E896120 5 year warranty coverage - Elo P/N: E896322 3 year warranty coverage + AUR - Elo P/N: E896699 4 year warranty coverage + AUR - Elo P/N: E896903 5 year warranty coverage + AUR - Elo P/N: E897104
Other Features	Serviceable internal components Kensington Nano Security Slot
What's in the Box	Backpack with Intel North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch) EU Power Cord (1800+/-50mm) Power Adapter – 90W USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch) 2x SMA Antenna Quick Installation Guide (QIG) 2x Side mount bracket and 4x M4 x 5mm screws 4x M4 x 40mm screws

Enterprise-grade Mini PC

The Elo Backpack with Intel is a line of compact, powerful, enterprise-grade mini PCs designed to power interactive displays, kiosks, and POS systems, running Windows 11 with high-performance Intel Core Ultra processors for AI-ready computing, offering robust connectivity (USB, Ethernet, Wi-Fi, HDMI) and easy VESA mounting for seamless integration into retail, hospitality, and automation environments. It serves as a powerful, space-saving engine, transforming standard Elo touchscreens or any HDMI display into a full-fledged commercial computing solution.

Turn on and off whenever you need

Whether the Elo Backpack is in a kiosk or mounted behind a display, you can easily turn the device on or off remotely.

Small footprint for compact spaces

Purpose-built to accommodate compact spaces, the Elo Backpack offers a small footprint in both size and weight.

Universal VESA mount

Easily secure to any counter or in a kiosk in a snap with the built-in VESA mount.

Connectivity for all of your accessories

The Elo Backpack covers all your connectivity needs with HDMI, Display Port, Ethernet, 4x USB, 2x full-function USB-C, Wi-Fi and Bluetooth.

The perfect pairing for any touchmonitor

Available in Windows 11 and No-OS versions, the Elo Backpack turns any Elo touchscreen—from 7-65 inches—into a flexible, fully powered interactive solution.

Smarter performance, endless possibilities

The Elo Backpack combines Intel processing power with integrated AI acceleration to tackle today's workloads and prepare for tomorrow's demands. Delivering reliable performance and up to 32 pTOPS of AI capability, it's built to help businesses run smarter, faster, and more efficiently.
