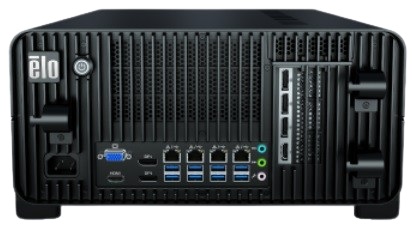

Elo AI Edge Pack Edge Computing System

Elo AI Edge Pack Edge Computing System
  • High-performance compute at the edge
  • Low latency for real-time control
  • Secure, cost-efficient and edge-optimized
  • Compact power for edge deployments
  • NVIDIA RTX 5080 GPU or Hailo NPU acceleration
  • Up to 1800 TOPS of AI Performance
  • Up to 192GB DDR5 RAM
  • Up to 4TB of storage
  • 3 Year Warranty

Elo AI Edge Pack Edge Computing System

Elo AI Edge Pack Edge Computing System

The Elo AI Edge Pack delivers enterprise-grade edge computing powered by an Intel Core i9 processor with integrated Intel Iris graphics and choice of NVIDIA RTX 5080 GPU or Hailo NPU acceleration, supporting up to 1800 TOPS of AI performance. By processing data locally, the Elo AI Edge Pack minimizes latency, strengthens security, and reduces cloud dependence-enabling real-time control for automation, AI computing, and data-heavy applications.

With support for up to 192GB DDR5 RAM, dual M.2 NVMe drives (RAID-capable), and up to 4TB of storage, the Elo AI Edge Pack provides the scalable edge computing, memory, and graphics performance needed to power current operations and prepare for next-generation innovation.
List View
Grid View

  • Specifications
  • Overview
  • Accessories
  • Support
Model Elo AI Edge Pack Edge Computing System
Part Number(s) NVIDIA GeForce RTX 5080, North America - E540147
Hailo 0808S, North America - E704846
NVIDIA GeForce RTX 5080, EMEA - E682675
Hailo 0808S, EMEA - E745349
Processor Intel Processor i9 14900 (36M Smart Cache, up to 5.80 GHz)
Chipset Intel R680E
Graphics Intel Graphics
BIOS AMI
Trusted Platform Module (TPM) TPM 2.0
Memory 96GB 5600MHz DDR5 U-DIMM on 3 slots
(Expandable to 192GB maximum1 on 4 slots, Varies by model)
Storage 1TB M.2 PCIe (NVMe) SSD
(2 slots, Varies by model)
PCIEx16 Addin Card NVIDIA GeForce RTX 5080 SOLID CORE OC 16GB
Hailo 0808S
Varies by model
OS No OS
I/O Ports

4x RJ45 LAN (2.5 Gigabit) Port
8x USB 3.0 Ports
2x Display Ports
1x HDMI
1x VGA
3 x Audio Port (3.5 mm Line in/Out /Mic In)

NVIDIA GeForce RTX 5080 configuration includes an add-in I/O card providing additional 3× DisplayPort and 1× HDMI outputs.
Control Buttons Power Button
Power Status LED Off: no Light, On: Green, Sleep: flash Green
Power Supply AC input voltage: 100-240 VAC 850W
Input frequency: 50-60 Hz
Maximum output power: 66W(3.3V)*, 100W(5V)*, 849.6W(12V)**
* Maximum continuous total DC output power should not exceed 850 W.
** Maximum continuous combined load on +3.3 VDC and +5 VDC outputs shall not exceed 100 W
Power Consumption (Typical) Without Peripherals
On E540147: 660W
On E704846: 280W
Sleep: 3.4W
Off: 0.7W
Other Features Serviceable internal components
Power Cables North American or European power cables (Varies by model)
Dimensions 13.54" x 14" x 6.86" / 344 mm x 356.7 mm x 174.2 mm
Shipping Box Dimensions 18.5" x 18.5" x 14.5" / 470 mm x 470 mm x 370 mm
Weight (Unpackaged) NVIDIA GeForce RTX 5080: 19.4 lbs / 8.9 kg
Hailo 0808S: 17.6 lbs / 8 kg
Weight (Packaged) NVIDIA GeForce RTX 5080: 28.6 lbs / 13 kg
Hailo 0808S: 22 lbs / 10.3 kg
Operating Temperature Operating: 0°C to 35°C (32°F to 95°F)*
Storage: -20°C to 60°C (-4°F to 140°F)
*The thermal report pass airflow 0.5m/s + CPU Minimum assured power condition
Storage Temperature Operating: 20% to 80%
Storage: 5% to 95% (38.7℃ max wet bulb temperature)
Humidity Operating: 20% to 80%
Storage: 10% to 95%
Real-TIme Clock CR2032 lithium metal battery
Regulatory approvals and declarations Canada cUL, IC
United States UL, FCC
RoHS CoC
Japan VCC
International CB
Warranty 3-year
Extended ServiceOptions
4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582
What's in the Box Elo AI Edge Pack
North America Power Cord / EU Power Cord (Varies by model)
Quick Installation Guide (QIG)
Cable tie

High-performance compute at the edge

The Elo AI Edge Pack delivers enterprise-grade edge computing powered by an Intel Core i9 processor with integrated Intel Iris graphics and choice of NVIDIA RTX 5080 GPU or Hailo NPU acceleration, supporting up to 1800 TOPS of AI performance. By processing data locally, the Elo AI Edge Pack minimizes latency, strengthens security, and reduces cloud dependence—enabling real-time control for automation, AI computing, and data-heavy applications. With support for up to 192GB DDR5 RAM, dual M.2 NVMe drives (RAID-capable), and up to 4TB of storage, the Elo AI Edge Pack provides the scalable edge computing, memory, and graphics performance needed to power current operations and prepare for next-generation innovation.

Low latency for real-time control

By processing data at the edge, the Elo AI Edge Pack reduces the delays associated with cloud round-trips. This makes it ideal for automation, autonomous systems, and applications that require immediate responses. Aggregating and processing data locally also reduces bandwidth usage while ensuring critical information is acted on instantly.

Secure, cost-efficient, and edge optimized

The Elo AI Edge Pack puts you back in control of your infrastructure. By processing workloads locally, it minimizes latency, strengthens data privacy, and supports compliance—while reducing the costs of cloud transfers and storage. Built for cloud repatriation, it runs complex workloads at the edge and sends only essential data off-site, improving resiliency and ensuring your most critical information stays protected.

Compact power for edge deployments

Purpose-built for environments where space is limited, the Elo AI Edge Pack offers powerful computing closer to where your data is created. Whether placed on a shelf or mounted on a rack, it's designed to fit seamlessly into diverse edge installations.

Connectivity for every application

Designed to keep your systems connected and secure, the Elo AI Edge Pack offers four LAN ports for redundancy and improved throughput—ensuring reliable, hardwired performance across your network. With flexible I/O options, it easily connects to the peripherals and devices your business depends on, from POS systems and sensors to cameras and industrial controllers.
