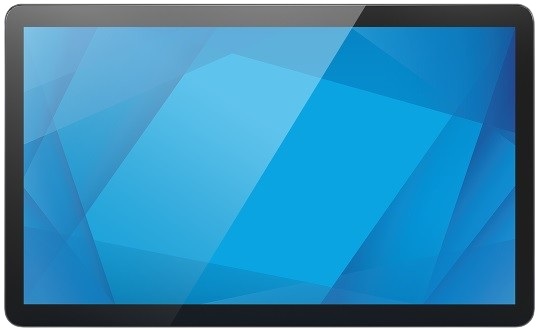

Elo 1504L 15 Inch Touchscreen Monitor
 |
|
Elo 1504L 15 Inch Touchscreen Monitor |
|
|
The Elo 1504L 15.6-inch touchscreen monitor delivers commercial-grade reliability, seamless touch performance, and a sleek, modern design built for business applications. Featuring Elo’s TouchPro PCAP technology, the edge-to-edge glass display supports up to 10 simultaneous touches, providing highly responsive and accurate interaction. Built with optical bonding for enhanced durability and an IP54-sealed design for protection against dust and spills, the Elo 1504L brings long-term performance in demanding environments. |
|
- Specifications
- Overview
- Accessories
- Support
- Warranty
| Model | Elo 1504L 15 Inch Touch Screen Display Elo ET1504L |
| Part Number(s) | Stand - E969493 No Stand - E969292 |
| Enclosure Color | Black |
| Touch Technology & Capacity | PCAP (Projected Capacitive) - 10 Touch |
| Diagonal Size | 15.6'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area (mm) | 13.55" x 7.62" / 344.16 mm x 193.59 mm |
| Resolution | 1920 x 1080 |
| Other Supported Resolutions | 640x480 60Hz 720x400 70Hz 800x500 60Hz 800x600 60Hz 1024x768 60Hz 1280x800 60Hz, 60Hz RB 1366x768 60Hz, 60Hz RB 1920x1080 60Hz 1920x1200 60Hz |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| Number of Colors | 16.7 million |
| Brightness (typical) | CD panel: 450 nits PCAP: 405 nits |
| Response Time-total (typical) | 25 msec |
| Contrast Ratio | 1000:1 |
| Touch Interface | USB |
| Surface Treatment | Anti-glare |
| On Screen Display | Accessible through touch OSD, and press Menu button to pop up touch OSD diagram. Controls (Touch Model): Menu, Power Controls (Non-touch Model): Two keys (one power key + 5 directional key) Settings: Brightness, Contrast, Aspect Ratio, Auto Scan, Sharpness, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults, Peripheral Port Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese Lockouts: OSD, Power |
| I/O Ports | 1x USB Type-C 1x USB Type-A 1x DisplayPort 1x HDMI 1x DC jack 4x Micro-USB Elo Edge Connect ports |
| Speakers | 2 x 2W (+/-10%) internal speakers |
| Video | USB Type-C Mini-DisplayPort HDMI Input Video Horizontal Sync frequency range: 30 – 80KHz Input Video Vertical Sync (frame rate) frequency range: 60Hz |
| Power | Power Delivery compatible via USB Type-C connector or DC Jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter) |
| Power Consumption (Typical) | ON (Default - 70% Brightness): 12.1W SLEEP: 1.0 W OFF: 0.25 W |
| Monitor Dimensions (without Stand) | 14.6" x 8.95" x 1.06" / 371 mm x 227.5 mm x 26.9 mm |
| Shipping Box Dimensions | With Stand: 17.76" x 13.46" x 8.66" / 451 mm x 342 mm x 220 mm Without Stand: 17.64" x 6.34" x 11.81" / 448 mm x 161 mm x 300 mm |
| Weight (Unpackaged) | With Stand: 6.39 lbs / 2.9 kg Without Stand: 3.74 lbs / 1.7 kg |
| Weight (Packaged) | With Stand: 12.33 lbs / 5.6 kg Without Stand: 8.37 lbs / 3.8 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity |
Operating: 20% to 80%;
Storage: 10% to 95% (38.7℃ max wet bulb temperature)
|
| MTBF | 50,000 hours demonstrated |
| Mounting Options | 75mm X 75mm rear-mount mounting interface See dimensional drawings for details. |
| Other Features | Energy Star 8.0 TUV Rhineland (Low Blue Light) Power collection function via DDCCI PD (power delivery) out via USB-C (18W Max) for Elo Pay 7" |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage - Elo P/N: E898247 5 year warranty coverage - Elo P/N: E898449 3 year warranty coverage + AUR - Elo P/N: E898648 4 year warranty coverage + AUR - Elo P/N: E894921 5 year warranty coverage + AUR - Elo P/N: E895125 |
| Regulatory approvals and declarations | Argentina AR certificate Canada cUL, IC China CCC Europe CE Korea, KCC Taiwan BSMI United Kingdom UKCA United States UL, FCC Japan VCCI, PSE International CB Australia RCM Mexico NOM RoHS, China RoHS, WEEE, REACH India BIS |
| Ingress Protection | IP54 |
| Impact Protection | IK08 |
| What's in the Box | Touchmonitor Quick Install Guide EU EEI Label 2x UK EEI Label 1.8m HDMI cable 1.8 m USB cable (USB Type-A to Type-C) Power brick 1.8m NA Power cable 1.8m EU Power cable |
| Optional Peripherals |
Magnetic Stripe Reader (MSR) – Elo P/N: E001002 |
| Stands, Mounts, Kits | Rear Facing display Pole Mount Kit – Elo P/N: E038989 Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077 Z20 Stand for 10'' & 15'' I-Series - Elo P/N: E809321 Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382 Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069 Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458 Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663 Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864 Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151 Power USB to USB-C/DC-IN (2.1 mm) cable – 1.8 m - Elo P/N: E214097 Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m - Elo P/N: E214282 mPOS Printer Stand (White) - Elo P/N: E353758 Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788 Wallaby™ POS Stand (Black) - Elo P/N: E949536 USB-C to USB-C Cable Kit – Elo P/N: E129019 DVI-D to HDMI Cable Kit – Elo P/N: E538507 North America Power Cable – C13 - Elo P/N: E593865 Australia Power Cable – C13 - Elo P/N: E594067 Europe Power Cable – C13 - Elo P/N: E594264 Korea Power Cable – C13 - Elo P/N: E594466 China Power Cable – C13 - Elo P/N: E594670 Taiwan Power Cable – C13 - Elo P/N: E594869 Japan Power Cable – C13 - Elo P/N: E793799 Elo Backpack® 4 (Value Model) - Elo P/N: E393754 Elo Backpack® 4 (Standard Model) - Elo P/N: E393359 Z10 POS Stand (75mm VESA) - Elo P/N: E767159 Wallaby Pro Merchant-facing Display Kit – Elo P/N: E801367 Small I/O Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-C – Elo P/N: E815044 |
Brilliant, optically-bonded TouchPro PCAP display
The Elo 1504L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 15” touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.
Create the perfect payment stack with the 15" touchscreen
Easily pair the 15-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7", the Elo 1504L offers the perfect compact touch display with the connectivity you need at the point of sale.
State of the art optical viewing
Designed with high quality optical bonding, anti-glare coverglass and low-blue light settings - the 1504L 15-inch touchscreen monitor brings the best-in-class solution for viewing comfort and clarity.
Connect accessories to the edge
Elo Edge Connect offers an expansive lineup of accessories that seamlessly attach to the edge of the display including - EMVs, barcode scanners, status lights, cameras, RFID, MSR, fingerprint scanner and more.
Navigate the OSD directly on the touchscreen
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Touch Thru Glass Enabled with PCAP
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Get peace of mind with EloCare
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.
Quality that is built to last
We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.
