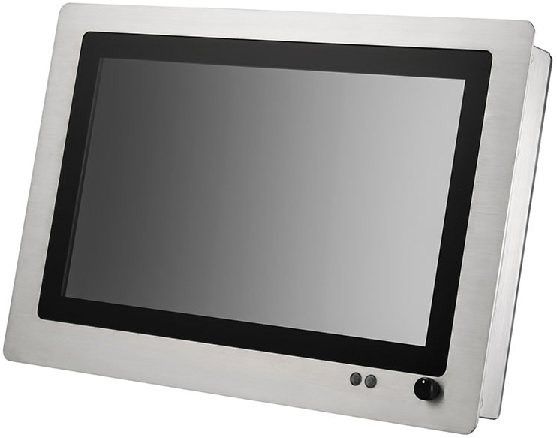

Xenarc 1589GFP 15.6 Inch Sunlight Readable Touchscreen

Xenarc 1589GFP 15.6 Inch Sunlight Readable Touchscreen
  • 15.6" Diagonal Screen Size
  • 1,000NIT Sunlight Readable with Long Life LED Backlight
  • Sunlight Readable – Ready for all environments
  • Waterproof/Dustproof– Built to Stringent IP69K Standards
  • UV Resistant - Great for outdoor installs
  • AG Touchscreen with Anti-Fog AR Underside Coating
  • Optically Enhanced for clarity and viewability
  • Multiple Inputs – HDMI, DisplayPort, and VGA Inputs
  • Automatic Dimming – Built in Ambient Light Sensor
  • Superior Image – Scalable resolution up to 1080P
  • Extended Temperature Range

Xenarc 1852CSH 18.5 Inch Sunlight Readable Touchscreen

Xenarc 1589GFP 15.6 Inch IP69K Sunlight Readable Touchscreen

The Xenarc 1589 series of 15.6” touchscreen displays is perhaps the most versatile and all-encompassing product in Xenarc Technologies’ line up of products.  This 16:9 1000 NIT High Bright Touchscreen is IP69K and IP66 / NEMA4X rated and includes an UV Resistant Projected Capacitive touchscreen, making it ideal for any harsh industrial and outdoor environments.  The IP69K ruggedization, allows the monitors to withstand close range, high temperature and high pressure spray downs for sanitization, and rigid SUS316 stainless steel enclosures that could withstand harsh detergents, acidic/alkaline disinfectants, and seawater.  These Xenarc displays will satisfy the stringent sanitation requirements of food processing, beverage production, pharmaceutical manufacturing, and chemical factories.  A wide temperature range allows these displays to operate at temperatures down to -22F (-30C) and withstand temperatures up to 185F (85C), making them perfect for food processing applications where refrigeration or freezing is a must, or in marine and outdoor applications where marine spray or sub-freezing temperatures and direct sun exposure may make other displays unusable.  Xenarc 1589GFP IP69K

  • Specifications
  • Description
  • Features
  • Package Contents
  • Support
Model Xenarc 1589GFP
Screen Size Diagonal 15.6" (16:9)
Physical Resolution 1920 (H)  x 1080 (V) Full HD
Supported Resolution 640 x 480 ~ 1920 x 1080
Brightness 1000 cd/m2
Contrast Ratio 1000:1
Viewing Angle 178° Horizontal, 178° Vertical
Response Time (Tr/Tf) 25 ms (Typ.)
Touch Screen Interface USB port
Operating Voltage Range DC 9V ~ 36V
Power Supply DC 12V
Power Consumption ≤ 23.5W
Operating Temperature -22°F ~ 185°F (-30°C ~ 85°C)
Storage Temperature -22°F ~ 185°F (-30°C ~ 85°C)
Weight (lb) 15.21 lbs
Vibration Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard
Shock Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard
MTBF (Mean-Time-Between-Failure) 55,000 hours (or 6.2 years of continuous 24 hours operation)
Dimension (mm) 448W x 297H x 58D
Warranty 3 Year Warranty
30 days No dead Pixel Guarantee

The Xenarc 1589 series of 15.6” touchscreen displays is perhaps the most versatile and all-encompassing product in Xenarc Technologies’ line up of products.  This 16:9 1000 NIT High Bright Touchscreen is IP69K and IP66 / NEMA4X rated and includes an UV Resistant Projected Capacitive touchscreen, making it ideal for any harsh industrial and outdoor environments.  The IP69K ruggedization, allows the monitors to withstand close range, high temperature and high pressure spray downs for sanitization, and rigid SUS316 stainless steel enclosures that could withstand harsh detergents, acidic/alkaline disinfectants, and seawater.  These Xenarc displays will satisfy the stringent sanitation requirements of food processing, beverage production, pharmaceutical manufacturing, and chemical factories.  A wide temperature range allows these displays to operate at temperatures down to -22F (-30C) and withstand temperatures up to 185F (85C), making them perfect for food processing applications where refrigeration or freezing is a must, or in marine and outdoor applications where marine spray or sub-freezing temperatures and direct sun exposure may make other displays unusable.  Xenarc 1589GFP IP69K

  • Transportation
  • System Integration
  • Point-of Sale
  • Data Monitoring
  • Broadcast & Production
  • IP69K High Temperature High Pressure Spray Down Protection (Whole Unit)
  • IP66 / NEMA4X Rated Water and Dust Resistance (Whole Unit)
  • Super Wide Operating Temperature range of -22°F ~ 185°F (-30°C ~ 85°C)
  • 1,000NIT Sunlight Readable with Long Life LED Backlight
  • Wide Viewing Angle IPS (In-Plane Switching) LCD Panel
  • Automatic Backlight Adjustment through Built-in Ambient Light Sensor
  • Manual Backlight Adjustment through Built-in VR Knob
  • Projected Capacitive Multi-Touch Touchscreen (USB)
  • UV Resistant for Outdoor Installs
  • Anti-Glare Touchscreen with Anti-Fog AR Underside Coating
  • Plug-N-Play with Windows 7 and up and Android devices (Downloadable drivers for other OS)
  • Multi-Monitor Touchscreen Support
  • HDMI Input x 1 (HDCP), DisplayPort Input x 1, VGA Input (15 pin D-SUB) x 1
  • 1920x1080 Native Resolution, 16x9 Aspect Ratio
  • Chip Monolithic Ceramic Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Vertical Image Flip
  • VESA 75x75mm and 100x100mm Mounting Holes
  • Panel Mountable with Included hardware
  • Ruggedized SUS316 Stainless Steel enclosure
  • Supports 9V DC ~ 36V DC
  • FCC, CE Certification
  • IK07 Impact Resistant
  • ROHS, REACH Compliant
  • 36 Month/3 Year Warranty
  • 30 Day No dead Pixel Guarantee
  • 5 Meter DC Power Lead with Optional AC Adaptor or Cigarette Lighter Car Adaptor
  • 1.8 Meter HDMI Cable
  • 1.8 Meter USB Cable
  • IP69K / IP66 Waterproof Rubber Cable Grommets for different thickness cables
  • Panel Mount Brackets

TWXN-1589GFP Data Sheet

TWXN-1589GFP User Manual
