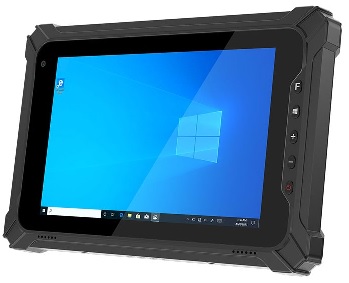

Xenarc RT86-PRO Water Resistant Rugged Tablet PC

Xenarc RT86-PRO Water Resistant Rugged Tablet PC
  • IP67 / NEMA4 Rated Water and Dust Resistance
  • Military Grade Ruggedized Enclosure, Drop / Vibration Resistant
  • Toughened Projected Capacitive Multi-Touch Touchscreen
  • 8 Inch 1920 x 1200 FHD IPS / AFFS Display
  • Dual Display Output with HDMI 1.4a mini and DisplayPort
  • 8.0MP Rear Camera and 5.0MP Front Camera
  • 2G/3G/4G LTE Cellular Support
  • 802.11 a/b/g/n/ac WiFi
  • Bluetooth 5.0 (BLE)
  • 24 Month / 2 Year Warranty
  • 30 Day No dead Pixel Guarantee

Xenarc Touch Screen Parts and Accessories

Xenarc RT86-PRO Water Resistant Rugged Tablet PC

The 8" Xenarc RT86-PRO Industrial-grade Rugged Windows Tablet PC - PRO Edition manufactured by Xenarc Technologies brings versatility and usability to our 8” line of industrial and commercial-grade tablet PC.  The Pro Edition have these enhancements over our standard RT86: 8GB of memory, 128GB of internal storage, and runs on Windows 11 Pro.  This ruggedized tablet computer is not only IP65 and NEMA4 rated for dust and water resistance, but it's Ruggedized Enclosure provides drop and vibration resistance.  This multi-functional tablet has one HDMI output and one USB-C port that supports video over USB-C, allowing connection to up to two external monitors or touchscreen monitors at the same time, making it a perfect companion to our line of rugged displays, with touchscreen or not.  It also incorporates 3G/4G LTE cellular support, 802.11 A/B/G/N/AC WiFi, and Bluetooth 5.0, making it perfect for almost any military, law-enforcement, automotive, industrial, and mobile telematic application.  The Xenarc RT86-PRO is powered by a swappable 5000mAh battery that provides hours and hours of usability before requiring recharge.
List View
Grid View
  • Specifications
  • Description
  • Features
  • Package Contents
  • Support
Model Xenarc RT86-PRO Rugged Water Resistant Tablet
Processor Intel Celeron Processor N5100 Qua-Core, up to 2.8GHz
Internal Memory 8GB RAM + 128GB ROM EMMC
External Memory MicroSD Card (Up to 512GB)
Operating System Windows 11 Pro
Display 8-Inch Industrial Grade 1920 x 1200 FHD IPS / AFFS LCD Display
Brightness 550 cd/m²
Touchscreen 5 point Multi-touch Capacitive, Anti-Salt / Anit-Fog, 9H Hardness, Anti-Glare Screen Protector
Cameras 8.0MP(AF) with Flash LED Primary Camera and 5.0MP Secondary Camera
SIM Card 1.8/3.3V SIM Card
Cellular Network Support 3G/4G - WCDMA(B2/4/5), LTE-FDD(B2/4/5/12/13/14/66/71)
Bluetooth BT5.0 (BLE)
Wi-Fi Dual-band (2.4GHz/5.8Ghz) single stream 802.11 a/b/g/n/ac
USB Port USB 3.0 x 1, USB-C x 1
Serial Por RS232 x 1
Navigation GPS+Glonass
Display Output HDMI 1.4a mini x 1, DisplayPort over USB-C
Data Interface USB Type-C 24Pin support OTG
Earphone Standard 3.5mm x 1
Power Charger USB Type-C
Battery 5000mAh / 7.6V
Operating Temperature -4°F ~ 140°F (-20°C ~ 60°C)
Storage Temperature -22°F ~ 158°F (-30°C ~ 70°C)
Electrostatic Discharge ± 8KV contact discharge, ± 10kV air discharge
Relative Humidity 95% Non-Condensing
Operating Altitude 4,500m (15,000 Feet) Max
Shake-proof 1-19Hz / 1.0mm; 19-200Hz / 1.0g
Dropproof MIL-STD-810G 1.22m drop
Water Resistant Class 5 (IEC 60529)
Dust Resistant Class 6 (IEC 60529)
MTBF (Mean Time Between Failures) > 55,000 Hours or > 6.2 Years of continuous operation; MTTR < 0.5 Hour
Dimension (mm) 236.7W x 155.7H x 20D
Weight (lb) 2.2
24 Month / 2 Year Warranty
30 days No dead Pixel Guarantee

The 8" Xenarc RT86-PRO Industrial-grade Rugged Windows Tablet PC - PRO Edition manufactured by Xenarc Technologies brings versatility and usability to our 8” line of industrial and commercial-grade tablet PC.  The Pro Edition have these enhancements over our standard RT86: 8GB of memory, 128GB of internal storage, and runs on Windows 11 Pro.  This ruggedized tablet computer is not only IP65 and NEMA4 rated for dust and water resistance, but it's Ruggedized Enclosure provides drop and vibration resistance.  This multi-functional tablet has one HDMI output and one USB-C port that supports video over USB-C, allowing connection to up to two external monitors or touchscreen monitors at the same time, making it a perfect companion to our line of rugged displays, with touchscreen or not.  It also incorporates 3G/4G LTE cellular support, 802.11 A/B/G/N/AC WiFi, and Bluetooth 5.0, making it perfect for almost any military, law-enforcement, automotive, industrial, and mobile telematic application.  The RT86-PRO is powered by a swappable 5000mAh battery that provides hours and hours of usability before requiring recharge.

Using the Xenarc RT86-PRO is a breeze.  The Xenarc RT86-PRO 8" Rugged Windows Tablet PC comes with a projected capacitive multi-touch touchscreen (PCAP).  The touch panel itself is ruggedized to prevent cracks or scratches.  Take pictures with the dual cameras (8MP rear, and 5MP front) or use the built in GPS sensor to allow location tracking.  The applicability of this unit in any situation is limitless.

Why do our products outlast others in extreme conditions? Why do our products have a wider temperature range and a wider voltage input range? It is because our mission is to offer our customers the best products for any situation. By utilizing high grade components, this display is perfect for industrial, in-car computing applications or any other applications where a small, durable, high brightness display is required.

  • IP65 / NEMA4 Rated Water and Dust Resistance
  • Military Grade Ruggedized Enclosure, Drop / Vibration Resistant
  • Toughened Projected Capacitive Multi-Touch Touchscreen
  • 8 Inch 1920 x 1200 FHD IPS / AFFS Display
  • Dual Display Output with HDMI 1.4a mini and DisplayPort over USB-C
  • 8.0MP Rear Camera and 5.0MP Front Camera
  • 2G/3G/4G LTE Cellular Support
  • 802.11 a/b/g/n/ac WiFi
  • Bluetooth 5.0 (BLE)
  • Built-in GPS: GPS+Glonass
  • Accelerometer, Orientation Sensor, Gravity Sensor, Linear Acceleration Sensor
  • Rotation Vector Sensor, Magnetic Field Sensor, Gyroscope Sensor
  • Long-life 5,000mAh Battery
  • FCC, CE, CCC Certification
  • ROHS, REACH, ECE R118-03 Compliant
  • 24 Month / 2 Year Warranty
  • 30 Day No dead Pixel Guarantee
  • AC Adaptor with USB-C Charging Cable
  • Hand Strap
