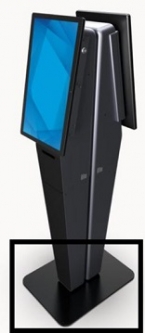

Elo Wallaby Pro Double Sided Floor Kiosk Stand
 |
Images |
Elo Wallaby Pro Double Sided Floor Kiosk Stand |
 |
|
The new Elo Wallaby Pro line of self-service stands can streamline installation of interactive experiences in high-traffic public environments. Create a unified approach to any customer experience in point of sale and self-service applications including self-order, endless aisle, price verification, loyalty programs, brand experience, patient check-in and more. |
|
- Specifications
- Overview
- Monitors
- Accessories
- Support
- Warranty
| Model | Elo Wallaby Pro Self Service Stands |
| Part Numbers | Wallaby Pro Double-sided Floor Stand - E989314 + E989314 + E989705 |
| Enclosure Color | Black/Silver |
| Compatibility |
Display Compatibility (portrait only) Compute Compatibility
Backpack 4 (Android)
ECMG4 (Windows 10) Intel NUC (max dimensions of 127 x 127 x 51mm with 94mm mounting hole pattern) 3rd Party PC’s (max dimensions of 127 x 127 x 51mm with 75mm or 100mm VESA pattern) EMV Cradle Compatibility EMV Cradle Compatibility: Verifone MX915 and M400 - E458992* Verifone MX925 - E352169* Verifone P400 - E990282 Ingenico RP457C (Bluetooth) – E710930 (Edge Connect - no bracket required) Ingenico RP457C (Audio Jack) – E586981 (Edge Connect - no bracket required) Ingenico LANE3000 - E990468 Ingenico LANE5000 - E996512 Ingenico LANE7000 - E990654 Ingenico iSC250 - E458992* Ingenico RP757 – E920661* Ingenico iPP350/iPP320/iPP315 - E458797* MagTek eDynamo – E375343 (Edge Connect - no bracket required) Square Terminal - E458992 +Note: not compatible with ECMG4
Printer Compatibility
Epson TM-T88
Epson M30 Epson EU-m30 Epson L90 Star TSP654 Star TSP100 Star mC-Print3 Bixolon SRP-350 |
| Optional Accessories | Wall mount kit for countertop stand - E990079 Assist button kit - E284334 Signage kit for floor stand with ceiling pole - E991255 Backer board kit for floor stand or countertop stand - E990854 Backer board kit for double-sided floor stand - E989705 Ceiling pole kit for floor stand - E989893 Android Expansion Module - E809509 Double-sided base for floor stand - E989705 |
| Dimensions | Countertop stand (E989127): 29.06" x 11.81" x 10.91" / 738 mm x 300 mm x 277 mm Floor stand (E989314 + E989512): 57.01" x 18.90" x 17.72" / 1448 mm x 480 mm x 450 mm Double-sided floor stand (E989314 + E989314 + E989705): 57.01" x 20.08" x 22.52" / 1448 mm x 510 mm x 572 mm Floor stand base (E989512): 18.90" x 17.72" x 3.86" / 480 mm x 450 mm x 98 mm Floor stand top (E989314): 55.98" x 9.80" x 7.24" / 1422 mm x 249 mm x 184 mm Double-sided base for floor stand (E989705): 22.52" x 20.08" x 3.86" / 572 mm x 510 mm x 98 mm Ceiling pole kit for floor stand (E989893): 130.04" x 5.39" x 4.80" / 3303 mm x 137 mm x 122 mm Signage kit for floor stand with ceiling pole (E991255): 47.24" x 15.75" x 0.24" / 1200 mm x 400 mm x 6 mm Backer board kit for floor stand or countertop stand (E990854): 49.21" x 11.81" x 0.24" / 1250 mm x 300 mm x 6 mm Backer board kit for double-sided floor stand (E990151): 49.21" x 11.81" x 0.24" / 1250 mm x 300 mm x 6 mm Wall mount stand (E989127 + E990079): 28.46" x 9.80" x 8.34" / 723 mm x 249 mm x 212 mm Assist button kit (E284334): 7.28" x 7.16" x 1.81" / 185 mm x 182 mm x 46 mm |
| Shipping Box Dimensions | Countertop Stand (E796783): 27.2” x 12.0” x 12.2” / 690 mm x 305 mm x 310 mm Countertop stand (E989127): 32.87" x 16.34" x 16.14" / 835 mm x 415 mm x 410 mm Floor stand base (E989512): 22.84" x 22.24" x 7.48" / 580 mm x 565 mm x 190 mm Floor stand top (E989314): 59.65" x 12.80" x 14.57" / 1515 mm x 325 mm x 370 mm Double-sided base for floor stand (E989705): 27.76" x 23.43" x 7.87" / 705 mm x 595 mm x 200 mm Ceiling pole kit for floor stand (E989893): 65.55" x 8.46" x 8.86" / 1665 mm x 215 mm x 225 mm Signage kit for floor stand with ceiling pole (E991255): 53.74" x 19.09" x 4.92" / 1365 mm x 485 mm x 125 mm Backer board kit for floor stand or countertop stand (E990854): 53.74" x 19.09" x 4.92" / 1365 mm x 485 mm x 125 mm Backer board kit for double-sided floor stand (E990151): 53.74" x 19.09" x 4.92" / 1365 mm x 485 mm x 125 mm Wall mount kit for countertop stand (E990079): 28.54" x 8.46" x 5.71" / 725 mm x 215 mm x 145 mm Assist button kit (E284334): 10.43" x 10.04" x 5.31" / 265 mm x 255 mm x 135 mm |
| Weight (Unpackaged) | Countertop stand (E989127): 40.79 lbs / 18.50 kg Floor stand (E989314 + E989512): 94.58 lbs / 42.90 kg Floor stand base (E989512): 32.85 lbs / 14.90 kg Floor stand top (E989314): 61.73 lbs / 28.00 kg Double-sided base for floor stand (E989705): 42.99 lbs / 19.50 kg Ceiling pole kit for floor stand (E989893): 11.90 lbs / 5.40 kg Signage kit for floor stand with ceiling pole (E991255): 11.46 lbs / 5.20 kg Backer board kit for floor stand or countertop stand (E990854): 9.26 lbs / 4.20 kg Backer board kit for double-sided floor stand (E990151): 7.28 lbs / 3.30kg Wall mount kit for countertop stand (E990079): 4.63 lbs / 2.10 kg Assist button kit (E284334): 0.41 lbs / 0.19 kg |
| Weight (Packaged) | Countertop stand (E989127): 47.40 lbs / 21.50 kg Floor stand base (E989512): 35.71 lbs / 16.20 kg Floor stand top (E989314): 69.45 lbs / 31.50 kg Double-sided base for floor stand (E989705): 46.05 lbs / 20.89 kg Ceiling pole kit for floor stand (E989893): 14.64 lbs / 6.64 kg Signage kit for floor stand with ceiling pole (E991255): 13.36 lbs / 6.06 kg Backer board kit for floor stand or countertop stand (E990854): 11.02 lbs / 5.00 kg Backer board kit for double-sided floor stand (E990151): 9.61 lbs / 4.36 kg Wall mount kit for countertop stand (E990079): 5.95 lbs / 2.70 kg Assist button kit (E284334): 1.07 lbs / 0.49 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F When using the Elo Computer Module (ECMG4) - Operating: 0°C to 35°C OR 32°F to 95°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 90% |
| ADA Compliant | Yes |
| What's in the Box | Countertop stand (E989127): 1x countertop stand 1x assembly instructions power cables - 1x 4.5M, C13 to NEMA 5-15P (NA) - 1x 5M, C13 to CEE 7/7 (EU) - 1x 5M, C13 to BS1363A (UK) - 3x 0.3m, C13 to C14 - 3x 0.3m, C5 to C14 - 1x 0.35m, IEC C14 for ECMG4 2x Wi-Fi extension cables 4x printer paper chutes 1x filler plate 1x ADA plate (refer to MS drawing for full details) Floor stand top (E989314) 1x floor stand top 1x assembly instructions power cables - 1x 4.5M, C13 to NEMA 5-15P (NA) - 1x 5M, C13 to CEE 7/7 (EU) - 1x 5M, C13 to BS1363A (UK) - 3x 0.3m, C13 to C14 - 3x 0.3m, C5 to C14 - 1x 0.35m, IEC C14 for ECMG4 2x Wi-Fi extension cables 4x printer paper chutes 1x filler plate 1x ADA plate (refer to MS drawing for full details) Floor stand base (E989512) 1x base plate 2x wheel assemblies 6x M5x6 wheel mounting screws 8x M5x10 socket head mounting screws 4x M5x10 flat head mounting screws (refer to MS drawing for full details) |
| Warranty | 2-year |
The Elo Wallaby Pro is changing the industry by making it easier than ever to configure interactive self service solutions.
Engineered with configurations to fit any space, the modular design is perfect for retail, restaurants, hospitality, healthcare and corporate environments.
Power your self service kiosk with the I-Series all-in-one or pair your choice of touchscreen monitor with a compute device.
Built purposefully with self-service in mind, the Wallaby self-service Stands offer the ability to securely add a printer and EMV Payment Device while offering the space you need for additional components – from a power supply to a network switch, the space can be used to fit your needs.
Self Service has never been easier
The Wallaby Pro is changing the industry by making it easier than ever to configure interactive self service solutions
Add a 22-, 24- or 27-inch touchscreen display
Easy access to key components
Connect Accessories to the edge
| Display Compatibility |
|
| 22" Android I-Series 4.0 | 22" Android I-Series 4 |
| 22" Windows I-Series 2.0 | 22" Windows I-Series 2 |
| 24" Elo 2402L Touchscreeen Monitor | 2402L |
| 24" Elo 2403LM Medical Touchscreen Monitot | 2403LM |
| 27" Elo 2702L Touchscreen Monitor | 2702L |
| 27" Elo 2703LM Medical Touchscreen Monitor | 2703LM |
| (Portrait Mode Only) |
| Compute Compatibility | |
| Backpack 4 (Android) | Backpack 4.0 (Android) |
| ECMG4 (Windows) | ECMG4 (Windows 10) |
| Intel NUC (max dimensions of 127 x 127 x 51mm with 94mm mounting hole pattern) | |
| 3rd Party PC’s (max dimensions of 127 x 127 x 51mm with 75mm or 100mm VESA pattern) | |
| EMV Cradle Compatibility | |
| Verifone MX915 and M400 | E458992* |
| Verifone MX925 | E352169* |
| Verifone P400 | E990282 |
| Ingenico RP457C (Bluetooth) | E710930 (Edge Connect - no bracket required) |
| Ingenico RP457C (Audio Jack) | E586981 (Edge Connect - no bracket required) |
| Ingenico LANE3000 | E990468 |
| Ingenico LANE5000 | E996512 |
| Ingenico LANE7000 | E990654 |
| Ingenico iSC250 | E458992* |
| Ingenico RP757 | E920661* |
| Ingenico iPP350/iPP320/iPP315 | E458797* |
| MagTek eDynamo | E375343 (Edge Connect - no bracket required) |
| Square Terminal | E458992* |
| *Note: not compatible with the ECMG4 | |
| Printer Compatibility | |
| Epson TM-T88 | Epson TM-T88 |
| Epson M30 | Epson M30 |
| Epson EU-m30 | Epson EU-m30 |
| Epson TM-L90II | Epson TM-L90II |
| Star TSP654 | Star TSP654 |
| Star TSP100 | Star TSP100 |
| Star mC-Print3 | Star mC-Print3 |
| Bixolon SRP-350 | Bixolon SRP-350 |
| Accessory | Part # |
| Wall mount kit for countertop stand | E990079 |
| Assist button kit | E284334 |
| Signage kit for floor stand with ceiling pole | E991255 |
| Backer board kit for floor stand or countertop stand | E990854 |
| Backer board kit for double-sided floor stand | E989705 |
| Ceiling pole kit for floor stand | E989893 |
| Android Expansion Module | E809509 |
| Double-sided base for floor stand | E989705 |
| Elo Edge Connect for Monitor | |
| Magnetic Stripe Reader (MSR) | E001002 |
| 2D Barcode Scanner | E926356 |
| Barcode Reader (BCR) | |
| NFC/RFID Reader | E673037 |
| Fingerprint Reader (FPR) | E001001 |
| Status light for I-Series 2.0 Standard Models | E466847 |
| Expansion Module - Long Cable Kit | E809509 |
| Wallaby 4 Outlet Power Strip | 7361K43 |
