Samsung KM24C All-in-One Touchscreen Kiosk

Self-service out of the box with Windows OS
Modular functionality to support any payment type
All-in-one solution with upgraded compatibility
Robust yet stable performance
Compact and modern design
Versatile solution for any scenario
Kiosk connection box and stand sold separately

Samsung KM24C All-in-One Touchscreen Kiosk

Boost every customer experience with the intuitive all-in-one payment and ordering system. Kiosk delivers more flexibility with every order for simplified yet personalized interactions.

7 Items

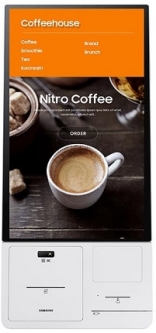

Samsung All in One Touchscreen Kiosk KM24C-3 LFD FHD (1920 X 1080) i3, with Samsung CY-KM24AP — Part #: KM24CBundle1 Samsung KM24C-3 LFD FHD (1920 X 1080) Windows Kiosk with Intel i3 **(Includes Samsung Connect Box CY-KM24AP)** $3,697.85

Samsung All in One Touchscreen Kiosk KM24C-C LFD FHD (1920 X 1080) Celeron, with Samsung CY-KM24AP — Part #: KM24CBundle2 Samsung KM24C-C LFD FHD (1920 X 1080) Windows Kiosk with Intel Celeron **(Includes Samsung Connect Box CY-KM24AP)** $3,088.62

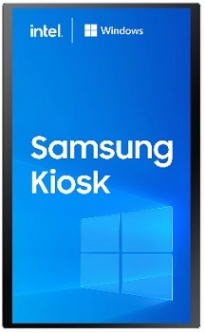

Samsung Touchscreen Kiosk KM24C-3 LFD FHD (1920 X 1080) Windows Kiosk i3 — Part #: KM24C-3 Samsung KM24C-3 LFD FHD (1920 X 1080) Windows Kiosk i3 **(Requires Samsung Connect Box CY-KM24AP)** $1,449.22

Samsung Touchscreen Kiosk KM24C-C LFD FHD (1920 X 1080) Windows Kiosk Celeron — Part #: KM24C-C Samsung KM24C-C LFD FHD (1920 X 1080) Windows Kiosk Celeron **(Requires Samsung Connect Box CY-KM24AP)** $966.15

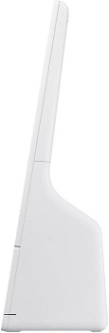

Samsung All-in-One Touchscreen Kiosk CY-KM24AP KM24A Connect Box, Receipt Printer, QR/Barcode Reader — Part #: CY-KM24AP Samsung CY-KM24AP KM24A Connect Box, Receipt Printer, QR/Barcode Reader $1,190.25

Part #: STN-KM24A Samsung STN-KM24A Floor Stand for KM24C $422.69

Part #: SKM24AW Chief SKM24AW Samsung Kiosk Wall Mount $386.57

Specifications
Overview
Accessories
Support
Warranty

Display
Diagonal Size	24"
Panel Type	ADS
Resolution	1,920 x 1,080
Pixel Pitch (HxV)	0.2745 x 0.2745 mm
Brightness	250 cd (Typ, w/o glass)
Contrast Ratio	1000:1 (without glass)
Viewing Angle	178/178
Response Time	14 ms
Color Gamut	72%
Brightness	250 (w/o glass)
H-Scanning Frequency	56 ~ 84.5 KHz
Maximum Pixel Frequency	148.5 MHz
V-Scanning Frequency	48 ~ 75 Hz
Contrast Ratio (Dynamic)	Mega
Operation Time Support	16/7
Connectivity
USB	1
Power
Power Consumption (On Mode)	88 W
Power COnsumption (Sleep Mode)	0.5 W
Touch
Touch	Yes
Touch Technology	Capacitive
Dimensions
Set Dimension (WxHxD)	547.9 x 334.4 x 48.8 mm
Package Dimensions (WxHxD)	620 x 419 x 122 mm
Weight
Set Weight	4.3 kg
Package Weight	5.7 kg
Operation Conditions
Temperature	0℃ ~ 40℃
Humidity	10 ~ 80%, non-condensing
Mechanical Specs
Bexel Width	UD: 17.9 / LR: 9.4
Frame Material	Non-Glossy
SoC
OS Version	Windows 10 IoT Enterprise
Flash Memory Size	256 GB
Certification
EMC	Class A FCC (USA) Part 15, Subpart B 　 KCC/EK (Korea) Tuner : KN32 / KN35 　 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 　 CCC(China) GB/T9254-2008 　 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) 　 C-Tick (Australia) AS/NZS CISPR32:2015 　 GOST(Russia/CIS) ROCT CISPR 24-2013 　 ROCT CISPR 22:2005
Safety	CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950

Self-service out of the box with Windows OS

Introducing Samsung Kiosk with Windows OS: a compact, eye-catching kiosk to provide reliable performance in any business location. With built-in Windows 10 IoT Enterprise OS, it supports enhanced compatibility with various 3rd party devices and services to integrate business operations.

Modular functionality to support any payment type

Boost every customer experience with the intuitive all-in-one payment and ordering system with no additional peripherals needed. Adopting a modular design, Samsung Kiosk offers a variety of customer payment options including credit card, barcode, QR code and NFC, along with a built-in printer.

All-in-one solution with upgraded compatibility

Samsung Kiosk operating on Windows is an all-in-one solution without the need for an external PC. With Windows 10 IoT Enterprise OS, it enables flexible connection with versatile devices and services, making it suitable for a wide array of business use cases.

Robust yet stable performance

Powered by 11th Gen Intel® Core™ Processor, Samsung Kiosk built on Windows OS features high performance computing power for flexible, stable, and enhanced capabilities that deliver amazing and robust experiences to users in any business environment.

Compact and modern design

Samsung Kiosk is composed of a single display part and connection box, along with an optional stand. The design enables clean and convenient cable management while the grey-white color and simple stand means the kiosk blends perfectly into any store interior with a stylish look.

Versatile solution for any scenario

For enhanced flexibility in any business environment, Samsung’s new kiosk offers three installation types – countertop, floor stand and wall-mounting – along with hidden cabling and power strip, with no external PC needed either for optimized space saving.

Shatterproof protection

Samsung understands that accidents happen. To protect students and educators, the Samsung Kiosk screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.

Accessory	Part #
P400 (Verifone) EMV Terminal Cradle
Lane 3000 (Ingenico) EMV Terminal Cradle
Lane 5000 (Ingenico) EMV Terminal Cradle
Floor Stand	STN-KM24A
Wall Mount Bracket	KMC-W
Chief, Wall Mount Bracket	SKM24AW

Samsung KM24C User Manual

Samsung KM24C Quick Start Guide
