Custom America CONNECT Self Service Kiosks
 |
|
Custom America CONNECT Self Service Kiosks |
|
|
Custom America CONNECT Self Service Kiosk is an innovative, multifunction stand that allows you to quickly configure a self-service kiosk for any indoor environment. Whether deployed on a countertop or as a floor standing kiosk, Custom America CONNECT Self Service Kiosk can be adapted for both attended and unattended applications. Select from an assortment of touch computers, printers, payment devices and scanners to create the kiosk solution best suited for your needs. |
|
- Specifications
- Overview
- Compatible Touch Computers
- Accessories
- Support
- Warranty
| Model | Custom America CONNECT Self Service Kiosk |
| Available Configurations | Countertop and Floor Stand |
| VESA Standard Mounts | VESA 75x75 and 100x100 |
| Display Size Compatibility | Suitable for Displays from 15" to 24" |
| Screen Orientation | Landscape or Portrait |
| Thermal Printer | Optional 89mm Receipt Printer |
| Barcode Reader Support | Yes, Optional |
| Pqyment/Credit Card Terminal Support | Yes, Optional |
| ADA and EAA Compliance | Configuration Dependent |
| Dimensions |

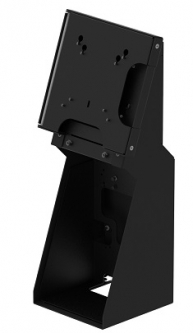

Countertop Version: 320 mm (L) x min. 488 mm - max. 582.5 mm (H) x 290 mm (W)

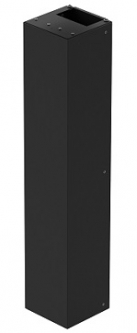

Floor Version: 450 mm (L) x min. 1317 mm - max. 1411.5 mm (H) x 420 mm (W)
|
| Weight | |
| Warranty |
Custom America CONNECT Self Service Kiosk is an innovative, multifunction stand that allows you to quickly configure a self-service kiosk for any indoor environment.
Whether deployed on a countertop or as a floor standing kiosk, Custom America CONNECT Self Service Kiosk can be adapted for both attended and unattended applications.
Select from an assortment of touch computers, printers, payment devices and scanners to create the kiosk solution best suited for your needs.
 |
 |
| Countertop | Floor Stand |
| Compatilbe Touchscreen Computers | |
| 21.5" Peak Andoid Touchscreen Computer | PEAK 21.5" Android PC POS |
| 21.5" Peak WIndows Touchscreen Computer | PEAK 21.5" Windows PC POS |
| 15.6" Peak Andoid Touchscreen Computer | PEAK 15.6" Android PC POS |
| 15.6" Ascent Touchscreen Computer | ASCENT 15.6" Windows PC POS |
| 15.6" Aragon Windows Touchscreen Computer | ARAGON 15.6" Windows PC POS |
| 15.6" Silk II Android Touchscreen Computer | SILK II 15.6" Android PC POS |
| Compatible Receipt Printers | |
| Printer K3 High Speed ETH USB RS232 | 911HM011100733 |
| Printer K3 Hight Speed Liner Free ETH USB RS232 | 911HM011200733 |
| Printer P3 ETH USB RS232 | 911MH010100733 |
| Printer P3 ETH USB RS232 | 911MX010200733 |
| Printer P3L 58/80MM ETH USB RS232 | 911MX010300733 |
| Optional Accessories | |
| Payment Terminal Support | 9C1PC010600010 |
| Cover Panel (for no printer version) | 9C1PC010700010 |
| Barcode Reader Support | 9C3PC010500010 |
Standard Warranty
