21.5" Ultra Slim Climate Controlled Outdoor Kiosk Touch Screen

21.5" Ultra Slim Climate Controlled Outdoor Kiosk Touch Screen Display
  • 21.5” Outdoor Climate Controlled Kiosk Touch Screen
  • Rainproof Projected Capacitive Touch
  • -40° to 60°C Wide Temperature LCD
  • 2500nits High Brightness
  • Vandal Resistant
  • Choice of Landscape or Portrait Style
  • For options click the ADD TO CART button

21.5" Ultra Slim Climate Controlled Outdoor Kiosk Touch Screen Display

21.5" Ultra Slim Climate Controlled Outdoor Kiosk Touch Screen Display
List View
Grid View

  • Specifications
  • Overview
  • Support
Display
Model Name ETPM-K21 / K21P
Size/Type 21.5"
Resolution (pixels) 1920 x 1080 Full HD
Response Time 6 m/sec
Brightness (cd/m2) 2500 nits Standard
Display Style Landscape or Portrait
Viewing Angle 176°H / 176°V
Aspect Ratio 16:9
Glass 6mm AR coated Tempered Glass
System
HDMI 1
USB 1 x opt for touch input
Multi-Touch Rainproof PCAP
Heating/Cooling Forced Air Fan Cooling + Heater
OS Support Windows 10/11 Pro, Android, Linux
Vandal Resistant Included
Locks with the enclosure
Scratch resistant paint
6mm vandal-proof tempered glass
No exposed cables, controls or switches
Color Black (Standard), White (Optional)
Power
Power Input AC100~240V
Mechanical
Color Black (Standard)  White (Optional)
Construction Aluminum Chassis
IP rating Front IP66
Mounting Wall mounting
Dimension (mm)
640 x 470 x 135
Net weight 50kg
Environment
Operating Temp. -30°~40°C
Storage Temp. -20°~80°C
Storage humidity 20 to 80% @40°C, Non condensing
Certification CE/FCC Class A
  • 21.5” Outdoor Climate Controlled Kiosk Touch Screen
  • Rainproof Projected Capacitive Touch
  • -40° to 60°C Wide Temperature LCD
  • 2500nits High Brightness
  • Vandal Resistant
  • Choice of Landscape or Portrait Style
  • For options click the ADD TO CART button

TWAP-ETPM-K21 Data Sheet

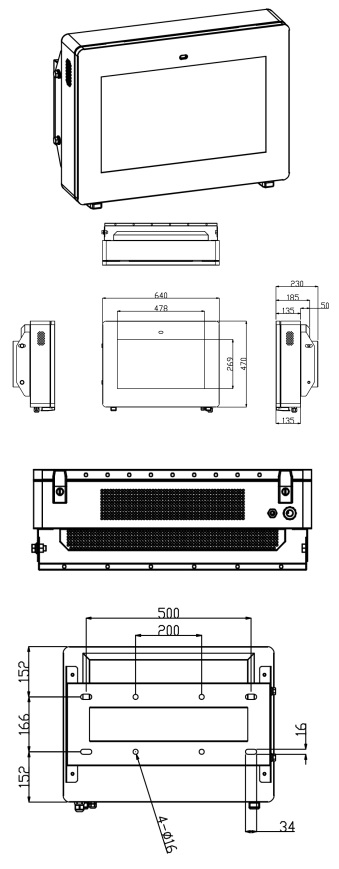

TWAP-ETPM-K21 Mechanical Drawing
