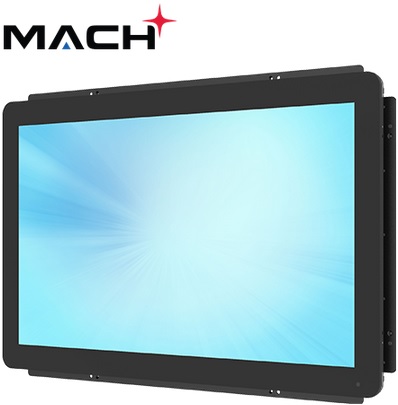

MicroTouch M1-215OD-A1 Outdoor Open Frame Touch Monitor

MicroTouch M1-215OD-A1 Outdoor Open Frame Touch Monitor
  • Size: 21.5” TFT LCD
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 1000:1
  • Aspect Ratio: 16:9
  • Brightness: 1500 nits
  • View Angle: H: 178˚, V: 178˚
  • Video Port: 1 x HDMI (HDMI 1.4/HDCP 1.4)
  • Warranty: 3 Year

MicroTouch M1-215OD-A1 Outdoor Open Frame Touch Monitor

MicroTouch M1-215OD-A1 Outdoor Open Frame Touch Monitor

Introducing the MicroTouch M1-215OD-A1 Outdoor Open Frame Touch Monitor. When visibility and reliability matter most, the MicroTouch M1-215OD-A1 rises to the challenge. This next-generation 21.5” outdoor touch display is built to perform—combining ultra-bright 1500-nit display with a rugged, optically bonded touchscreen that thrives in sunlight. From interactive kiosks to industrial-grade signage, it’s ready to meet the moment. With etched anti-glare technology that resists wear and improves visibility, you get a crystal-clear experience even in the toughest environments.

Whether you’re building for the smart city, the factory floor, or the great outdoors, the MicroTouch M1-215OD-A1 delivers durability with style—and performance you can count on.

  • Specifications
  • Overview
  • Accessories
  • Support
Model 21.5" MicroTouch M1-215OD-A1 Outdoor Open Frame
Touch Screen Projected Capacitive
Touch Points 10
Touch Screen Interface USB-HID (Type-C)
Surface Treatment Etched Anti-Glare, UV Protection, Optical Bonding
Surface Hardness Mohs 5.5 (>5) Hardness durable glass
Ambient Light Ambient Light, Proximity, Thermal
LCD Brightness 1500 Nits
I/O Ports
USB Ports 1 x USB-C (ALT mode for DP video/power acceptance), 1 x USB 3.1 Type A
Video Port 1 x HDMI (HDMI 1.4/HDCP 1.4)
Audio Port 1 x Audio-Output (3.5 mm Mini-Jack)
Power Input 1 x DC In 12V Jack Power Input
Remote Key RJ11
Physical Properties
Power Supply External AC Power Adapter (100VAC ~240VAC, 50/60Hz)
Speakers 2 x 2.5W
Orientation Portrait/Landscape
Housing Color Black
Construction Plastic, Glass, SECC Metal
Compliance IP66 – Front
Dimensions (W x H x D) mm 536 x 330 x 50.44 mm
Net Weight (kg) 8.8 kg
Gross Weight (kg) 12.6 kg
Carton (W x H x D) mm 640 x 425 x 170 mm
VESA 200 x 100 mm
Ball Drop IK10
Safety
Certifications CE, FCC, UL/CUL, NOM, RoHS, UKCA, CB
Environment
Operating Temperature -20˚C ~ 60˚C, 20% ~ 80% RH. Non-Condensing
Storage Temperature -20˚C ~ 60˚C, 20% ~ 90% RH. Non-Condensing
What's in the Box

Optional Peripheral
Warranty 3 year warranty

Introducing the MicroTouch M1-215OD-A1 Outdoor Open Frame Touch Monitor. When visibility and reliability matter most, the MicroTouch M1-215OD-A1 rises to the challenge. This next-generation 21.5” outdoor touch display is built to perform—combining ultra-bright 1500-nit display with a rugged, optically bonded touchscreen that thrives in sunlight. From interactive kiosks to industrial-grade signage, it’s ready to meet the moment. With etched anti-glare technology that resists wear and improves visibility, you get a crystal-clear experience even in the toughest environments.

  • Brilliant Visibility: 1500-nit brightness and optical bonding for exceptional clarity in any light
  • Built to Last: Engineered to endure heat, cold, moisture, and time
  • Smart Features: Ambient Light Sensor and UV protection adapt to real-world challenges
  • Versatile Connectivity: Flexible I/O options for seamless integration across use cases
Accessory Part #
 MicroTouch 21.5" Bracket Kit Included


MicroTouch M1-215OD-A1 Data Sheet

MicroTouch M1-215OD-A1 Schematic Drawing

MicroTouch Drivers
