MicroTouch DT-150P-A1 Desktop Touch Screen Display

MicroTouch DT-150P-A1 Desktop Touch Screen Display
  • 15" TFT LCD Touch Screen
  • Maximum Resolution: 1024 x 768
  • Brightness: 350 nits (P-CAP)
  • View Angle: H:160°, V:140°
  • Video Port: 1 x VGA, 1 x DP, 1 x HDMI
  • Stand Included
  • Web Camera and MSR credit card reader Sold Separately
  • Three year warranty

MicroTouch DT-150P-A1 Desktop Touch Screen Display

MicroTouch DT-150P-A1 Desktop Touch Screen Display

The ultra-modern, unique aesthetic and modular design of the MicroTouch DT-150P-A1 makes it a one-stop-shop solution with optional peripherals for added functionality. This 10-point touch, projected capacitive, solution is great for retail point-of-sale or point-of-service with add-on features like multi-language LCM screen and MSR reader coupled with a durable, diecast aluminum housing construction. The seamless bezel, advanced PCAP technology and rounded aesthetic bridges the gap between daily consumer devices and commercial devices, a step towards commonality and memorable end-user experience.
List View
Grid View

  • Specifications
  • Overview
  • Accessories
  • Support
Model 15" MicroTouch DT-150P-A1
Size 15" TFT LCD
Maximum Resolution 1024 x 768
Aspect Ratio 4:3
Contrast Ratio 800:1
Brightness 350 nits (P-CAP)
View Angle H:160°, V:160°
Touch LCD Display
Touch Screen Projected Capacitive
Touch Points 10
Touch Screen Interface USB-HID (Type B)
I/O Ports
Serial Port -
USB Port 1 x USB 2.0 (Type B) for Touch Interface (USB-HID)
Video Port 1 x VGA (DB15), 1 x DP, 1 x HDMI
Audio Port 1x Audio Line-in
Power Input 1 x 2.1 mm 12V DC Jack
Physical Properties
Power Supply 50W (12V, 4.16A) External Power Adaptor
Speaker 2 x 1.5W
Housing Color Silver
Construction Aluminum Die-casting, Plastic (ABS), Glass, SECC
Compliance IP65 Compliant, Rear IPX1
Dimensions (W x H x D) mm 356.1 x 321.9 x 201.4 mm
Net Weight (kg) 4.2 kg
Gross Weight (kg) 6.9 kg
Carton (W x H x D) 470 x 395 x 293 mm
VESA 100 x 100 mm
Ball Drop -
Safety
Certifications CE (Class A)/FCC (Class A)/LVD(62368)
Environment
Operating Temperature 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing
Storage Temperature -20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing
What's in the Box
  LCD Touch Monitor, Power Cord, DC Power Supply, Stand, USB Cable (A to B), VGA Cable, Audio Cable
Optional Peripheral
MSR MSR-150-A1
VFD with Camera VFDC-150-A1
VFD VFD-150-A1
LCM LCM-150-A1
Warranty 3 year warranty

The ultra-modern, unique aesthetic and modular design of the MicroTouch DT-150P-A1 makes it a one-stop-shop solution with optional peripherals for added functionality. This 10-point touch, projected capacitive, solution is great for retail point-of-sale or point-of-service with add-on features like multi-language LCM screen and MSR reader coupled with a durable, diecast aluminum housing construction. The seamless bezel, advanced PCAP technology and rounded aesthetic bridges the gap between daily consumer devices and commercial devices, a step towards commonality and memorable end-user experience.

Accessory Part #

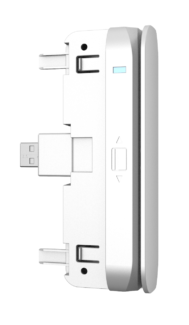

MSR MSR-150-A1
LCM LCM-150-A1

MicroTouch DT-150P-A1 Data Sheet

MicroTouch DT-150P-A1 Schematic Drawing

MicroTouch Drivers
