Elo Wallaby Countertop Self Service Stands
 |
|
|

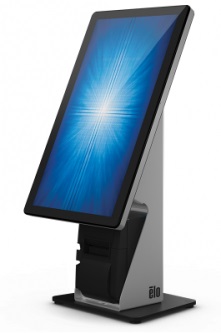

Elo Wallaby Portrait Mode
(Stand Only)
|
Elo Wallaby Landscape Mode
(Stand Only)
|
|
The new Elo Wallaby line of self-service stands can streamline installation of interactive experiences in high-traffic public environments. Create a unified approach to any customer experience in point of sale and self-service applications including self-order, endless aisle, price verification, loyalty programs, brand experience, patient check-in and more. With the Elo Wallaby stands, you can now "stand up" a 15-inch to 22-inch Windows or Android based self-service touchscreen solution with ease - complete with payment and printing capabilities. |
|
- Specifications
- Overview
- Monitors
- Accessories
- Support
- Warranty
| Model | Elo Wallaby Self Service Stands |
| Part Numbers | Wallaby Self-Service Countertop Stand - E796783 Wallaby Self-Service Floor Stand - E796965+ E797162 |
| Enclosure Color | Black/Silver |
| Compatibility | Display Compatibility 15" I-Series Android/Windows in Portrait and Landscape 22" I-Series Android/Windows in Portrait and Landscape EMV Cradle Compatibility EMV Cradle for Verifone MX915 - E798125 EMV Cradle for Ingenico iSC250 - E798125 EMV Cradle for Ingenico RP757 - E920661 EMV Cradle for Ingenico iPP320/350/315 - E699053 Ingenico ICMP - E200465 Verifone E355 - E201088 MagTek eDynamo - E375343 Ingenico RP457C (Bluetooth) - E710930 Ingenico RP457C (Audio Jack) - E586981 Printer Compatibility: Epson TM-T88 Epson M30 (with optional printer tray E797921) Star TSP100 Star TSP654 Bixolon SRP-350 |
| Expansion Module Options | Long Cable Android I-Series Expansion Module - E923781 |
| Dimensions | Countertop Stand (E796783): 11.6" x 9.1" x 17" / 295 mm x 230 mm x 431.96 mm Floor Stand (E796965+ E797162): 22.1" x 14.6" x 47" / 562.43 mm x 370 mm x 1192.8 mm |
| Shipping Box Dimensions | Countertop Stand (E796783): 27.2” x 12.0” x 12.2” / 690 mm x 305 mm x 310 mm Floor Stand Top (E796965): 50.55” x 12.44” x 12.44” / 1284 mm x 316 mm x 316 mm Floor Stand Base (E797162): 28.58” x 19.13” x 4.56” / 726 mm x 486 mm x 116 mm |
| Weight (Unpackaged) | Countertop Stand (E796783): 24.69 lbs / 11.2 kg Floor Stand Top (E796965): 40.78 lbs / 18.5 kg Floor Stand Base (E797162): 27.34 lbs / 12.4 kg |
| Weight (Packaged) | Countertop Stand (E796783): 28.17 lbs / 12.78 kg Floor Stand Top (E796965): 49.44 lbs / 20.61 kg Floor Stand Base (E797162): 30.64 lbs / 13.9 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 90% |
| Availability | US, Canada, EMEA, Japan, China |
| Regulatory approvals and declarations | UL, FCC (US) cUL, IC (Canada) CB (International standard) CE (Europe) RCM (Australia) VCCI (Japan) CCC (China) |
| What's in the Box | Countertop Stand (E796783): QIG Small black tie-wrap, x3 Screws for Countertop Stand (refer to MS drawing for details) 4-Port USB-A 3.0 Hub Floor Stand (E796965+ E797162): QIG Small black tie-wrap, x3 Hook and Loop Cable Tie with Buckle, x3 Screws for Floor Stand (refer to MS drawing for details) 4-Port USB-A 3.0 Hub |
| Warranty | 2 years |
The Wallaby line of self-service stands can streamline installation of interactive experiences in high-traffic public environments.
Create a unified approach to any customer experience in point of sale and self-service applications including self-order, endless aisle, price verification, loyalty programs, brand experience, patient check-in and more.
With the Wallaby stands, you can “stand up” a 15-inch or 22-inch self-service touchscreen solution with ease – complete with payment and printing capabilities.
 |
 |
Portrait Mode15" I-Series (Android)
15" I-Series (Windows)
22" I-Series (Android)
22" I-Series (Windows)
|
Landscape Mode22" I-Series (Android)
22" I-Series (Windows)
15" X-Series (Windows)
17" X-Series (Windows)
20" X-Series (Windows)
|
Built purposefully with self-service in mind, the Wallaby self-service Stands offer the ability to securely add a printer and EMV Payment Device while offering the space you need for additional components – from a power supply to a network switch, the space can be used to fit your needs.
| Potrait Monitors |
|
| 15" I-Series (Android) | |
| 15" I-Series (Windows) | |
| 22" I-Series (Android) | |
| 22" I-Series (Windows | |
| Landscape Monitors | |
| 15" X-Series (Windows) | |
| 17" X-Series (Windows) | |
| 20" X-Series (Windows) | |
| 22" I-Series (Android) | |
| 22" I-Series (Windows) |
| EMV Cradle Compatibility | |
| EMV Cradle for Verifone MX915 | E458992 |
| EMV Cradle for Ingenico iSC250 | E458992 |
| EMV Cradle for Ingenico RP757 | E920661 |
| EMV Cradle for Ingenico iPP320/350/315 | E458797 |
| Ingenico ICMP | E200465 |
| Verifone E355 | E201088 |
| MagTek eDynamo | E375343 |
| Ingenico RP457C (Bluetooth) | E710930 |
| Ingenico RP457C (Audio Jack) | E586981 |
| Printer Compatibility | |
| Epson TM-T88 | Epson TM-T88 |
| Epson M30 (with optional printer tray E797921) | Epson M30 |
| Star TSP654 | Star TSP654 |
| Bixolon SRP-350 | Bixolon SRP-350 |
| Accessory | Part # |
| EMV Cradle for Verifone MX915 & Ingenico iSC250 | E798125 |
| EMV Cradle for Ingenico RP757 | E920661 |
| EMV Cradle for Ingenico iPP320/315 | E458797 |
| EMV Cradle for Ingenico ICMP | E200465 |
| EMV Cradle for Ingenico E355 | E201088 |
| EMV Cradle for MagTek eDynamo | E375343 |
| EMV Cradle for Ingenico RP457c (BT USB) | E710930 |
| EMV Cradle for Ingenico RP457c (BT, USB, Audio) | E586981 |
| Magnetic Stripe Reader (MSR) | E001002 |
| 2D Barcode Scanner | E926356 |
| Barcode Reader (BCR) | E245047 |
| NFC/RFID Reader | E673037 |
| Fingerprint Reader (FPR) | E001001 |
| Status light for I-Series 2.0 Standard Models | E466847 |
| Expansion Module - Long Cable Kit | E923781 |
| Wallaby 4 Outlet Power Strip | E765397 |
Elo Wallaby Self-Service Stand Spec Sheet
Elo Wallaby Self-Service Stand Dimensional Drawing
Elo Wallaby Self Service Stand Quick Install Guide
