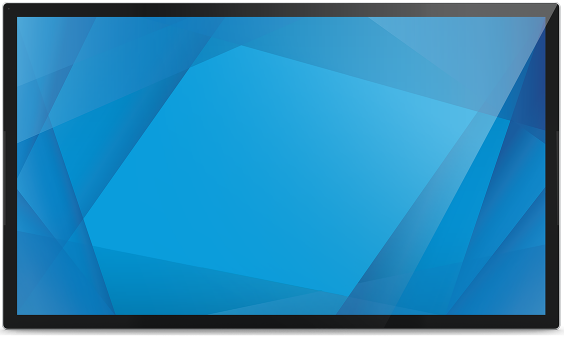

Elo 5053L 4K Interactive Touch Screen Display
 |
|
Elo 5053L 4K Interactive Touch Screen Display |
|
|
The Elo 5053L 50-inch 4K touch screen monitor provides a brilliant canvas for adding interactivity to any environment. Perfect for everything from endless aisle and brand experiences to menu boards, collaborative meetings and dashboarding, the 5053L digital signage display offers a sleek, slim design built to withstand the rigors of continuous commercial use. And with Elo’s computer modules, you can easily turn the display into a powerful, all-in-one, life-size 50-inch tablet. Available with Elo’s industry leading TouchPro PCAP technology enabling up to 40 touches or Infrared with up to 20 touches, Elo’s 5053L delivers fast and extremely sensitive response time and anti-friction glass to minimize heat as fingertips drag across the screen. Elo’s TouchPro PCAP, available with anti-friction or anti-glare glass, also offers touch thru capability, allowing the 50” interactive display to be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics. |
|
- Specifications
- Overview
- Accessories
- Support
- Warranty
| Model | Elo 5053 4K Interactive Touch Display ET5053L |
| Part Number(s) | TouchPro PCAP (clear with anti-friction) - E666042 TouchPro PCAP (anti-glare) - E665859 Infrared (clear with anti-friction) - E666224 |
| Enclosure Color | Black |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability Infrared - 20 Touch |
| Touch Thru | TouchPro PCAP supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm |
| Touch Interface | USB-C |
| Diagonal Size | 50'' / 1270 mm diagonal, Active matrix TFT LCD (LED) |
| Active Area (mm) | 43.14" x 24.27" / 1095.84 mm x 616.41 mm |
| Aspect Ratio | 16:9 |
| Resolution | 3840 x 2160 @ 60hz |
| Other Supported Resolutions | 640 x 480 @ 60Hz 800 x 600 @ 56/60Hz 1024 x 768 @ 60Hz 1280 x 720 @ 50/60Hz 1280 x 960 @ 60Hz 1280 x 1024 @ 60Hz 1920 x 1080 @ 60Hz 2560 x 1440 @ 60Hz 2560 x 1600 @ 60Hz 3840 x 2160 @ 30/60Hz |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| Number of Colors | 8-bit + FRC (1.07 billion) |
| Brightness (typical) | LCD Panel: 500 nits PCAP: 430 nits IR: 450 nits |
| Response Time-total (typical) | 9.5 msec |
| Contrast Ratio | 4000:1 |
| On Screen Display | Let’s Get Started: Language Selection, Time Setting, Time Zone Video Source Select: HDMI-1, HDMI-2, DisplayPort, USB-C, Internal-PC DP, Internal-PC HDMI Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio can be selected Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range are available in this menu. Audio Settings: Audio Input, Audio Output, Mute, Volume selection are available here. Power: Power Loss Behavior, Power Lock, Energy Saving Mode, Power Status Light options are available here Time: Time Set, On/Off Schedule OSD Settings: Recall Defaults, OSD Timer, OSD Language, OSD Lock and OSD Portrait Rotation, Touch Switch, Tabletop Information: Monitor, Temperature, Help and Support are available here See user manual for full details. |
| I/O Ports | HDMI 2.0 x2 USB-C (for Touch and video) RJ45 (for optional OSD remote) DisplayPort 1.4 3.5mm TRS jack (for RS232/MDC) 3.5mm Audio Headphones out Elo Edge Connect Micro USB 2.0 x4 |
| Control Buttons | Power Video Source Selection On Screen Display |
| Video | 2x HDCP-capable HDMI on Type A connector DisplayPort 1.4 connector USB-C connector Input Video Horizontal Sync frequency range: FHD: 30 – 135 KHz Input Video Vertical Sync (frame rate) frequency range: 24 - 64 Hz |
| Headphone output Connector | 3.5 mm TRS jack |
| Speakers | 2 x 8 W stereo speakers |
| Power | Input connector (power): IEC 60320-C13 Input signal specifications (power): 100-240VAC 50/60Hz |
| Maximum Operating Time | 24 hours/day |
| Power Consumption (Typical) | Monitor + AC/DC adapter: Monitor + AC/DC adapter: ON: 99W SLEEP: 1.8W OFF: 0.28W Monitor with ECMG4 + AC/DC adapter: ON: 116W SLEEP: 8.7W |
| Dimensions |
TouchPro PCAP: 45.75" x 26.88" x 2.44" / 1162.1 mm x 682.7 mm x 62.0 mm
IR: 45.75" x 26.88" x 2.83" / 1162.1 mm x 682.7 mm x 71.8 mm |
| Shipping Box Dimensions | 51.6" x 7.4" x 37.0" / 1310 mm x 187 mm x 940 mm |
| Weight (Unpackaged) | TouchPro PCAP: With ECMG4: 61.42 lbs / 27.86 Kg Without ECMG4: 56.79 lbs / 25.76 Kg IR: With ECMG4: 61.62 lbs / 27.95 Kg Without ECMG4: 56.99 lbs / 25.85 Kg |
| Weight (Packaged) | TouchPro PCAP: Without ECMG4: 69.84 lbs / 31.68 Kg IR: Without ECMG4: 71.1 lbs / 32.25 Kg |
| Operating Temperature | Portrait/Landscape Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F Table top Mode: 0° C to 35° C / 32°F to 95°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80% Storage: 10% to 95% |
| Mounting Options |
400mm x 400mm VESA 4-hole mounting interface on rear of unit
VESA 400 x 400mm |
| MTBF | 50,000 hours demonstrated |
| Warranty | 3-year with AUR included |
| Extended Warranty Options | 4 year warranty coverage + AUR - Elo P/N: E740135 5 year warranty coverage + AUR - Elo P/N: E740330 3 year warranty coverage + OSE - Elo P/N: E740527 4 year warranty coverage + OSE - Elo P/N: E740728 5 year warranty coverage + OSE - Elo P/N: E740918 |
| Regulatory approvals and declarations | |
| Energy Star | 8.0 |
| Other Features | Ambient Light Sensor - changes panel color to match ambient light, Auto Wake |
| What's in the Box |
Quick Install Guide |
| IDS Optional Accessories |
Temperature Sensor Pro – Elo P/N: E534879 |
The Elo 5053L 50-inch 4K touch screen monitor provides a brilliant canvas for adding interactivity to any environment. Perfect for everything from endless aisle and brand experiences to menu boards, collaborative meetings and dashboarding, the 5053L digital signage display offers a sleek, slim design built to withstand the rigors of continuous commercial use. And with Elo’s computer modules, you can easily turn the display into a powerful, all-in-one, life-size 50-inch tablet.
Available with Elo’s industry leading TouchPro PCAP technology enabling up to 40 touches or Infrared with up to 20 touches, Elo’s 5053L delivers fast and extremely sensitive response time and anti-friction glass to minimize heat as fingertips drag across the screen. Elo’s TouchPro PCAP, available with anti-friction or anti-glare glass, also offers touch thru capability, allowing the 50” interactive display to be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Collaboration for All Environments
Purpose-built to make collaboration easy – simply add the Huddle Kit with the 50" Interactive Display to enable seamless meetings and heightened teamwork with the effectiveness of an in person meeting. Start driving concepts and innovation beyond what a phone call, projector or whiteboard and dry erase marker once did.
Mudolar & Ready to Configure
The 5053L digital signage display offers a flexible design that can be easily configured to fit any use with Elo Edge Connect™ compatibility. Choose from a variety of accessories including payment devices, cameras, barcode readers and many others - configuration is up to you and can be easily changed at any time.
Touch Thru Glass Enabled with PCAP
Our TouchPro PCAP technology supports touch thru functionality for installations requiring a protective layer. Whether you want to flush mount the 50-inch touch screen monitor or fully encase it behind glass, our robust PCAP products are purpose-built for durability.
Add Windows Computing Power with Ease
The commercial-grade computer module transforms Elo's 50" touch screen monitor into a powerful, all-in-one, touch computer platform. Running Intel® Core™ 7th-Generation CPUs and enhanced graphics engine, the ECMG4s make field installation and maintenance easy with no external cables required.
Android - Scalability Simplified
With the Elo Backpack®, an Android-powered compute engine, you can transform the Elo 50" touch screen into a scalable and powerful media platform. Powered by EloView, content-delivery and remote-management of your entire network has never been easier. The low-power, solid-state, fan-less computing solution offers everything needed in an affordable, compact design.
 |
 |
 |
| Elo IDS Computer Modules | EloPOS Pack Computer Module | Elo Backpack 4.0 |
| Elo Computer Module | Part # |
| ECMG4-i5-7500 8GB RAM, 256GB SSD, No OS | E227895 |
| ECMG4-i5-7500 8GB RAM, 256GB SSD, Windows 10 (LTSC) | E228087 |
| ECMG4-i5-7500 8GB RAM, 256GB SSD, Windows 10 (CBB) | E725044 |
| ECMG4-i5-7500 8GB RAM, 256GB SSD, Windows 10 (LTSC) Montage Software | E898841 |
| EloPOS Pack Win 10, G4900T, 4GB RAM, 128GB SSD | E943670 |
| EloPOS Pack Win 10, G4900T, 8GB RAM, 128GB SSD | E923382 |
| EloPOS Pack Win 10, i3-9100TE, 8GB RAM, 128GB SSD | E944068 |
| EloPOS Pack Win 10, i5-9500TE, 8GB RAM, 128GB SSD | E945053 |
| EloPOS Pack Win 10, i5-9500TE, 8GB RAM, 256GB SSD | E102709 |
| EloPOS Pack Win 10, i5-9500TE, 16GB RAM, 256GB SSD | E981371 |
| EloPOS Pack Win 10, i5-9500TE, 32GB RAM, 256GB SSD | E496697 |
| EloPOS Pack No OS, G4900T, 4GB RAM, 128GB SSD | E943471 |
| EloPOS Pack No OS, G4900T, 8GB RAM, 128GB SSD | E930351 |
| EloPOS Pack No OS, i3-9100TE, 8GB RAM, 128GB SSD | E943864 |
| EloPOS Pack No OS, i3-9100TE, 16GB RAM, 128GB SSD | E948191 |
| EloPOS Pack No OS, i5-9500TE, 8GB RAM, 128GB SSD | E944853 |
| EloPOS Pack No OS, i5-9500TE, 8GB RAM, 512GB SSD | E945259 |
| EloPOS Pack No OS, i5-9500TE, 16GB RAM, 128GB SSD | E948397 |
| EloPOS Pack No OS, i5-9500TE, 32GB RAM, 256GB SSD | E511521 |
| EloPOS Pack No OS, i7-9700TE, 32GB RAM, 256GB SSD | E511713 |
| Android Backpack 4.0 Value Model | E393754 |
| Android Backpack 4.0 Standard Model | E393359 |
| Optional Peripherals |
Part # |
| Barcode Reader | E093433 |
| Magnetic Stripe Reader | E001002 |
| NFC/RFID Reader | E001004 |
| Fingerprint Reader (FPR) | E001001 |
| Wired OSD Remote | E483757 |
| Passive Stylus | E727568 |
| Active PCAP Stylus | E216215 |
| Replacement Cable Kit | E283066 |
| OPS Adaptor | E742371 |
| Wall Mount Kit | E721949 |
| Elo Conference Camera | E277819 |
