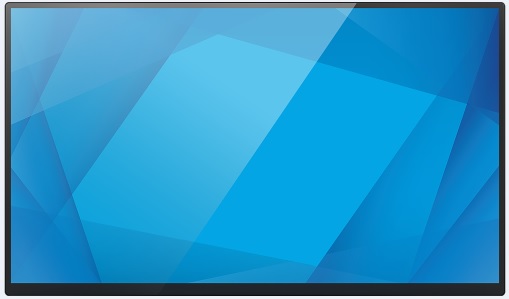

Elo 2410L Monitor (Non Touch)
|
|
|
Elo 2410L Monitor (Non Touch) |
|
|
The Elo 2410L 24-inch Monitor delivers the superior quality Elo is known for in a non-touch display. Designed for durability, the Elo 24-inch monitor features anti-glare edge-to-edge glass with IK06 impact resistance, enhanced ESD performance and a ventless back and cable cover design to help reduce foreign contaminant ingress. From digital signage and kitchen display systems to dashboards, medical carts and production line monitors ,the 2410L monitor provides a reliable, cost-effective display in a thin, compact form factor. |
|
- Specifications
- Overview
- Accessories
- Support
| Model | Elo 2410L 25 Inch Non Touch Monitor | |
| Part Number(s) | E448547 | |
| Enclosure Color | Black | |
| Touch Technology and Capacity | Non-Touch | |
| Diagonal Size | 23.8'' diagonal, Active matrix TFT LCD (LED) | |
| Aspect Ratio | 16:9 | |
| Active Area (mm) | 18.74" 20.75” x 11.67” / 527.04 mm x 296.46 mm 10.54" / 476 mm x 268 mm | |
| Resolution | 1920 x 1080 @ 60Hz | |
| Other Supported Resolutions | 640x480 60Hz, 640x400 70Hz 720x400 70Hz 800x600 56, 60Hz 1024x768 60Hz 1280x720 50, 60Hz 1280x800 60Hz 1280x1024 60Hz 1366x768 60Hz, 60Hz RB 1440x900 60Hz, 60Hz RB 1680x1050 60Hz, 60Hz RB 1920x1080 50Hz, 60Hz |
|
| Number of Colors | 8-bit (16.7 million) | |
| Brightness (typical) | LCD panel: 250 nits With AG screen: 220 nits |
|
| Response Time-total (typical) | 14 msec | |
| Contrast Ratio | 1300:1 | |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total | |
| Surface Treatment | Anti-glare | |
| On Screen Display | The unit has on-screen display (OSD) buttons on the back Controls: Menu (Select), Down (Minus), Up (Plus), Source (Exit), Power Settings: Brightness, Contrast, Eco Mode, Clock, Phase, H. Position, V. Position, Image Ratio, Color Temperature, OSD H. Position, OSD V. Position, OSD Timeout, OSD Language, Input Select, Reset, Information, Auto adjust, Volume, Video Source (triggered by the hotkeys) Languages: English, French, Spanish, Simplified Chinese, Traditional Chinese, Korean, Russian, Portuguese. Japanese |
|
| Audio | Audio in Audio out |
|
| Speakers | Two x 2W internal speakers | |
| Video | HDMI V1.4 Type A receptacle for HDMI input Analog VGA on Female DB-15 (DE-15) connector DisplayPort V1.2 - Supports later versions of Display Port video input Input Video Horizontal Sync frequency range: 30 – 82KHz Input Video Vertical Sync (frame rate) frequency range: 50 – 75Hz |
|
| Power | AC power input connector (IEC 60320 C6) AC input voltage range: 100-240VAC, 50/60Hz |
|
| Power Consumption (Typical) | ON (Default - 90% Brightness): 17W ON (Typical - 100% Brightness): 18.5W SLEEP (monitor + adapter): 0.5W OFF (monitor + adapter): 0.3W |
|
| Monitor Dimensions (Without Stand) | 21.37" x 12.57" x 1.69" / 542.68 mm x 319.38 mm x 42.8 mm | |
| Shipping Box Dimensions | 27.17" x 16.54" x 5.12" / 690 mm x 420 mm x 130 mm | |
| Weight (Unpackaged) | 7.94 lbs / 3.60 kg | |
| Weight (Packaged) | 12.43 lbs / 5.64 kg | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F | |
| Storage Temperature | 20°C to 50°C / -4°F to 122°F | |
| Humidity | Operating: 20% to 80% Storage: 5% to 95% |
|
| MTBF | 50,000 hours demonstrated | |
| Mounting Options | VESA 4-hole 100mm mounting interface on rear of unit | |
| Warranty | 3-year | |
| Regulatory approvals and declarations | Australia RCM Canada cUL, IC China CCC Europe CE, TUV United Kingdom UKCA Japan VCCI Korea KCC Taiwán BSMI United States UL, FCC International CB RoHS, China RoHS, WEEE |
|
| Compliance | Energy Star 8.0 GLI 10 kV air / 8 kV contact ESD compliant UL62368 ball-drop compliant IK06 impact compliant |
|
| What's in the Box | Touchmonitor HDMI cable Quick Install Guide EEI Label 4 x VESA screws NA Power Cord |
|
| Stands, Mounts & Kits | Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088 Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356 Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382 Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151 Elo Stand 2402/3-2702/3 - Black (100 mm VESA) - Elo P/N: E509844 Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693 Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260 Wallaby™ Pro countertop stand – Elo P/N: E989127 Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512 Wallaby™ Pro double-sided floor stand – Elo P/N: E989314 + E989314 + E989705 |
|
- Non Touch Monitor
- Anti-Glare Edge-to-Edge Glass
- IK06 Impact Resistant
- Ventless Back & Cable Cover Design
- 3-Year Warranty
The Elo 2410L 24-inch Monitor delivers the superior quality Elo is known for in a non-touch display. Designed for durability, the Elo 24-inch monitor features anti-glare edge-to-edge glass with IK06 impact resistance, enhanced ESD performance and a ventless back and cable cover design to help reduce foreign contaminant ingress. From digital signage and kitchen display systems to dashboards, medical carts and production line monitors ,the 2410L monitor provides a reliable, cost-effective display in a thin, compact form factor.
| Stands, Mounts & Kits | |
| Wall Mount Kit (75mm or 100mm VESA) | E143088 |
| Tabletop Stand for 22'' I-Series (100mm VESA) | E044356 |
| Shelf Mount Bracket (75mm or 100mm VESA) | E043382 |
| Pole Mount Bracket (75mm or 100mm VESA) | E045151 |
| Elo Stand 2402/3-2702/3 - Black (100 mm VESA) | E509844 |
| Slim Self-Service Countertop Stand (75mm or 100mm VESA) | E514693 |
| Slim Self-Service Floor Stand (75mm or 100mm VESA) | E514881 + E515260 |
| Wallaby™ Pro countertop stand | E989127 |
| Wallaby™ Pro floor stand | E989314 + E989512 |
| Wallaby™ Pro double-sided floor stand | E989314 + E989314 + E989705 |
