19 Inch TWAP-1196OPD Industrial Touch Screen Monitor

19 Inch TWAP-1196OPD Industrial Touch Screen Monitor

19 Inch TWAP-1196OPD Industrial Touch Screen Monitor
  • 19" SVGA Color TFT Touch Display
  • Heavy-duty steel chassis

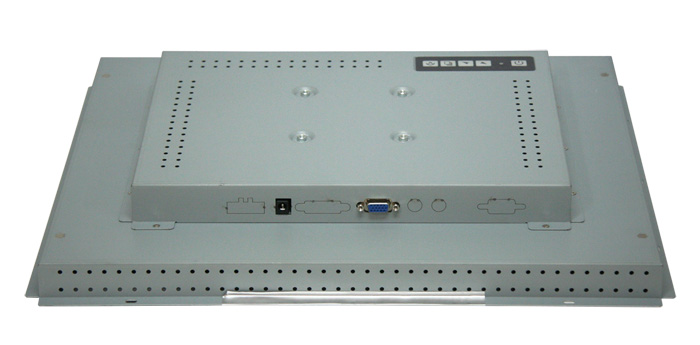

  • OSD Menu controls on the back side
  • Resistive Touch Screen
  • DVI Video or S-Video input (Optional)
  • Auto recognition of input signal
  • VESA 75 mm Wall Mount

19 Inch TWAP-1196OPD Industrial Touch Screen Monitor



  • Specifications
  • Overview
  • Support
Product Name
 TWAP-1196OPD
Display Size 19" Diagonal -Color Active Matrix TFT Panel
Resolution / Colors 1280 (W) x 1024 (H) pixels  262K Colors
Brightness 250 Nits cd/m²
Aspect Ratio 4:3
Backlight 50,000 hours
Touch Screen Resistive Analog Antiglare Touch Screen
Viewing Angle 160° Horizontal,  170° Vertically
I/O Connectors 1xDC power input, 1xVGA, optional:DVI,
S-Video, RCA, Touch Screen (RS-232 or USB)
Environment
Operating Temperature 0°~50° C (32°~122° F)
Storage Temperature -20°~60° C (-4°~140° F)
Relative Humidity 10~90% @40° C Non-condensing, without touch screen
Vibration / Shock 1G peak, 5~500 Hz (Random)
15G peak acceleration (11 msec. duration)
Ratings / Certifications NEMA 4, IP 65 Front Bezel
CE and FCC class A
Power Input DC 12V, optional DC 11~28V
Control Functions OSD Buttons for Menus on back side
Power
Input DC 12V (AC adapter and cord included), optional DC 11~28V
Power Consumption 27.5 watts at 12V.
Construction

  Steel Metal Chassis Case
Mounting Method Wall Mount Capable VESA 75 mm
Dimensions 17  x 13.11 x  2.32   inches
432 (W) x 333 (H) x 59 (D) mm
Weight 6.6 lbs.   (3 Kgs)
Warranty 1 Year

  • 19" SVGA Color TFT Touch Display
  • Heavy-duty steel chassis
  • OSD Menu controls on the back side
  • Resistive Touch Screen
  • DVI Video or S-Video input (Optional)
  • Auto recognition of input signal
  • VESA 75 mm Wall Mount
