19 Inch TWAP-1194ADP Industrial Touch Screen Monitor

19 Inch TWAP-1194ADP Industrial Touch Screen Monitor
  • 19” TFT LCD Resistive / Projected Capacitive Touch
  • Front Panel IP66
  • Aluminum Bezel with OSD Keypad on front
  • 400 nits/1000 nits Sun Light Readable (optional)

Mounting Instructions

19 Inch TWAP-1194ADP Industrial Touch Screen Monitor

19 Inch TWAP-1194ADP Industrial Touch Screen Monitor

  • Specifications
  • Overview
  • Support
Model Name TWAP-1194ADP
Size/Type 19" TFT
Resolution (pixels) 1280 x 1024
Number of Colors 16.7M
Brightness (cd/m2) 400/1000 (optional)
Backlight lifetime 50,000 hrs
Viewing Angle 178°H / 160°V
System
VGA 1
DVI 1
HDMI 1
OSD Control 5 Keys on Front
Speaker 2 x 2 Watts (Optional)
Power
Power Input DC 9~36V
Power Consumption 35W
Mechanical
Construction Black Color Aluminum Alloy Bezel + Steel Chassis
IP rating Front IP66
Mounting Panel mounting, VESA 75 x 75
Dimension (mm) 467 (L) 379 (H) x 68 (D)
Net Weight 3.5 kg
Environment
Operating Temperature -10°~60°C
Storage Temperature -20°~60°C
Storage Humidity 10 to 90% @40C, Non-condensing, Without touch screen
Certification CD/FCC Class A
Warranty 2 Years limited parts and labor
In the Box
6 feet VGA Cable 1
Touch Cable 1
AC Adapter 1
Power Cord 1
Panel Mount Kit 1
  • 19” TFT LCD Resistive / Projected Capacitive Touch
  • Front Panel IP66
  • Aluminum Bezel with OSD Keypad on front
  • 400 nits/1000 nits Sun Light Readable (optional)

TWAP-1194ADP Data Sheet

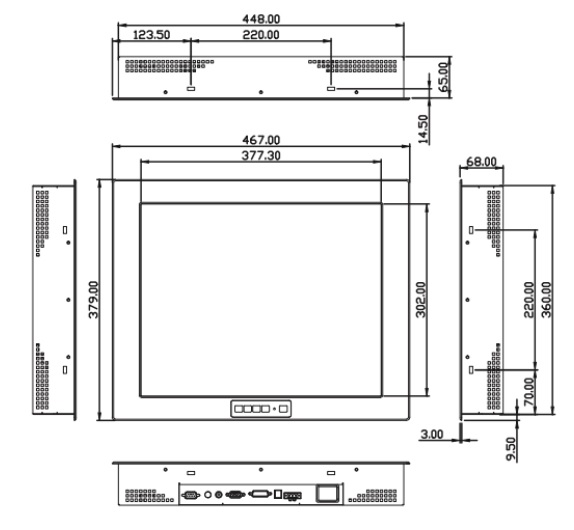

TWAP-1194ADP Mechanical Drawing

TWAP-1194ADP Mounting Instructions
