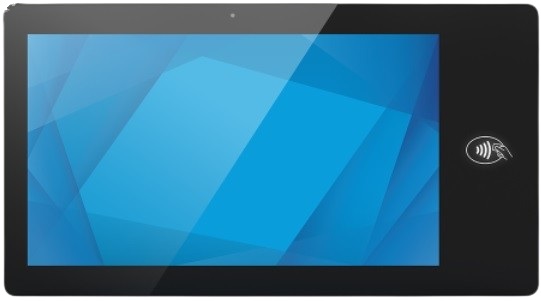

Elo Pay 15 Inch Tap to Pay Android POS System
|
|
Elo Pay 15 Inch Tap to Pay POS System |
|
|
Discover seamless transactions with the Elo Pay 15-inch integrated payment solution. The self-service platform pairs a Full HD touch display with integrated NFC, Android 14, and the Qualcomm SD6490 processor to deliver fast, reliable performance. From self-order and self-checkout to ticketing and customer checkin, deploying kiosks has never been easier. Pair the Elo Pay 15-inch with a variety of stands and mounts to create the self serve solution your business needs. Elo Tap to Pay System. With no need for complex payment certifications and access to immediate integration, it's never been easier to start transacting. Start changing the way customers and employees interact by deploying a new generation of interactive technologies that provides seamless integration, effortless provisioning and simplified device management via EloView or your preferred management tools. Elo Tap to Pay System. |
|
- Specifications
- Overview
- Accessories
- Support
| Model | Elo Pay 15 Inch Tap to Pay POS System | |
| Part Number(s) | E488611 | |
| Enclosure Color | Black | |
| Touch Technology and Capacity | PCAP (TouchPro Projected Capacitive) - 10 Touch | |
| Touch Thru | Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches | |
| Processor | Qualcomm Snapdragon QCS6490 | |
| Memory (RAM) | 8GB | |
| Storage | 64G | |
| OS | Android 14 with Google Play Services and EloView content deployment and management Planned upgrade to Android 16 and Android 18 available with OS 360 subscription |
|
| Diagonal Size |
15.6'' diagonal, Active matrix TFT LCD (LED)
|
|
| Aspect Ratio | 16:9 | |
| Active Area (mm) | 13.55" x 7.62" / 344 mm x 194 mm | |
| Resolution | 1920 x 1080 @ 60Hz | |
| Number of Colors | 8-bit (16.7 million) | |
| Brightness (typical) | LCD Panel: 300 nits TouchPro PCAP: 258 nits |
|
| Response Time-total (typical) | 30 msec | |
| Contrast Ratio | 800:1 | |
| Viewing Angle | Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total | |
| Peripheral Mounting | 4x micro-USB 2.0 Elo Edge Connect ports Support for 1.2A on one port and 500mA for the remaining three ports |
|
| I/O Ports | 1x USB-A 3.0 support (900mA) 1x USB-C output* 1x Micro SD slot 1x GPIO 1x RJ45 Ethernet LAN (Gigabit) 1x DC input |
|
| NFC | Front facing NFC antenna Programmable rear-lit LED illuminates NFC contactless logo (red, green and white) Fully SoftPOS compatible |
|
| Webcam | 8MP Max Resolution: 3264x2448 30fps Auto Focus |
|
| Wireless | 802.11a/b/g/n/ac/ax + Bluetooth 5.2 | |
| Audio Ports | 2x built-in Digital Microphones | |
| Speakers | 2x 1.5W | |
| Power Supply | AC input voltage: 100-240 VAC Input frequency: 50-60 Hz |
|
| Power Consumption (Typical) | On: 9.2W Off: 0.2W Sleep: 2.0W |
|
| Power Over Ethernet (PoE) | Supported via Elo PoE Device PN: E669163 Reference the I-Series 5 user guide for details. |
|
| Dimensions | 17.92" x 9.8" x 0.9" / 455.2 mm x 249.7 mm x 22.3 mm | |
| Shipping Box Dimensions | 21.6" x 6.3" x 13.4" / 548 mm x 160 mm x 340 mm | |
| Weight (Unpackaged) | 4.0 lbs / 1.81 kg | |
| Weight (Packaged) | 8.4 lbs / 3.8 kg | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F | |
| Storage Temperature | -20°C to 50°C / -4°F to 122°F | |
| Humidity | Operating: 20% to 80% Storage: 5% to 95% |
|
| Regulatory approvals and declarations | UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) |
|
| Supported Countries | Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil | |
| Real-Time Clock | lithium coin cell battery | |
| MTBF | 50,000 hours demonstrated | |
| Mounting Options | VESA 75mm and 100mm | |
| Warranty | 2-year | |
| Extended Warranty Options | 3 year OS 360 - Elo P/N: E897877 4 year OS 360 - Elo P/N: E898079 5 year OS 360 - Elo P/N: E898282 3 year Warranty Coverage – Elo P/N: E819394 4 year Warranty Coverage – Elo P/N: E819598 5 year Warranty Coverage – Elo P/N: E819795 3 year Warranty Coverage + ADP – Elo P/N: E130329 4 year Warranty Coverage + ADP – Elo P/N: E130530 5 year Warranty Coverage + ADP – Elo P/N: E130719 2 year Warranty Coverage + AUR – Elo P/N: E819985 3 year Warranty Coverage + AUR – Elo P/N: E820186 4 year Warranty Coverage + AUR – Elo P/N: E820388 5 year Warranty Coverage + AUR – Elo P/N: E820582 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053 |
|
| OS Support | Bi-monthly Android security updates available with Elo OS 360 package | |
| Sealability | Touchscreen optically bonded to LCD | |
| What's in the Box | Elo Pay 15" North American Power Cable European Power Cable 1x Power Brick Quick Install Guide Screws for cable cover door (located in the power/Ethernet bay) |
|
| Optional Peripherals | Magnetic Stripe Reader (MSR) – Elo P/N: E001002 Fingerprint Scanner – Elo P/N: E134286 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160 2D Barcode Scanner (White - SE2707) – Elo P/N: E551946 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627 POE Module Kit - Elo P/N: E669163 Status Light (Micro-USB Connectivity) - Elo P/N: E644767 Webcam - Elo P/N: E201494 RFID - Elo P/N: E673037 Speaker Bar (Black) - Elo P/N: E894719 |
|
| Stands, Mounts & Kits | Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088 Tabletop Stand for 15-inch Display (Black) - Elo P/N: E044162 Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077 Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356 Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382 Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069 Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458 Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663 Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864 Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151 Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788 Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330 Elo Stand 2402/3-2702/3 - Black (100 mm VESA) - Elo P/N: E509844 Elo Stand 1302L - White (75 mm VESA) - Elo P/N: E307974 Elo Stand 1902/3-2202/3 - White (100 mm VESA) - Elo P/N: E808963 Elo Stand 2402/3-2702/3 - White (100 mm VESA) - Elo P/N: E510042 Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E796783 Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E796965 + E797162 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E572635 Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693 Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260 Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137 Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162 |
|
- Integrated NFC for Contactless Payments
- 10 touch projected capacitive (PCAP) touchscreen
- Compact form factor
- Powerful Touchscreen
- Commercial -grade performance
- Enterprise support with Elo Essential Edge
- Speakers Integrated
- 2 year standard warranty
Elo Pay 15 Inch Tap to Pay
Discover seamless transactions with the Elo Pay 15-inch integrated payment solution. The self-service platform pairs a Full HD touch display with integrated NFC, Android 14, and the Qualcomm SD6490 processor to deliver fast, reliable performance. From self-order and self-checkout to ticketing and customer checkin, deploying kiosks has never been easier. Pair the Elo Pay 15-inch with a variety of stands and mounts to create the self serve solution your business needs.
With no need for complex payment certifications and access to immediate integration, it's never been easier to start transacting. Start changing the way customers and employees interact by deploying a new generation of interactive technologies that provides seamless integration, effortless provisioning and simplified device management via EloView or your preferred management tools.
Brilliant Full HD 15-inch touchscreen
Elevate your customers' payment experience with the 10-touch TouchPro PCAP 15-inch display. Designed for maximum visibility and effortless interaction, transform every transaction into a smooth and engaging encounter.
Create a custom self-service kiosk
From self-checkout and self-order to ticketing, customer check-in and more, deploying kiosks has never been easier. Pair the Elo Pay 15” with a variety of stands to create the self serve solution your business needs.
Universal VESA mount
Easily mount the Elo Pay 15-inch with the built-in VESA mount - making it easy to pair with a variety of stands, pole mounts and wall mounts.
Expand your terminal with Elo Edge Connect
Seamlessly attach any combination of peripherals including cameras, speaker bars and more to the edge of the touchscreen for expanded use.
Create your perfect point of sale system
Whether you need a full service POS terminal or a mobile device to take payments on the go, the Elo Pay lineup makes it easy to accept payments on a unified platform.
