Elo E-Series 3 with Android 14 Inch Touchscreen Computer

Elo's TouchPro PCAP (10 Touch) technology
Professional-Grade, All-in-One
Sleek Edge-to-Edge Glass
Elo Edge Connect Compatibility
Integrated I/O Hub
USB-C Connectivity
Wi-Fi and Bluetooth 5.2
2 Year Warranty

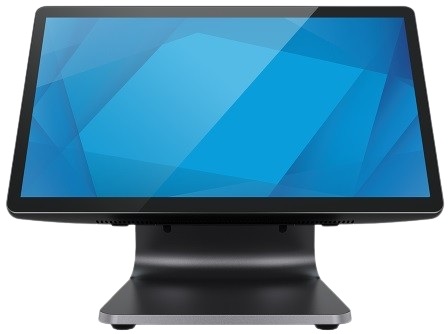

Elo E-Series 3 with Android 14 Inch Touchscreen Computer

Purpose-built for point of sale, the Elo E-Series 3 with Android offers a 14-inch touchscreen display, Android 14 OS, Qualcomm 6490 processor, 8GB RAM, 64GB SSD and integrated connectivity for all the peripherals you need.

From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all.

5 Items

Elo E579366 14-inch E-Series with Stand, Android 14 with GMS, 1920 x 1080 display, 8MP Camera, Black — Part #: E579366 14" Elo E579366 E-Series **with Stand**, Android 14 with GMS, 1920 x 1080 display, Qualcomm 6490 Octa-Core Processor, 8GB RAM, 64GB Flash, Projected Capacitive 10-touch, Wi-Fi, Ethernet, Bluetooth 5.2, 8MP Camera, EloView compatible, Black $0.00

Elo E579570 14-inch E-Series with CFD Stand, Android 14 with GMS, 1920 x 1080 display, 8MP Camera — Part #: E579570 14" Elo E579570 E-Series **with CFD Stand**, Android 14 with GMS, 1920 x 1080 display, Qualcomm 6490 Octa-Core Processor, 8GB RAM, 64GB Flash, Projected Capacitive 10-touch, Wi-Fi, Ethernet, Bluetooth 5.2, 8MP Camera, EloView compatible, Black $0.00

Elo E338246 14-inch E-Series with CFD and NFC Stand, Android 14 with GMS, 1920 x 1080 display, Black — Part #: E338246 14" Elo E338246 E-Series **with CFD and NFC Stand**, Android 14 with GMS, 1920 x 1080 display, Qualcomm 6490 Octa-Core Processor, 8GB RAM, 64GB Flash, Projected Capacitive 10-touch, Wi-Fi, Ethernet, Bluetooth 5.2, 8MP Camera, EloView compatible, Black $0.00

Elo E338432 10-inch Wedge Customer-Facing Display without NFC — Part #: E338432 10" Elo E338432 Wedge Customer-Facing Display without NFC $0.00

Elo E338628 10-inch Wedge Customer-Facing Display with NFC — Part #: E338628 10" Elo E338628 Wedge Customer-Facing Display with NFC $0.00

Specifications
Overview
Accessories
Support
Warranty

Model	Elo E-Series 3 with Android All-in-One Touch Computer
Part Number(s)	With Stand: E579366 With Stand/CFD: E579570 With Stand/CFD and NFC: E338246
Enclosure Color	Black
Touch Technology and Capacity	PCAP (TouchPro Projected Capacitive) - 10 Touch
Processor	Qualcomm Snapdragon QCS6490
Memory (RAM)	8GB
Storage	64GB GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
OS	Android 14 with Google Play Services and EloView content deployment and management Planned upgrade to Android 16 and Android 18 available with OS 360 subscription
Diagonal Size	14.0" diagonal, Active matrix TFT LCD
Aspect Ratio	16:9
Active Area (mm)	12.18" x 6.85" / 309.31 mm x 173.99 mm
Resolution	1920 x 1080 @ 60Hz
Number of Colors	16.2 million
Brightness (typical)	LCD Panel: 250 nits TouchPro PCAP: 213 nits
Response Time-total (typical)	25 msec
Contrast Ratio	700:1
Viewing Angle	Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Surface Treatment	Clear
Peripheral Mounting	2x Elo Edge Connect Micro-USB 2.0 *Support for 1.2A on one port and 500mA for the remaining port
I/o Ports	4x USB-A 3.0 1x RJ45 LAN 1x RJ12 Cash Drawer (12V/24V selectable) 1x 19V DC Input 1x Type-C to CFD (DP alt. + USB3.0 + Power Delivery 15W -5V3A, 9V1.5A, 15V1A)
Integrated Customer Facing Display	Size -10.1 inch Resolution - 1024 x 600 @ 60 Hz Active Display Area (H x V) - 222.72 mm x 125.28 mm Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total Brightness - LCD Panel: 350 nits, TouchPro PCAP: 280 nits Number of Colors - ?? Touch Technology - TouchPro PCAP Number of Touches - 10 Sealing - Touchscreen sealed to LCD
NFC	Operating Frequency: 13.56 MHz ISO 14443 Type A and B, ISO 15693 cards; Mifare, Desfire, FeliCa, NFC Forum tags *NFC models only
Webcam	8MP Max Resolution: 3264x2448 30fps Auto Focus
Wireless	802.11a/b/g/n/ac/ax + Bluetooth 5.2
Audio Ports	2x built-in Digital Microphones
Speakers	2x 2W
Power Supply	AC input voltage: 100-240 VAC Input frequency: 50-60 Hz
Power Consumption (Typical)	With CFD: On: 14W Off: < 0.5W Sleep: 5W
Dimensions	E-Series 14" with stand (E579366): 13.44" x 12.16" x 7.57" / 341.4 mm x 308.9 mm x 192.4 mm E-Series 14" with stand/CFD (E579570): 13.44" x 12.16" x 7.57" / 341.4 mm x 308.9 mm x 192.4 mm E-Series 14" with stand/CFD & NFC (E338246): 13.44" x 12.16" x 8.24" /3 41.4 mm x308.9 mm x 209.2 mm
Shipping Box Dimensions	E-Series 14" with stand (E579366): 18.8" x 16.5" x 13.2" / 478 mm x 418 mm x 335 mm E-Series 14" with stand/CFD (E579570): 18.8" x 16.5" x 13.2" / 478 mm x 418 mm x 335 mm E-Series 14" with stand/CFD & NFC (E338246): 18.8" x 16.5" x 13.2" / 478 mm x 418 mm x 335 mm
Weight (Unpackaged)	E-Series 14" with stand (E579366): 6.4 lbs / 2.9kg E-Series 14" with stand/CFD (E579570): 7.9 lbs / 3.6kg E-Series 14" with stand/CFD & NFC (E338246): 7.9 lbs / 3.6kg
Weight (Packaged)	E-Series 14" with stand (E579366): 14.1 lbs / 6.4kg E-Series 14" with stand/CFD (E579570): 15.4 lbs / 7.0kg E-Series 14" with stand/CFD & NFC (E338246): 15.4 lbs / 7.0kg
Operating Temperature	0°C to 40°C / 32°F to 104°F
Storage Temperature	-20°C to 50°C / -4°F to 122°F
Humidity	Operating: 20% to 80% Storage: 10% to 90%
Regulatory approvals and declarations	UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) BSMI/NCC (Taiwan) KCC (Korea) CCC/SRRC (China) United Kingdom UKCA
Supported Countries	US, Canada, EMEA, UK, Australia, Japan, South Korea, Mexico, Brazil, Taiwan, Argentina, India
Real-Time Clock	lithium coin cell battery
MTBF	50,000 hours demonstrated
Mounting Options	75mm VESA mount
Warranty	2-year
Extended Warranty Options	3 year OS 360 - Elo P/N: E897877 4 year OS 360 - Elo P/N: E898079 5 year OS 360 - Elo P/N: E898282 3 year Warranty Coverage – Elo P/N: E819394 4 year Warranty Coverage – Elo P/N: E819598 5 year Warranty Coverage – Elo P/N: E819795 3 year Warranty Coverage + ADP – Elo P/N: E130329 4 year Warranty Coverage + ADP – Elo P/N: E130530 5 year Warranty Coverage + ADP – Elo P/N: E130719 2 year Warranty Coverage + AUR – Elo P/N: E819985 3 year Warranty Coverage + AUR – Elo P/N: E820186 4 year Warranty Coverage + AUR – Elo P/N: E820388 5 year Warranty Coverage + AUR – Elo P/N: E820582 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
OS Support	Bi-monthly Android security updates available with Elo OS 360 package.
Sealability	Touchscreen optically bonded to LCD
What's in the Box	E-Series with Stand North American Power Cable European Power Cable 1x Power Brick Quick Install Guide 2x Cable Tie
Optional Peripherals	Magnetic Stripe Reader (MSR) – Elo P/N: E001002 Fingerprint Scanner – Elo P/N: E134286 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047 Status Light (Micro-USB Connectivity) - Elo P/N: E644767 Webcam - Elo P/N: E201494 RFID - Elo P/N: E673037 Speaker Bar (Black) - Elo P/N: E894719 10-inch Wedge Customer-facing Display (With NFC) - Elo P/N: E338628 10-inch Wedge Customer-facing Display (Without NFC) - Elo P/N: E338432
Stands, Mounts, Kits	65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304

Elo's TouchPro PCAP (10 Touch) technology
Professional-Grade, All-in-One
Sleek Edge-to-Edge Glass
Elo Edge Connect Compatibility
Integrated I/O Hub
USB-C Connectivity
Wi-Fi and Bluetooth 5.2
2 Year Warranty

Elo E-Series 3 with Android Touchscreen Computer

From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all.

Add a customer facing display or offer the convenience of contactless payment

The E-Series 3 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.

Expand with Elo Edge Connect

Seamlessly attach up to two peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Accessory	Part #
Magnetic Stripe Reader (MSR)	E001002
Fingerprint Scanner	E134286
2D Barcode Scanner (Black - SE4720)	E384627
2D Barcode Scanner (Black - SE4107)	E245047
EMV Cradle for MagTek eDynamo	E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB)	E586981
EMV Cradle for Ingenico RP457c (with BT and USB)	E710930
Status Light (Micro-USB Connectivity)	E644767
3D Camera	E134699
Webcam	E201494
RFID	E673037
10” Customer-facing Display	E967935
Rear Facing Display Mount	E997555
USB-C to USB-C Cable Kit	E185034
75mm VESA Adapter	E193547
