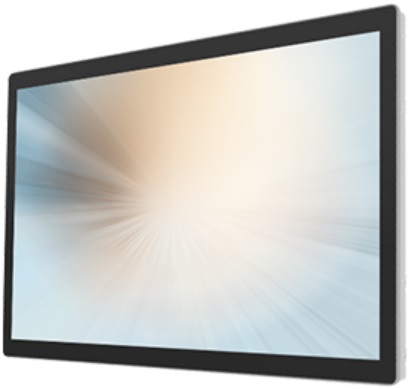

MicroTouch OF-270P-B2 Open Frame Touch Screen Monitor

27" TFT LCD Touch Screen
Maximum Resolution: 1920 x 1080
Contrast Ratio: 4000:1
Aspect Ratio: 16:9
Brightness: 350 nits (no touch), 275 nits (P-CAP)
View Angle: H:178°, V:178°
Video Port: 1 x VGA, 1 x HDMI, 1 X DP
Three year warranty

MicroTouch OF-270P-B2 27" Open Frame Touch Screen Monitor

The new MicroTouch OF-270P-B2 27” full HD (1920 x 1080) P-CAP, 10-point touch, open-frame solution is designed to handle a wide variety of customer-specific touch applications. Equipped with a versatile I/O port selection, the new OF-270P-B2 monitor creates a convenient, hassle-free experience and is an exceptional choice for deployment in all sectors. The thin cable management system, bracket, and versatile design ensure the OF-270P-B2 monitor provides all capabilities necessary to create a unique solution for any customer application.

Specifications
Overview
Accessories
Support

Model	27" MicroTouch OF-270P-B2
Touch Screen	Projected Capacitive
Touch Points	10
Surface Treatment	AG (Anti-Glare)
Touch Screen Interface	USB-HID (Type B)
I/O Ports
USB Port	1 x USB 2.0 (Type B) for Touch Interface (USB-HID)
Video Port	1 x VGA, 1 x HDMI, 1 x DP
Power Input	1 x DC In 12V Jack Power Input
Physical Properties
Power Supply	50W (12V, 4.16A) External Power Adaptor
Speaker	-
Housing Color	Black
Construction	Glass, SECC Metal
Compliance	Front Panel IP54 Compliant
Dimensions (W x H x D) mm	651.0 x 395.0 x 39.6 mm
Net Weight (kg)	8.1 kg
Gross Weight (kg	9.9 kg
Carton (W x H x D) mm	762.0 x 527.0 x 174.0
VESA	100 x 100 mm
Ball Drop	IK08
Safety
Certifications	CE, FCC, UL/cUL, RCM, RoHS
Environment
Operating Temperature	0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing
Storage Temperature	-20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing
What's in the Box

Optional Peripheral
Warranty	3 year warranty

The new MicroTouch OF-270P-B2 27” full HD (1920 x 1080) P-CAP, 10-point touch, open-frame solution is designed to handle a wide variety of customer-specific touch applications. Equipped with a versatile I/O port selection, the new OF-270P-B2 monitor creates a convenient, hassle-free experience and is an exceptional choice for deployment in all sectors. The thin cable management system, bracket, and versatile design ensure the OF-270P-B2 monitor provides all capabilities necessary to create a unique solution for any customer application.

Accessory	Part #
	-

MicroTouch OF-270P-B2 Data Sheet

MicroTouch OF-270P-B2 Schematic Drawing

MicroTouch Drivers
