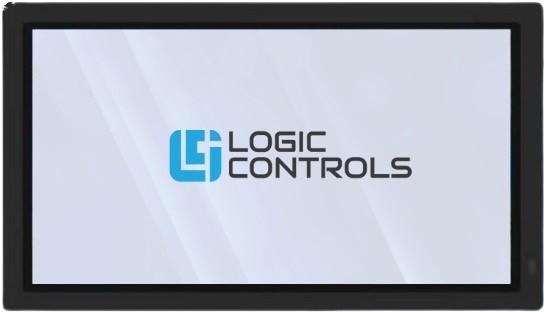

Logic Controls LP27 27 Inch Touchscreen Monitor

Logic Controls LP27 27 Inch Touchscreen Monitor
  • 27" LCD Panel Wide Touchscreen
  • HD Resolution (1920 x 1080)
  • HDMI, VGA & Touch Input (USB Type-B)
  • True-Flat PCAP multi-touch screen
  • Brightness:  350 nits
  • IP65 Rated for Water and Dust Resistance (Front)
  • Heat Resistant up to 140°F (60°C)
  • Universal VESA Mount (100 x 100)
  • 3-Year Warranty

Logic Controls LP27 27 Inch Touchscreen Monitor

Logic Controls LP27 27 Inch Touchscreen Monitor

The Logic Controls LP27 is a 27” HD touchscreen monitor designed for performance and durability. Its true-flat PCAP multi-touch screen offers smooth, responsive interaction, while the IP65-rated front panel protects against water and dust.

Built to withstand heat up to 140°F (60°C) and backed by a 3-year warranty, the Logic Controls LP27 is ideal for demanding commercial environments.

  • Specifications
  • Overview
  • Support
Model Logic Controls LP27 27 Inch Touchscreen Monitor
Display
Size and Resolution 27" 1920 x 1080
Brightness 350 nits
Touch Screen True-Flat PCAP multi-touch
I/O Ports
HDMI 1
VGA 1
DC In 1 x DC In
Power Switch 1 Power Switch
Wi-Fi
Wi-Fi No
Power
Power Adapter 1 External power adapter 12V-5A/60W
Certificate
EMC & Safety CE FCC UKCA RoHS
Environmental
Operating Temperature 0°C ~ 35°C (32°F ~ 95°F)
Storing Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Relative Humidity 20% ~ 85% RH non-condensing
Dimensions
W x H x D 535mm x 388.4mm x 46.6mm (21.1" x 15.3" x 1.8"
Weight 7.9kgs (17.6lbs)
Mounting
VESA Mount 100 x 100

The Logic Controls LP27 is a 27” HD touchscreen monitor designed for performance and durability. Its true-flat PCAP multi-touch screen offers smooth, responsive interaction, while the IP65-rated front panel protects against water and dust.

Built to withstand heat up to 140°F (60°C) and backed by a 3-year warranty, the Logic Controls LP27 is ideal for demanding commercial environments.

Key features

  • True-flat projected capacitive (PCAP) multi-touch screen: Allows for smooth and responsive user interaction.
  • HD resolution: The display provides a clear, high-definition picture at 1920 x 1080 pixels.
  • Durability: The front panel is rated IP65 for resistance to water and dust, and the entire unit can resist heat up to 149°F (65°C).
  • Flexible setup: The Logic Controls LP27 is VESA mount compatible, allowing for installation on a counter, wall, or floor pedestal, though the stand is sold separately.
  • Operating system compatibility: It is compatible with Windows, Chrome, or Linux operating systems.
  • Customizable: The system supports various accessories, including a dedicated printer and a PinPad arm, for enhanced functionality.
  • Warranty: It comes with a 3-year warranty.
Logic Controls LP27 Product Data Sheet (PDF)
