7 Inch IP67 Stainless Steel Touch Screen Monitor

7 Inch IP67 Stainless Steel Touch Screen Monitor
  • 7" TFT LCD
  • True Flat Front Bezel Design (Capacitive Touch)
  • Capacitive / Resistive Touch
  • Full IP67 Rating Stainless Steel Enclosure
  • Tempered Glass Integrated (non-touch version)
  • 1000 nits High Brightness (Optional)

7 Inch IP67 Stainless Steel Touch Screen Monitor

7 Inch IP67 Stainless Steel Touch Screen Monitor

  • Specifications
  • Overview
  • Support
Display
Model Name ETPM-E07
Size/Type 7" TFT
Resolution (pixels) 800 x 480 or 1024 x 600
Number of Colors 16.7M
Brightness (cd/m2) 300 Standard; 1000 nits (opt.)
Backlight lifetime 40,000 hrs
Viewing Angle 150°H/140°V
System
VGA None
DVI None
HDMI 1 x HDMI
OSD Control 5 Keys on rear side (optional)
Wi-Fi NONE
Power
Power Input DC 12V
Power IP67 Waterproof Connector
Power Consumption 26.4W
Mechanical
Construction Stainless Steel Enclosure
IP rating IP66 /  67
Mounting VESA Mounting 75mm
Dimension (mm) 227 x 159.92 x 67.30 mm
Net weight 2 kg (4.5 lbs)
Environment
Operating Temperature -10°~60°C
Storage Temperature -20° ~70°C
Storage humidity 10 to 90% @40°C Non-condensing
Certification CE/FCC Class A
In the Box
  1 x Touch Monitor in Stainless Steel Enclosure
  1 x Power Adapter
  1 x HDMI cable 6 foot (IP67 rated)
  1 x USB cable 6 foot (IP67 rated)
  • 7" TFT LCD
  • True Flat Front Bezel Design (Capacitive Touch)
  • Capacitive / Resistive Touch
  • Full IP67 Rating Stainless Steel Enclosure
  • Tempered Glass Integrated (non-touch version)
  • 1000 nits High Brightness (Optional)

TWAP-ETPM-E07 Data Sheet

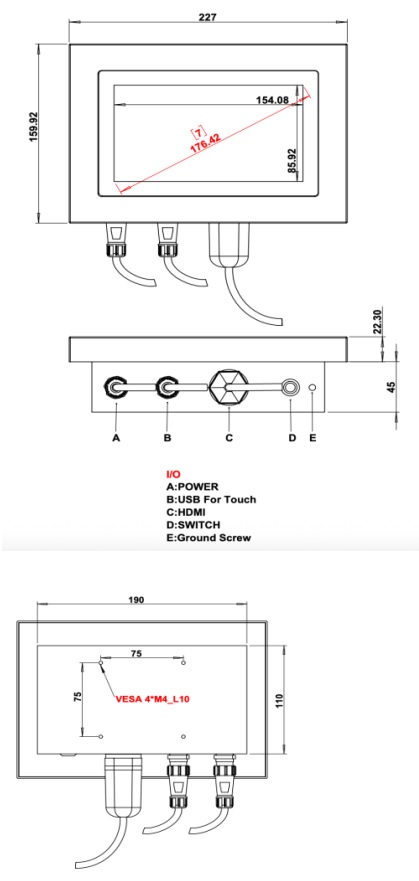

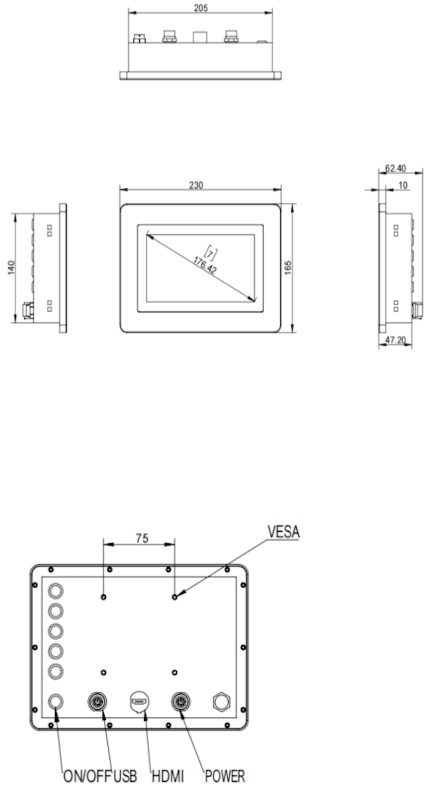

ETPM-E07 Mechanical Drawing
