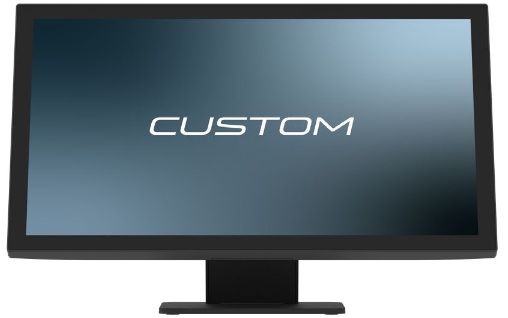

Custom TREK 21.5 Inch Touchscreen Monitor

Custom TREK 21.5 Inch Touchscreen Monitor
  • 21.5" Projected Capacitive Touch Screen
  • Simplicity
  • Versatility
  • Flexibility
  • Durability
  • 3 Year Warranty

Custom TREK 21.5 Inch Touchscreen Monitor

Custom TREK 21.5 Inch Touchscreen Monitor

TREK Monitor by Custom Group: your journey to true functionality starts now!

TREK Touchscreen Monitor adds touch functionality to any application: POS, Self-Service, KDS, Price Checker, and more.

  • Specifications
  • Overview
  • Accessories
  • Support
Model Custom TREK 21.5 Inch Touchscreen Monitor
Touch Display 21.5"
Resolution 1920 x 1080
Aspect Ratio 16:9
Touch Technology True-Flat PCAP multi-touch
Touch Interface USB
Brightness LCD Panel: 350 NITS | PCAP Touch: 310 NITS
Viewing Angle Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
USB Type-C 1x USB-C 3.0 full-functioned (DP / PD 5 V / 2 A, 12 V / 1 A)
HDMI 1x
Micro USB 3x
DC Jack 1x 2pin
Auto Adjust Button 1x
Power Button 1x
Stand Included
VESA Mount 75 x 75 mm
Accessory Options 2D Scanner, Camera / Microphone, Fingerprint Reader, NFC / RFID Reader, iButton, Light Bar, MSR
Ingress Protection IP54 (screen side)
Operating Temperature 0° C ~ 35° C (32° F ~ 95° F)
Storage Temperature -20° C ~ 60° C (-4° F ~ 140° F)
Humidity 20% ~ 80% RH non-condensing
W x D x H 571.8 mm x 42 mm x 309.6 mm (without stand)
517.8 mm x 165 mm x 334.5 mm (with stand)
Weight 3.09 kg (without stand)
What's in the Box Monitor, Stand, 1.8 m USB-C cable, Power supply, NA power cord, EU power cord
(Note: power supply required only for HDMI + USB-A connections)

TREK Monitor by Custom Group: your journey to true functionality starts now!

TREK Touchscreen Monitor adds touch functionality to any application: POS, Self-Service, KDS, Price Checker, and more.

Part Number Description
932PW010300M33 Trek 11.6-inch customer facing touch display, embedded NFC
932PW010400M33 Trek 11.6-inch customer facing display
932PW010500M33 LCM 2-Line Customer Display for Trek
938PW010100001 Fingerprint reader accessory for Trek Terminal
938PW010100002 2D scanner accessory for Trek Terminal
938PW010100003 3 Track MSR accessory for Trek Terminal
938PW010100004 NFC/RFID reader accessory for Trek Terminal
938PW010100005 LED Light Bar accessory for Trek Terminal
938PW010100006 Camera / microphone accessory for Trek Terminal
938PW010100007 Trek series POS stand for all screen sizes, 11.6", 15.6", 21.5"
938PW010100008 Trek USB Type-C Alt mode USB cable 2 meters / 6 feet
938PW010100009 Trek USB Type-C Alt mode USB cable 0.8 meters / 2.5 feet
938PW010100010 Trek 11.6" CFD Rear Facing Adjustable Mounting Arm
938PW010100011 65W 5mm Power Adapter: Trek Intel, Android, Monitor, and CFD
938PW010100012 iButton reader accessory for Trek Terminal

Custom America TREK Touchscreen Monitor 21.5" Product Brochure
