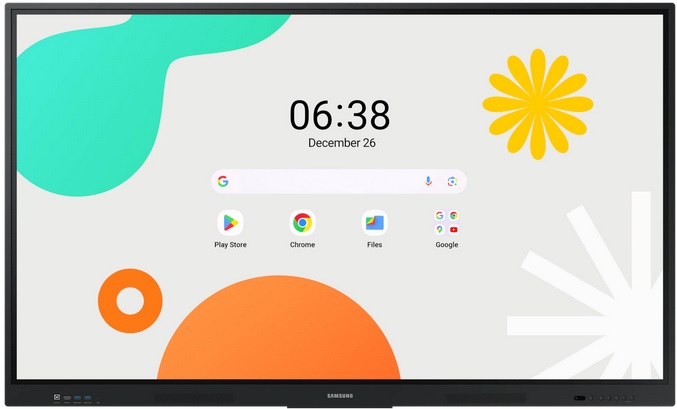

Samsung WAF WA65F 65 Inch Interactive Display
 |
|
Samsung WA65F Samsung WAF 65" Interactive Display |
|
|
Introducing the Samsung WAF Series, your new interactive display that delivers captivating educational experiences. Its familiar and intuitive Android OS interface is powered by a processor that guarantees smooth performance, intelligent AI processing and detailed graphics. Access a world of pre-installed tools and interactive educational apps to boost productivity and usher in a new era of learning. Plus, tap into the updated tools that make it easier to engage and collaborate with multiple students in real time, allowing for customizable learning environments that create a shared, yet personal, learning experience. |
|
- Specifications
- Overview
- Accessories
- Support
- Warranty
| Display | Samsung WA65F 65 Inch Interactive Touch Display |
| Screen Size | 65" |
| Contrast Ratio | 1,200:1 |
| Brightness (Typ) | 400 nit |
| Resolution | 3,840 x 2,160 |
| Viewing Angle (H/V) | 178/178 |
| Diagonal Size | 65" |
| Panel Type | IPS |
| Pixel Pitch (HxV) | 372(H)x372(V) |
| Response Time (ms) | 8ms |
| Color Gamut | 72% |
| Glass Haze | 25% |
| H-Scanning Frequency | 135 KHz |
| Maximum Pixel Frequency | 78MHz |
| V-Scanning Frequency | 60Hz |
| Operation Time Support | 12/7 |
| Connectivity | |
| Wi-Fi Protocol | Wi-Fi 5: 802.11ac |
| Bluetooth | Yes |
| External Control | Touch Input RS232C In,RJ45 In |
| HDMI In | 2 |
| USB | 4 |
| Audio In | Stereo Mini Jack |
| Audio Out | Stereo Mini Jack |
| Video Out | Yes |
| RS232 In | Yes |
| RJ45 In | Yes |
| Version of HDMI | 2.1 |
| Version of HDCP | 2.1 |
| Internal Sensor | Eco Sensor |
| Ethernet Speed | 1 Gbps |
| Power | |
| Power Supply | AC100-240V 50/60Hz |
| Power Consumption (Standby) | 0.5 |
| Power Consumption (On Mode) | 409 W |
| Power Consumption (Sleep Mode) | 0.5 |
| Max [W/h] | 286 |
| Rating [W/h] | 371 |
| Typical [W/h] | 172 |
| Type | Internal |
| Features | |
| Key | EDLA Certified Android Model (Google Play supported) |
| Speaker Type | Built in Speaker (15W X 2CH) |
| H/W | Touch Overlay(IR), Front Connectivity, OPS I/F Support, Eco Sensor, WiFi/BT embedded |
| Orientation | Landscape |
| Touch | |
| Touch Technology | IR |
| Drawing Speed (Touch Latency) | ≤45ms |
| Thickness | 3.2T |
| Hardness | Mohs 5 |
| # of Touch | 40 points |
| Object Recognition Range (Minimum) | 2mm |
| Type | IR |
| Internal Player | |
| Processor | A73 X 4 + A53 X 4 |
| RAM | 8GB |
| Storage | 64GB |
| Operating System | Android 14 |
| Dimensions | |
| Set Dimensions (W x H x D) | 1482.1 x 897.5 x 87.7 mm |
| Package Dimensions (W x H x D) | 1640 x 1010 x 185 mm |
| Set Weight | 36.2 kg |
| Shipping Weight | 98.1 lb |
| Accessories | |
| Included in the Box | Power Cord, Remote Controller, HDMI Cable, Touch Pen(2ea, Black), USB Cable, Warranty/QSG |
| Optional Stand | N / A (3rd party company stand/mount can be supported through VESA) |
| Mount | N / A (3rd party company stand/mount can be supported through VESA) |
| Mechanical Specs | |
| VESA Mount | 600 X 400 |
| Protection Glass | Yes |
| Stand Type | Wall Mount |
| Media Player Option Type | OPS Slot Support |
| Rotation | Landscape Only |
| Power Cable Length | 3 meter (9.84 feet) |
| Operation Conditions | |
| Humidity | 10~80% non condensing |
| Operation Temperature | 0℃~40℃ |
| Design | |
| Bezel Color | Black |
| Input | |
| Audio | 1 (Stereo Mini Jack) |
| Video | HDMI 2(Rear 1, Front 1) USB C(Front), OPS |
| USB | 4 (2.0 X2, 3.0X2) |
| Output | |
| Video | HDMI Out (Rear) |
| Touch Out | Touch Out 2 (Front 1, Rear 1) |
| Audio | 1 (Stereo Mini Jack) |
| Screen Share | Yes |
| Certification | |
| Security | WFA/WPA/WPA2/WPA3 personal/ WPS2.0 |
| Environment | ENERGY STAR |
| Warranty | |
| Warranty | 1 Year |
Unlimited Learning Possibilities
The interactive display Samsung WAF series, powered by Android OS 14 and Octa-Core CPU, enhances education with Google services and a seamless annotation function. Enables instantaneous note-taking, empowering students to collaborate independently in separate zones, ushering in a new era of interactive education.
An Intuitive UX that fits your needs - Powered by Android
The Samsung WAF series offers familiarity to its users. Compatible with other Android™ devices, its variety of widgets and easily-customizable home screen provide more flexibility to build an environment suited for various learning needs.
Effortless access to Google Services
With an EDLA certification, the Samsung WAF series supports a variety of Google services like Google Play and YouTube. This access to major educational apps like Google Classroom leads to increased efficiency and enhanced communication with students.
Take notes instantly anywhere on the screen
The Samsung WAF series lets users take notes any time with a simple press of the always-visible Annotation button. Whether watching a video or viewing any content, users can seamlessly annotate without interruptions, enhancing productivity by avoiding the need to capture images first.
Smart, wireless sharing on multiple devices
The Samsung WAF series supports screen mirroring for up to nine devices, increasing student engagement. This feature ensures every student is included and engaged as content can be shared on both the large display and individual devices. It can be used on iOS, Mac, Windows, Android™, or Chrome OS.
Better interaction with best-in-class multi-touch
Multiple users can write and draw on the whiteboard at the same time with the display’s advanced multi-touch capabilities. Up to 40 simultaneous touchpoints are possible, allowing large groups of students and teachers to collaborate and learn together in an efficient, streamlined way.
Swith pens without changing settings
The dual pen function enables the use of two different writing tools with no downtime. With the double-sided nib applied, users can effortlessly switch between two different colors on the front and back side of the pen – without needing to change the settings or interrupt the flow of the lesson.
Convenient connectivity with USB-C
Connectivity is enhanced with the 3-in-1 USB-C port, enabling screen mirroring, touch control and external device charging (max. 65W). Teachers can simply connect to the USB Type-C port, allowing them to deliver interactive and engaging lessons without any hassle.
Accessible content for a class of any size
With the HDMI Out function, whiteboard screen content can be shared on a different and larger screen in the classroom. This feature ensures teachers can provide a real-time, interactive experience for students who can easily view the screen content regardless of where they sit in the classroom.
| Accessory | Part # |
| Stand | |
| Mount |
1 Year Warranty Parts and Labor
