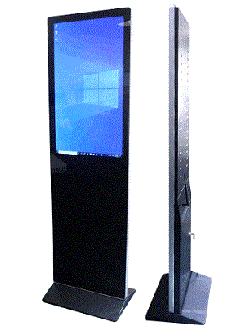

49" Indoor Floor Stand Touch Screen Kiosk

Indoor Floor Stand Touch Screen Kiosks
  • 49" Indoor Portrait Touch Kiosk
  • Height 75" (1902 mm)
  • Ultra Slim Profile
  • 10 Point PCAP Touchscreen
  • 1500-2000 NIT LCD brightness (check size)
  • 3mm AR coated Vandal-proof tempered glass
  • Forced-air Cooling Fans
  • 2 x 5 Watt speakers in rear
  • Touch Display (Computer Optional)
  • CPU i3/i5/i7 6th Gen/7th Gen/8th Gen
  • Windows 10 Enterprise
  • 8GB RAM
  • 128GB SSD
  • 2GB Dedicated Video Optional
  • Or Android Optional

Indoor Floor Stand Touch Screen Kiosks

49" Indoor Floor Stand Touch Screen Kiosk

Standard IDKFS Specifications
  IDKFS-32 IDKFS-43 IDKFS-49 IDKFS-55
Display
Size 32'' 43" 49" 55"
Drawing IDKFS-32DWG IDKFS-43DWG IDKFS-49DWG IDKFS-55DWG
Aspect Ratio (16:9) (16:9) (16:9) (16:9)
Native Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Contrast (2000:1) (2000:1) (2000:1) (2000:1)
Response Time 6 m/sec 6 m/sec 8 m/sec 8 m/sec
Brightness 350NIT 400NIT 400NIT 400NIT
Glass 3mm Tempered Glass
Touch PCAP PCAP PCAP PCAP
Viewing Angle 176°/176° 176°/140° 176°/176° 176°/176°
PC Specifications (standard)
Processor J1900, i3/i5/i7 (6th/7th/8th Gen) - (Android RK3399 Optional)
Chipset Intel 6th Gen, 7th Gen, 8th Gen
RAM 8GB (16GB Max i3/i5/i7) -40 to +80C Wide-temperature RAM
Storage 128GB (256GB option) -40 to +80C Wide-temperature Solid State Drive
Graphics J1900 Embedded Graphics
Graphics i3/i5/i7 2GB Card (embedded graphics optional)
Ports I/O J1900 1X LAN, 4X USB 3.0 (1 used by touch), 1X HDMI, 1X VGA, Audio In/Out
Ports I/O i3/i5/i7 1X LAN, 4X USB 3.0 (1 used by touch), 2X HDMI, Audio In/Out
WiFi Mini-PCIe WiFi card w/external antenna
Android Specifications (optional)
Rockchip® RK3399 Double Cortex-A72 + Four Cortex-A53(2.0ghZ) 64 bit
RAM 4GB DDR3
Memory 16GB Flash
Extended Storage SD Card Socket
OS Version 7.1 - 8.0
OS Language English (default, multi-language)
I/O USB2.0*2, RJ-45*1, SD socket*1, HDMI*1,DC*1, Audio*1
Environmental
Operating temperature  0 to 40C
Operating Humidity 20%-80%RH
Cooling Forced Air Fan Cooling
Power Requirements
AC Input 110V~240V 110V~240V 110V~240V 110V~240V
Power Watts Max. 370 370 370 370
 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE - IF A CERTAIN SPEC IS CRITICAL TO YOU ALWAYS ASK
