GVision I55DI 55 Inch 4K UHD Touch Screen Display

GVision I55FI 55 Inch 4K UHD Touch Screen Display
  • 55-Inch Screen Size
  • 3840 x 2160 4K UHD Resolution
  • 40-Point PCAP Touch
  • Interface: HDMI / DisplayPort (DP) / USB-C (Embedded Android)
  • Interface: HDMI / USB-C (Without Android OS)
  • Intel OPS Slot for All Models / Android OS
  • 350 nits High Brightness
  • 2-year Extended Warranty Plan Available

GVision I55FI 55 Inch 4K UHD Touch Screen Display

GVision I55DI 55 Inch 4K UHD Large Format Touch Screen Display

This innovative design of the GVision I55DI 4K UHD Touchscreen Display features a 55-inch 4K display, opening up new opportunities in digital signage, corporate webinars, and infotainment.

Technological advances and price decreases have significantly expanded the market for large 4K touchscreen displays. These innovative designs, featuring 4K displays of 32 inches and above, are creating new opportunities in digital signage, corporate webinars, and infotainment. Feel free to inquire about our large touchscreen LCDs or engage us with your latest solution project, and let our engineers position you for some thing big.

  • Specifications
  • Overview
  • Support
MODEL
Part Number I55DI-4L0IT0 I55DI-4LRIT0 I55DI-4LPIT0 I55DI-4NPYT0 I55DI-4NRYT0
DISPLAY
Screen Size 55"
Resolution 3840 x 2160
Active Area 1213.6 (H) x 684.9 (V)
Viewing Angle 178° / 178°
Response Time 5ms
Brightness 350cd/m²
Aspect Ratio 16 : 9
Contrast Ratio 1200 : 1
Color Depth 1.07B
Brightness LED
AUDIO
Speakers 10W x 10W (Optional 20Wx20W 2.1 Deep Bass Speaker)
INTERFACE
Ports HDMI2.0 In x1, Audio Out (3.5mm audio output jack) x1, USB-A (Media Player Maximum resolution 1920x1080) x1, RS232 x1, AV In (3.5mm) x1, USB-B (Touch version) x1 HDMI In x2, RS232 x1, DP x1, USB-C x1, USB2.0 x2, USB3.0 x2, RJ45 In x1, COAX Out x1, HDMI Out x1, Line Out x1, RJ45 Out x1, Touch USB x2, Mic In x1
TOUCH TECHNOLOGY
Type / Point N/A IR Touch / 40-Point PCAP Touch / 40-Point IR Touch / 40-Point
FEATURES
OPS Slot Yes
OS Compatibility Win XP/ Win 7/ Win 8/ Win 10/ Android/ Mac
OS (Optional) Windows® System
SYSTEM
CPU N/A Quad-core A73 / A53+G52x8GPU 2.28GHz
WiFi N/A 2.4G&5G 802.11ax, WIFI 6
RAM/Storage N/A 8G/64G
OS N/A Android 14.0
CABINET
Color/Material Black/Metal Housing
POWER
Rating AC 100V~240V, 50/60Hz
TEMPERATURE
Operating/Storage 32° F ~ 104° F (0° C ~ 40° C) / -4° F ~ 104° F (-20° C ~ 40° C)
HUMIDITY
Operating/Storage 10%~80% / 5%~95%
DIMENSIONS
Inch / Millimeter 48.55(W)x27.74(H)x1.81(D) / 1233.4(W)x704.7(H)x46.2(D)
VESA™
Mount Size (mm) 400 x 400
REGULATION
Certification CE / FCC
COMPLIANT
TAA Compliant Yes

This innovative design of the GVision I55DI 4K UHD Touchscreen Display features a 55-inch 4K display, opening up new opportunities in digital signage, corporate webinars, and infotainment.

Technological advances and price decreases have significantly expanded the market for large 4K touchscreen displays. These innovative designs, featuring 4K displays of 32 inches and above, are creating new opportunities in digital signage, corporate webinars, and infotainment. Feel free to inquire about our large touchscreen LCDs or engage us with your latest solution project, and let our engineers position you for some thing big.

  • 55-Inch Screen Size
  • 3840 x 2160 4K UHD Resolution
  • 40-Point PCAP Touch
  • Interface: HDMI / DisplayPort (DP) / USB-C (Embedded Android)
  • Interface: HDMI / USB-C (Without Android OS)
  • Intel OPS Slot for All Models / Android OS
  • 350 nits High Brightness
  • 2-year Extended Warranty Plan Available

GVision I55DI Product Data Sheet

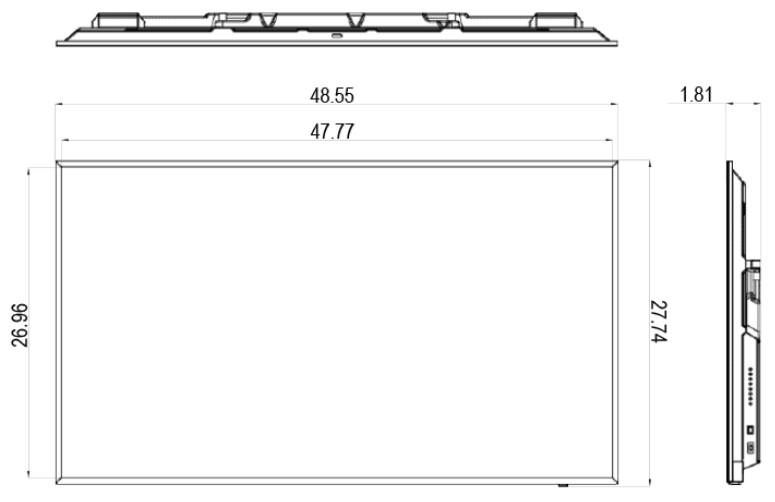

GVision I55DI Mechanical Drawing
