Star Micronics mC-Label3 Label Printers

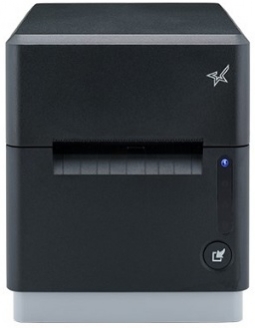

Star mC-Label3 Thermal Label Printer
  • Compatible with strong adhesive linerless labels
  • Uses a wide range or paper types and paper widths
  • Extensive communication method support
  • Generous printing solution and easy setup
  • Easy maintenance design for long-trem use
  • Intuitive label creation and printing service
  • Functions for various use cases

Star Micronics mC-Label3 Label Printers

Star Micronics mC-Label3 Label Printers

Discover a new standard in printing with the multifunctional mC-Label3 label printer by Star Micronics. Whether you’re printing linerless sticky labels, permanent linerless labels, traditional labels, die-cut labels, or standard receipt paper, the Star mC-Label3 caters to all your needs. It’s also Cloud Ready, able to connect to Star Micronics Cloud Services and Label Builder. With Star’s Cloud Services, the mC-Label3 offers the flexibility to build, store, and later print multiple static receipt/label images at the touch of a button with One Touch Label. Able to connect to iOS, Android, and Windows devices, it’s equipped with faster SteadyLAN®+ and introduces the latest technology – TetherLAN (SteadyLAN & TetherLAN currently available on Android & Windows devices only).

Main specifications

Printer Method Direct Thermal (Thermosensitive type)
Print Speed 180 mm/sec
Printer Case Color Black
Models Available USB, Lightning, Ethernet (LAN), WLAN, CloudPRNT, Bluetooth* (*MCL32CBi model only)
Print Resolution 8 dots/mm (203 dpi)
Bar Codes • 1D: UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, ITF, CODE39, CODE93, CODE128, CODABAR (NW-7) GS1-128, GS1 Omnidirectional, GS1 Truncated, GS1 Limited, GS1 Expanded



• 2D: PDF417, GS1 Stacked, GS1 Stacked Omnidirectional, GS1 Expanded Stacked, QR Code

• Composite: GS1 Composite Symbols
Media Supported Linerless Label (Sticky + Permanent), Die Cut Label, Continuous Label, Thermal Receipt
Paper Load “Drop-in and print” paper loading
Paper Out Sensor Standard
Paper Low Sensor Standard
Multiple Print Widths 80mm, 58mm, 40mm, 25mm
Top Margin 3mm (default), 11mm
Auto-Cutter Guillotine, partial & full cut
Sensors • Taken, Paper Jam
• GAP, BM, PE, Cover Open
• Paper Roll Position
• Cutter Home Position
• If mC-Label3 gets too hot, printing will pause until temperature returns to normal
Water & Insect Proofing Protection equivalent to IP22 rating
Logo Store Capacity Unlimited
Power Supply External: PS65AT-24A
Drivers Available Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Clss, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android
Software CloudPRNT, StarwebPRNT (H/W), StarwebPRNT browser, PassPRNT, StarXpand SDK, StarPRNT SDK
Digitally Signed (WHQL) Yes
Swappable Interfaces N/A
Connectivity MCL32CI: mC-Label3 with USB-C and LAN



MCL32CBI: mC-Label3 with USB-C, LAN, and Bluetooth
Emulation Modes StarPRNT
Power Consumption At 24 VDC, room temperature, without USB power supply:



During power ON idling: Approx. 0.08 A (average)

During ASCII printing: Approx. 2.1 A (average)
Operating Conditions Temperature: 5oC to 45oC



Humidity: 10% – 90% RH (without condensation) *Die-cut label paper, full-surface label paper, receipt paper

10% – 80% RH (without condensation) *Linerless label paper
Storage Conditions Temperature: -20oC to 60oC



Humidity: 10% – 90% RH (no condensation)
Dimensions 143 x 212 x 169mm (w x h x d)
Safety Standards UL, C-UL, TuV, FCC, VCCI, EN55022, CE
Reliability MCBF



Print Head

Auto Cutter

 60 Million Lines



100km

2 Million Cuts
What’s Included AC Adapter
Power Cable
USB Cable (C-C 1m & C-A 1.8m)
LAN Cable (1m)
Simple Setup Sheet
Safety Guide
Self-Cleaning Paper Roll
Optional Accessories mG-S322, mG-S1501, mG-S8200, 1D Barcode Scanners, Customer Display, mC-Sound, Kitchen Buzzer, Cash Drawer
Replacement Parts Cutter Unit
Platen Roll Unit
2 in 1 (Cutter unit & Platen unit set)
Standard Warranty 2-Year Limited Manufacturer Warranty (US & Canada)
Added Warranty Options SWAP-A-STAR® Warranty Program (US)



EXTEND-A-STAR® Extended Warranty Program (US and Canada)
