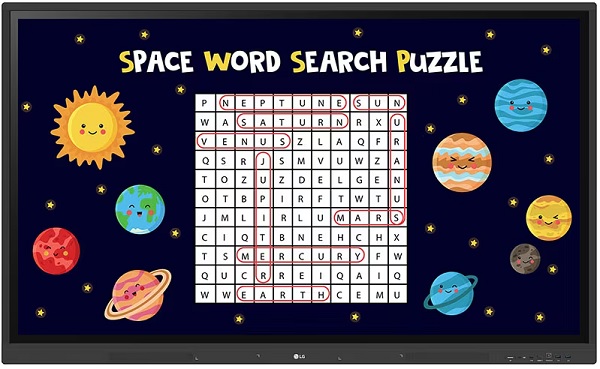

LG 55TR3DK-B 55 Inch UHD CreateBoard Digital Touch Display

55" LG 55TR3DK-B UHD Digital Touch Display
  • Multi-touch (40 points/Windows 32 points/Android)
  • Ultra HD (3,840 x 2,160 resolution)
  • IPS Panel create superior picture quality
  • Android 13 OS
  • Built-in Collaboration Software
  • Built-in OPS kit

LG 55TR3DK-B 55" UHD Digital Touch Display

LG 55TR3DK-B 65 Inch UHD CreateBoard Digital Touch Display

LG CreateBoard Lab offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through connected cloud devices.

  • Specifications
  • Features
  • Accessories
  • Support
Model LG 55TR3DK-B UHD Touch Screen Display
Screen Size 55"
Panel Technology IPS
Resolution 16:9 3840x2160 (4K UHD)
Display
Refresh Rate 60Hz
Brightness (Typ / Max) 350 nits / 400 nits (with glass)
Contrast Ratio 1200:1 (static), 5000:1 (Dynamic)
Viewing Angle ( H x V) 178° x 178°
Response TIme 8ms
Lifetime Up to 30,000 Hours
Operation Hours (Hours/Day) 16/7
Touch Points 40 Point Max Multi-touch (40 Point Max for Windows, 32 Point Max for Android)
Touch Technology Infrared
Hardware
OS Android 13 EDLA
CPU Quad core A55
GPU Mali G52MP2
Storage 64GB
RAM 8GB
OPS (Open Pluggable Specification) Yes, Optional
Speakers Stereo 15W x 2 Forward-Facing
Connectivity
Input HDMI (x3), VGA (x1), Audio in (x1), RS232X (x1), RJ45 (x1), USB 3.0 (x4), USB 2.0 (x1), USB Type‐C with PD (x1)
Output HDMI-out (x1), Audio-out (x1), SPDIF (x1), Touch USB (x2), RJ45 (x1)
Wireless 802.11a/b/g/n/ac/ax (WiFi 6)
Bluetooth 5.0
Ethernet Gigabit LAN
Built-In Software

Collaboration LG CreateBoard Lab, Note 2.0
Casting LG CreateBoard Share
Management LG ConnectedCare DMS
Productivity OfficeSuite
Mechanical
Weight (Net) 57.6 lbs. / 26.1 kg
Weight (Package) 76.1 lbs. / 34.5 kg
Dimension (W x H x D) (Net) 50.0 x 30.5 x 3.4 in 1271 × 774 × 87 mm
Dimensions (W x H x D) (Package) 55.2 x 33.8 x 8.7 in 1401 × 859 x 220 mm
VESA Mount Compatible 400 x 200
Environment
Operation Temperature 32°F to 104°F 0°C to 40°C
OperationHumidity 10% to 90% RH
Electrical
Power Supply 100-240 Vac, 50/60Hz, 5.5A
Typical Power Consumption 170 W
Max Power Consumption 395 W
Standby Power Consumption ≤0.5 W
Warranty
Warranty 3-Year Limited Warranty

Ready to Create?

LG CreateBoard Lab offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through connected cloud devices.

Multi-touch

LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes.

Wireless ScreenShare

LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Files from the host can be easily sent to any devices connected to the LG CreateBoard Share app..

Wireless Bluetooth Connectivity & Built-in Speakers

LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. The CreateBoard has built-in forward facing speakers that provide exceptional sound throughout a classroom..

Built-in OPS Slot

LG CreateBoard supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the LG CreateBoard without the hassle of connecting to an external desktop, offering you more expanded functions.

Accessory Part #










LG 55TR3DK-B Product Brochure

LG 55TR3DK-B Owners Manual

LG 55TR3DK-B Quick Setup Guide
