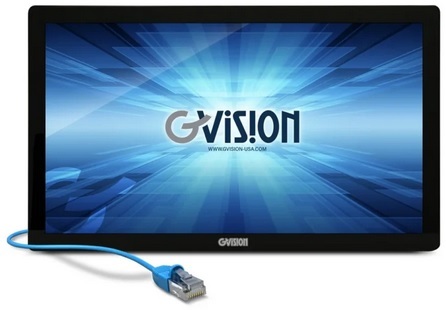

GVision AOE32DD 32 Inch All-Over-Ethernet Touchscreen Monitor

GVision AOE32DD 24 Inch All-Over-Ethernet Touchscreen Monitor
  • 32-Inch Screen / 1920×1080 Resolution
  • Interface (Monitor): RJ45
  • 10-Point PCAP Touch
  • Max 80m with CAT6 Cable
  • 1x RJ45 for Video, Audio, Power, and Keypad, Mouse, Touch Signals
  • Injector: HDMI In / RJ45 Out / USB-A
  • 3W x2 Built-In Speaker
  • 24/7 365 Operation Commercial Grade
  • 3-Year Warranty

GVision AOE32DD 24 Inch All-Over-Ethernet Touchscreen Monitor

GVision AOE32DD 32 Inch All-Over-Ethernet Touchscreen Monitor

The new GVision AOE32DD All-Over-Ethernet (AoE) touchscreen monitor introduces a streamlined design that delivers power, control, and connectivity through a single Ethernet connection. Available in both touch and non-touch versions, it dramatically simplifies installation and reduces the need for traditional wiring.
List View
Grid View

  • Specifications
  • Overview
  • Support
MODEL
Part Number AOE32DD-4RP000 AOE32DD-4RP0G0 AOE32DD-4RP0T0 AOE32DD-4RP0S0
DISPLAY
Screen Size 32"
Resolution 1920 x 1080
Display Area 698.40(H) x 392.85(V)
Aspect Ratio 16 : 9
Viewing Angle 178° / 178°
Brightness 350 Nit
Color 16.7 Million
Contrast Ratio 1200 : 1
Response Time 8ms
Saturation 68%
Backlight Unit LED
INPUT INTERFACE
RJ45 (AOE In) 1
TOUCH TECHNOLOGY
Type Projected Capacitive (PCAP)
Point 10-Point
AUDIO
Speaker 3W x 2
CABINET
Material Metal
POWER
Power Consump􀆟on Max.60W (80m CAT.6 cable)
Saving Mode < 2W
Power Input 802.3bt type4 POE / 90W POE Generator
TEMPERATURE
Operating 32° F ~ 122° F (0° C ~ 50° C)
Storage -4° F ~ 140° F (-20° C ~ 60° C)
Humidity 10 ~ 85%
DIMENSIONS (WxHxD)
Inch (in) 29.54 x 17.82 x 2.28
Millimeter (mm) 750.35 x 452.65 x 58
WEIGHT
Net Weight 30.86 Lbs (14 Kg)
VESA™
Mount Size (mm) 200 x 200
ACCESSORY
Accessories AOE Injector Device x 1, HDMI Cable x 1 Power Cord x 1
COMPLIANT
TAA No No Yes Yes
Silk Print
Logo No Yes Yes No

The new GVision AOE32DD All-Over-Ethernet (AoE) touchscreen monitor introduces a streamlined design that delivers power, control, and connectivity through a single Ethernet connection. Available in both touch and non-touch versions, it dramatically simplifies installation and reduces the need for traditional wiring.

  • 32-Inch Screen / 1920×1080 Resolution
  • Interface (Monitor): RJ45
  • 10-Point PCAP Touch
  • Max 80m with CAT6 Cable
  • 1x RJ45 for Video, Audio, Power, and Keypad, Mouse, Touch Signals
  • Injector: HDMI In / RJ45 Out / USB-A
  • 3W x2 Built-In Speaker
  • 24/7 365 Operation Commercial Grade
  • 3-Year Warranty

GVision AOE32DD Product Brochure

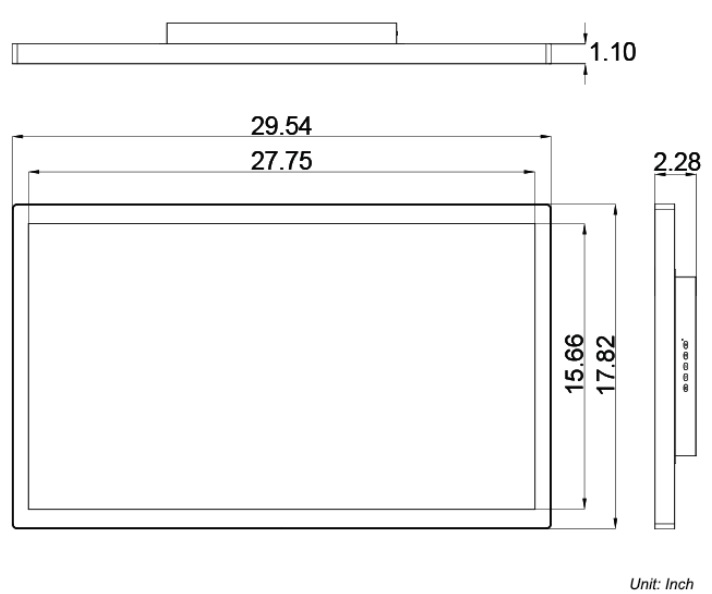

GVision AOE32DD Mechanical Drawing
