Elo M60 Pay Mobile POS System

Accept Payments anytime. Anywhere
Point of Sale on the go
Brilliant 6-inch display
Choose the model that fits your business
L1 and L3 Certified
L3 Certified
Fast & Easy Scanning
Battery life to cover your shift
One device for everything
Android device management made easy
1 Year Warranty

Elo M60 Pay Mobile POS System

Designed to support your everyday business, the Elo M60 Pay delivers an enterprise grade, Android mobile POS computer ready to help you assist customers. This all in-one device offers built-in capabilities to accept payments, conduct business, and track sales all from the palm of your hand. Complete with a 6-inch HD touch display, integrated payment, flexible Android 10 OS and Qualcomm 660 octa-core processor, the Elo M60 Pay handheld computer provides seamless integration, effortless provisioning and simplified device management via EloView or your preferred 3rd-party MDM.

With rugged Corning Gorilla Glass technology to provide protection against unintentional spills, the Elo M60 Pay is purpose-built to endure commercial use. From table service and line busting to curbside pickup and accepting payment almost anywhere, Elo’s M60 Pay allows your employees to be ready on the go.

List View

Grid View

Part #:

E862945

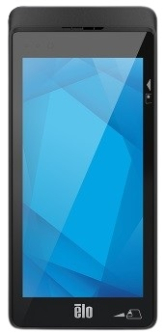

Elo M60 Pay Mobile Computer E862945 Cellular (USA), Android 10 with GMS, 6-inch HD 1440 x 720 Display, Qualcomm 660 Octa-Core Processor, 3GB RAM, 32GB Flash, Wi-Fi, Bluetooth 5.0, Integrated Payment (NFC, EMV, MSR), 8MP Camera, EloView Compatible, Black

$773.50

Part #:

E863128

Elo M60 Pay Mobile Computer E863128 Wi-Fi, Android 10 with GMS, 6-inch HD 1440 x 720 Display, Qualcomm 660 Octa-Core Processor, 3GB RAM, 32GB Flash, Bluetooth 5.0, Integrated Payment (NFC, EMV, MSR), 8MP Camera, EloView Compatible, Black

$676.60

Part #:

E898054

Elo M60 Pay Mobile Computer E898054 Cellular (USA), Android 10 with GMS, 6-inch HD 1440 x 720 display, Qualcomm 660 Octa-Core Processor, 3GB RAM, 32GB Flash, Wi-Fi, Bluetooth 5.0, Integrated Payment (NFC, EMV, MSR), Barcode Scanner, 8MP Camera, EloView compatible, Bla

$813.45

Part #:

E897667

Elo M60 Pay Mobile Computer E897667 Wi-Fi, Android 10 with GMS, 6-inch HD 1440 x 720 display, Qualcomm 660 Octa-Core Processor, 3GB RAM, 32GB Flash, Bluetooth 5.0, Integrated Payment (NFC, EMV, MSR), Barcode Scanner, 8MP Camera, EloView compatible, Black

$782.85

Part #:

E392249

Elo E392249 DS11 Docking Station for M60/M60S

$112.25

Part #:

E392443

Elo E392443 Elo DC11 4 Slot Device Charger for M60/M60S

$258.67

Part #:

E498250

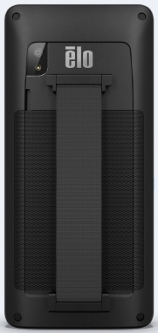

Elo E498250 Elo HS11 Hand Strap for M60/M60S

$37.82

Part #:

E321842

Elo E321842 RB11 Protective Rubber Boot for M60

$46.37

Specifications
Overview
Accessories
Support

Model	Elo M60 Mobile POS System
Part Number(s)	M60C, Cellular (AT&T and T-Mobile), United States - E862945 M60C, Cellular (Open Carrier), Europe - E993295 M60, WiFi, Worldwide - E863128 M60SC (with barcode scanner), Cellular (AT&T and T-Mobile), United States - E898054 M60SC (with barcode scanner), Cellular (Open Carrier), Europe - E897852 M60S (with barcode scanner), WiFi, Worldwide - E897667
Enclosure Color	Black
Processor	Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor
Memory	3GB
Storage	32GB
OS	Android 10 with Google Play Services (AOSP capable) Planned upgrade to Android 12 available with OS 360 subscription
Display	6” Optically Bonded High Definition LCD
Touchscreen	Projective capacitive with Corning Gorilla Glass Water rejection Anti-Fingerprint Coating
Sensor	Light sensor (automatically adjust backlight brightness) Proximity sensor (disable display and touch when user places against head) Accelerometer
Resolution	1440 x 720
Brightness (typical)	430 nits
Contrast Ratio	1500:1
Battery	Rechargeable Li-Polymer, 3.8V/4000mAh Serviceable battery Qualcomm Quick Charge 4
Cellular	Available on cellular SKU’s with user accessible nano SIM slot. LTE US Carriers: AT&T, T-Mobile LTE Europe: Open Carrier For E862945 (M60C), E898054 (M60SC): WCDMA: B2, B4, B5 LTE: B2, B4, B12, B13, B66 For E993295 (M60C), E897852 (M60SC): WCDMA: B1, B8 LTE: B1, B3, B7, B8, B20
GPS	Simultaneous GNSS Receiver for GPS, GLONASS, Galileo and BeiDou AGPS support (for cellular models only)
I/O Ports	USB Type-C for display, charging and data
Camera	8MP Auto-Focus with Flash LED and Flashlight (Torch)
Payment	EMV Contactless ISO 14443-A/B, MiFare, ISO-18092 EMV Chip Card Reader (chip and pin-on-glass) 3-track MSR ISO 7810/7811
Certifications	PCI-PTS 6.0 EMV L1 & L2 Visa PayWave Mastercard PayPass Amex ExpressPay Discover D-PAS Mastercard TQM Apple Pay Google Pay Samsung Pay
Barcode Scanner	SE4720 scan engine (1D/2D Imager)* *on M60S/M60SC models only
Wireless	802.11a/b/g/n/ac with 2x2 MU-MIMO
Bluetooth	Bluetooth 5.0
LED	1x combination Green/Amber LED for battery/charging status 1x combination Blue/Red user programmable LED
Keyboard	On screen keyboard
Audio	Microphone 1W Front facing speaker USB-C headset support
Buttons	Left and Right Programmable buttons Left and Right BCR trigger buttons (for M60S/M60SC BCR SKUs only) Power Button
Dimensions	M60/M60C: 7.32" x 3.40" x 0.77" / 186 mm x 86.4 mm x 19.5 mm M60S/M60SC: 7.32" x 3.40" x 1.27" / 186 mm x 86.4 mm x 32.3 mm
Shipping Box Dimensions	M60/M60C: 8.86" x 5.70" x 2.95" / 225 mm x145 mm x 75 mm M60S/M60SC: 8.86" x 5.70" x 3.82" / 225 mm x 145 mm x 97 mm
Weight (Unpackaged)	M60: 0.79 lbs / 362 g M60C: 0.82 lbs / 370 g M60S: 0.87 lbs / 396 g M60SC: 0.89 lbs / 403 g
Weight (Packaged)	M60: 1.61 lbs / 730 g M60C: 1.63 lbs / 740 g M60S: 1.74 lbs / 789 g M60SC: 1.75 lbs / 795 g
Operating Temperature	0°C to 50°C / 32°F to 122°F
Storage Temperature	-30°C to 60°C / -4°F to 140°F
Humidity	5% to 95% non-condensing
Regulatory approvals and declarations	UL, FCC (US) - Class B cUL, IC (Canada) CB (International safety) CE (Europe) - Class B RCM (Australia) China RoHS
ESD	Class C: 8kV contact, 15kV air
Drop Rating	Multiple 1m drops
Tumble Rating	200 tumbles, 1.6ft./0.5m per IEC 60068-2-32
Warranty	1-year
Extended Warranty Options	3 year warranty coverage + ADP - Elo P/N: E672040 5 year warranty coverage + ADP - Elo P/N: E672239 1 year warranty coverage + AUR + ADP - Elo P/N: E894512 3 year warranty coverage + AUR + ADP - Elo P/N: E672440 5 year warranty coverage + AUR + ADP - Elo P/N: E672646 3 year warranty coverage + ADP + OS 360 - Elo P/N: E893726 5 year warranty coverage + ADP + OS 360 - Elo P/N: E893926 3 year warranty coverage + AUR + ADP + OS 360 - Elo P/N: E894122 5 year warranty coverage + AUR + ADP + OS 360 - Elo P/N: E894322 3 year OS 360 - Elo P/N: E873133 5 year OS 360 - Elo P/N: E873326
OS Support	Complimentary security updates provided for 3 months Optional extended coverage available with Elo OS 360 package
Sealability	IP54 per IEC standard 60529
What's in the Box	Elo M60 Pay USB Type C Charger with Qualcomm Quick Charge 4.0 Quick Install Guide
Expansion Options	MicroSD up to 32GB SDHC and up to 256 GB SDXC Option to support 1x nano-SAM card via a Micro SD slot
Optional Accessories	EM10 Expansion Module - Elo P/N: E863687 DS11 Docking Station - Elo P/N: E392249 DC11 4 Slot Device Charger - Elo P/N: E392443 HS11 Hand Strap - Elo P/N: E498250

Accept Payments anytime. Anywhere
Point of Sale on the go
Brilliant 6-inch display
Choose the model that fits your business
L1 and L3 Certified
L3 Certified
Fast & Easy Scanning
Battery life to cover your shift
One device for everything
Android device management made easy
1 Year Warranty

Accept payments anytime. Anywhere

Designed to support your everyday business, the Elo M60 Pay delivers an enterprise-grade, Android mobile point of sale system ready to help you assist customers.

Point of sale on the go

The Elo M60 Pay offers built-in mPOS capabilities to accept payments, conduct business, and track sales all from the palm of your hand.

Brilliant 6-inch display

Complete with a 6-inch HD touch display, integrated payment, flexible Android 10 OS and Qualcomm 660 octa-core processor, the handheld pos computer provides seamless integration, effortless provisioning and simplified device management via EloView or your preferred 3rd‑party MDM.

Choose the model that fits your business

Are you looking for a cellular or Wi-Fi enabled mobile computer? Do you want an integrated 2D barcode scanner? The Elo M60 Pay has been designed to offer the configuration your business needs.

Elo Pay

Elo Pay is a SaaS based payment gateway solution that easily enables customers to integrate our SDK into their Android application for immediate access to processing payments.

Dip. Tap. Swipe

Accept all forms of payment with the Elo M60 Pay POS terminal. Whether your customers have a physical card or contactless via their mobile phone, the M60 Pay has you covered wherever your customers are – in line, at the counter, table-side or in their seat.

Fast & easy scanning

With the 2D barcode scanner, you can do it all to keep your operations running smoothly. From price checking and taking inventory to line-busting and BOPIS – you’re covered.

Optional Accessories	Part #
EM10 Expansion Module	E863687
DS11 Docking Station	E392249
DC11 4 Slot Device Charger	E392443
HS11 Hand Strap	E498250
Optional Warranties
3 year warranty coverage + ADP	E672040
5 year warranty coverage + ADP	E672239
1 year warranty coverage + AUR + ADP	E894512
3 year warranty coverage + AUR + ADP	E672440
5 year warranty coverage + AUR + ADP	E672646
3 year warranty coverage + ADP + OS 360	E893726
5 year warranty coverage + ADP + OS 360	E893926
3 year warranty coverage + AUR + ADP + OS 360	E894122
5 year warranty coverage + AUR + ADP + OS 360	E894322
3 year OS 360	E873133
5 year OS 360	E873326

Elo M60 Handheld Mobile Computer Spec Sheet

Elo M60 Dimensional Drawing

Elo M60 User Guide
