Touch Dynamic Edge Ultra Counter Mount Kiosk

Printer recessed in base to eliminate possible spillage to cutter and/or print head
Powered by a single internal power source that powers the terminal, printer and rear display
Counter mount and Floor mount Options Available
Next Generation, Aesthetically Pleasing Design
2x USB 2.0, 4x USB 3.0, 2x 3.0 Micro USB, VGA & Internal Speakers
21.5", 18.5", 17" and 15" Screens Offered in both Landscape and Portrait Mode

Touch Dynamic Edge Ultra Counter Mount Kiosk

Custom configurations available. Call 1-435-673-5455

9 Items

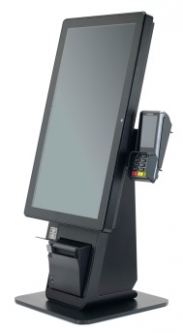

Touch Dynamic Edge Ultra Kiosk 22" PCAP Touch J6412, 8GB DDR4 RAM, 128GB SSD, No OS — Part #: EU18A0NH0NNXXNN 22" Touch Dynamic EU18A0NH0NNXXNN Edge Ultra Kiosk Projected Capacitive Touch Intel Celeron J6412 Elkhart Lake, 8GB DDR4 RAM, 128GB M.2 NVME SSD, **No OS**, Edge Ultra Kiosk Enclosure with TM-M30 with USB and Ethernet, **Counter Top Installation** $2,173.25

Touch Dynamic Edge Ultra Kiosk 22" PCAP Touch J6412, 8GB DDR4 RAM, 128GB SSD, Windows 10 IoT — Part #: EU18A0MH0NNXXNN 22" Touch Dynamic EU18A0MH0NNXXNN Edge Ultra Kiosk Projected Capacitive Touch Intel Celeron J6412 Elkhart Lake, 8GB DDR4 RAM, 128GB M.2 NVME SSD, **Windows 10 IoT**, Edge Ultra Kiosk Enclosure with TM-M30 with USB and Ethernet, **Counter Top Installation** See Price in Cart

Touch Dynamic Edge Ultra Kiosk 22" PCAP Touch J6412, 8GB DDR4 RAM, 128GB SSD, Windows 11 Pro — Part #: EU18A01H0NNXXNN 22" Touch Dynamic EU18A01H0NNXXNN Edge Ultra Kiosk Projected Capacitive Touch Intel Celeron J6412 Elkhart Lake, 8GB DDR4 RAM, 128GB M.2 NVME SSD, **Windows 11 Professional** Digital Key Entitlement, Edge Ultra Kiosk Enclosure with TM-M30 with USB and Ethernet, **Counter Top Installation** See Price in Cart

Touch Dynamic Edge Ultra Kiosk 22" PCAP Touch i3 Tiger Lake, 8GB DDR4 RAM, 128GB SSD, No OS — Part #: EU38A0NH0NNXXNN 22" Touch Dynamic EU38A0NH0NNXXNN Edge Ultra Kiosk Projected Capacitive Touch Intel Processor i3 Tiger Lake, 8GB DDR4 RAM, 128GB M.2 NVME SSD, **No OS**, Edge Ultra Kiosk Enclosure with TM-M30 with USB and Ethernet, **Counter Top Installation** $2,496.03

Touch Dynamic Edge Ultra Kiosk 22" PCAP Touch i3 Tiger Lake, 8GB DDR4 RAM, 128GB SSD, Windows 10 IoT — Part #: EU38A0MH0NNXXNN 22" Touch Dynamic EU38A0MH0NNXXNN Edge Ultra Kiosk Projected Capacitive Touch Intel Processor i3 Tiger Lake, 8GB DDR4 RAM, 128GB M.2 NVME SSD, **Windows 10 IoT**, Edge Ultra Kiosk Enclosure with TM-M30 with USB and Ethernet, **Counter Top Installation** See Price in Cart

Touch Dynamic Edge Ultra Kiosk 22" PCAP Touch i3 Tiger Lake, 8GB DDR4 RAM, 128GB SSD, Windows 11 Pro — Part #: EU38A01H0NNXXNN 22" Touch Dynamic EU38A01H0NNXXNN Edge Ultra Kiosk Projected Capacitive Touch Intel Processor i3 Tiger Lake, 8GB DDR4 RAM, 128GB M.2 NVME SSD, **Windows 11 Professional** Digital Key Entitlement, Edge Ultra Kiosk Enclosure with TM-M30 with USB and Ethernet, **Counter Top Installation** See Price in Cart

Touch Dynamic Edge Ultra Kiosk 22" PCAP Touch Qualcomm Snapdragon 450 1.8Hz, 3GB LV RAM, 32G eMMc — Part #: EU1000AH0NNXXNW 22" Touch Dynamic EU1000AH0NNXXNW Edge Ultra Kiosk Projected Capacitive Touch Qualcomm Snapdragon 450 1.8Hz, 3GB LV RAM, 32G eMMc, **Android 9**, Wireless, Edge Ultra Kiosk Enclosure with M30 USB/Ethernet, **Counter Top Installation** $2,006.93

Overview
Accessories
Support

Touch Dynamic’s Edge Ultra Kiosk is one of the most diverse products ever released from Touch Dynamic. The Edge Ultra Kiosk can accommodate 15”, 17”, 18.5” and 22” Touch Screens to fit the needs of any environment. All these touch screens are HD IPS displays that are touch-sensitive and guaranteed to modernize your business atmosphere. Adding to the customization is the ability to both floor and counter mount the Edge Ultra Kiosk.

The Edge Ultra Kiosk, depending on screen size, can support a variety of CPU’s up to an Intel Quad Core© i7 as well as both Windows and Android operating systems. An ergonomic design, including sought after peripherals such as a pin pad mount (accommodating a variety of different pin pads), MSR, EMV reader, Wi-Fi and 2D barcode scanner all provide convenience and ease-of-use in any space for both employees and customers. Rounding out the peripherals are the always reliable Epson Brand Printers available in the TM-M30II or the TM-T88.

The essential convenience of the Edge Ultra Kiosk is the way it ships to customers. Fully assembled upon shipping, the Edge Ultra Kiosk comes out of the box ready for use. Unbox it, plug in the single power cord and the unit is fully operational, no assembly required.

Upgrades	Part #
Upgrade to 16GB RAM	C-16GBFS4-LV
Upgrade to 256GB SSD	C-256GBSSDWD01
Upgrade to 512GB SSD	C-512GBSSDWD01
Upgrade to 1TB SSD	TBD
Peripherals
Honeywell Compact 2D Imager Module Specialized Performance	CM5680WA-BR0-KITEU1
2D Scanner EasyDL License Key	C-EZDL-LICENSE
Bi-Directional IDTech MSR	QK-MSR
ID Tech Augusta MSR/EMV Includes Bracket	IDEM-25H0000-AUG02
m.2 Wireless Card 802.11 a/b/g/n/ac (Windows Only)	WIRELESS-M2-KIT2
Integrated Webcam	BR-185-WEBCAM
Pin Pad Bracket Options
Mounting Bracket for Verifone VX820	BRACKET-PPKIT-VER400-03
Mounting Bracket for Ingenico IPP320 + IPP325	TBD
Mounting Bracket for Lane	BRACKET-PPKIT-LANE-05
Mounting Bracket for Augusta	BRACKET-PPKIT-AUG-02
Mounting Bracket for PAX S300	BRACKET-PPKIT-PAX-01
Printers
Upgrade to Epson M30 3" Thermal Printer, Black, USB/Ethernet/Serial	M30-SERIAL-UPGRADE
Upgrade to Epson M30 3" Thermal Printer, Black, USB/Ethernet/W-Fi	M30-WIRELESS-UPGRADE
Upgrade to Epson T88 Printer, Black, Ethernet/USB/Wireless	T88-USB-UPGRADE
Mounting Options
Floor Mount Slim Kiosk Stand	KIOSK-EDGEULTRA
Edge Kiosk Wall Mount	ED-WALLMOUNT

Touch Dynamic Edge Ultra Kiosk Brochure
