Touch Dynamic Prism 21.5 Inch All-in-One Touchscreen Computer

Touch Dynamic Prism 21.5 Inch All-in-One TouchScreen Computer
  • Intel Alder Lake or Meteor Lake CPU
  • Up to 48GB memory / Up to 256GB Storage
  • Supports Windows, Linux, & Android OS
  • Mountable on Wall, Counter, or Stand
  • Wi-Fi and Bluetooth Options

Touch Dynamic Prism 21.5 Inch All-in-One TouchScreen Computer

Touch Dynamic Prism 21.5 Inch All-in-One Touchscreen Computer

The Touch Dynamic Prism All-in-One delivers power, flexibility, and reliability for modern retail, hospitality, and enterprise environments. Featuring Intel Alder Lake-N or Meteor Lake Core Ultra processors, up to 48GB memory, and up to 256GB SSD storage, it runs Windows, Linux, and Android 13 with ease. Its 21.5” True- Flat PCAP Multi-Touch display ensures a smooth, responsive experience, while extensive connectivity and optional peripherals, including camera, MSR, and ADA-compliant keypad, keep operations easy and accessible. The Prism is available as a panel PC, countertop POS, or kiosk for ultimate flexibility.

Custom configurations available.  Call 1-435-673-5455

  • Specifications
  • Overview
  • Accessories
  • Support
Motherboard Alder Lake Meteor Lake
CPU / Processor Intel Alder Lake-N: N97, i3-N305 Intel Meteor Lake Core Ultra 5 125U
Memory Up to 32GB DDR4 Up to 48GB DDR5
Storage 128G / 256GB SSD M.2
Supported OS Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows 11 Pro, Linux, Android 13
I/O Ports 2 x USB-A 3.0
4 x USB-A 2.0
1 x USB-C
2 x custom miniDP
3 x RJ48 Serial Port
1 x RJ45 LAN (secondary
LAN option)
1 x RJ11 Cash Drawer
1 x 4-PIN w. lock
(option) 3 x Powered USBs
12V/12V/24V		 4 x USB-A 3.0
2 x USB-A 2.0
1 x USB-C
2 x custom miniDP
3 x RJ48 Serial Port
1 x RJ45 LAN (secondary LAN
option)
1 x RJ11 Cash Drawer
1 x 4-PIN w. lock
(option) 3 x Powered USBs
12V/12V/24V
Wireless Connectivity (option) Wi-Fi 6 & Bluetooth
Audio 1 x 3W Internal Speaker
Power 65W / 19V 120W / 19V
Display 21.5” True-Flat PCAP Multi-Touch (1920 x 1080)
Touch Screen True-Flat PCAP Multi-Touch
Peripheral (options) 5MP Camera
3-Track MSR (USB)
Storm ADA Compliant Key Pad
Mountable on wall, counter, or stand
Certificate FCC Class A,
CE Mark Class A, LVD		 FCC Class B,
CE Mark Class B, LVD
Environment Operating Temp: 32°F to 104°F (0°C to 40°C)
Storage Temp: -4°F to 140°F (-20°C to 60°C)
Humidity: 20%-85% non-condensing
Dimensions 20.5” W x 12.8” H x 1.9” D
13.2 lbs (no base)

The Touch Dynamic Prism All-in-One delivers power, flexibility, and reliability for modern retail, hospitality, and enterprise environments. Featuring Intel Alder Lake-N or Meteor Lake Core Ultra processors, up to 48GB memory, and up to 256GB SSD storage, it runs Windows, Linux, and Android 13 with ease. Its 21.5” True- Flat PCAP Multi-Touch display ensures a smooth, responsive experience, while extensive connectivity and optional peripherals, including camera, MSR, and ADA-compliant keypad, keep operations easy and accessible. The Prism is available as a panel PC, countertop POS, or kiosk for ultimate flexibility.

Accessory Part #


Touch Dynamic Prism 21,5" Data Sheet

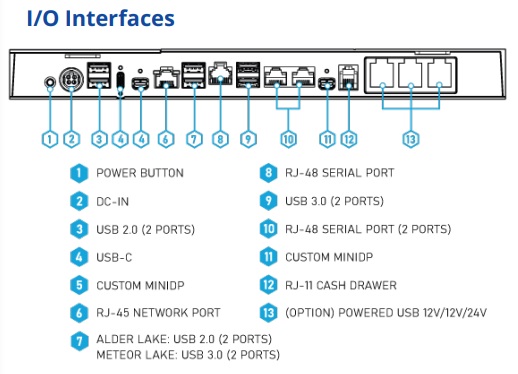

Touch Dynamic Prism 21.5" Interfaces

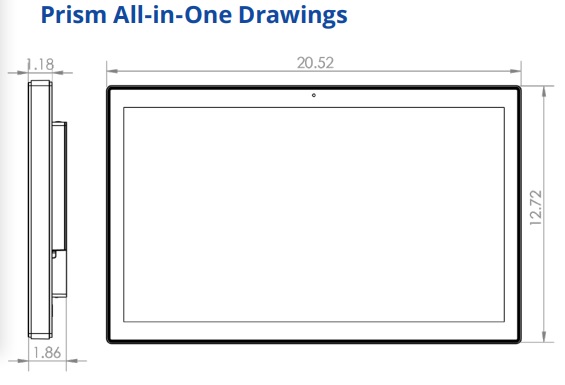

Touch Dynamic Prism 21.5" Dimensional Drawing
