7 Inch Fanless Panel Mount Touch Screen Computer

7 Inch Fanless Panel Mount Touch Screen Computer

  • Projected Capacitive Touch
  • Brightness 350 nits
  • Intel Core i5 CPU
  • Flat Front Panel with IP65 Design
  • Aluminum front bezel and chassis
  • DC 12V power input
  • For options click the ADD TO CART button

7 Inch Fanless Panel Mount Touch Screen Computer

7 Inch ETPC-P070 Fanless Panel Mount Touch Screen Computer
List View
Grid View

  • Specifications
  • Overview
  • Support
Mechanical
Model Name ETPC-P070
Size/Type 7" TFT-LCD
Resolution (pixels) 1024 x 600
Contrast Ratio 500:1
Brightness (cd/m2) 350
Backlight lifetime 40,000hrs
View angle 160°/160°
System
CPU Intel Core i5-3317U
Memory DDR2 4GB, max 8GB
LAN 2 x GbE LAN RJ-45
Storage 1 x SATA
I/O 2 x COM
USB 3 x USB
VGA 1 X VGA
HDMI 1 x HDMI
Audio 1 x Line out
Wi-Fi 1 x Wi-Fi
Color Black (default); SIlver (optional_
Power
Power Input DC 12V
Power Consumption <18W
Driver OS Support

Windows 10 Pro 32-bit, 64-bit
Linux compatible (order no OS version) and load yourself
or No OS
Mechanical

Construction Aluminum front bezel and chassis
IP rating Front IP65
Mounting Panel Mounting, VESA
Dimension (mm) 196.8 (W) x 140.8 (H) x57.1 (D)
Net weight 1.2kgs
Environment
Operating Temperature ~25~75°C
Storage Temperature ~30~80°C
Storage humidity
5 to 95% @40°C
Non-condensing
Certifications CE/FCC Class A
  • Projected Capacitive Touch
  • Brightness 350 nits
  • Intel Core i5 CPU
  • Flat Front Panel with IP65 Design
  • Aluminum front bezel and chassis
  • DC 12V power input
  • For options click the ADD TO CART button

TWAP-ETPC-P070 Data Sheet

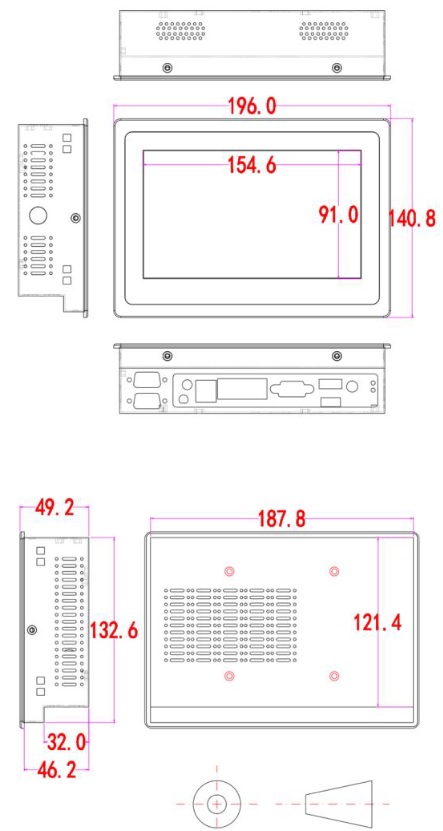

TWAP-ETPC-P070 Mechanical Drawing
