12.1 Inch Fanless Panel Mount Touch Screen Computer

12.1 Inch ETPC-P129 Fanless Panel Mount Touch Screen Computer

  • Resistive or Projected Capacitive Touch
  • Intel Core i3 or Core i5 CPU
  • Supports a wide range of operating systems
  • 2 USB, 2 Serial, 2 Ethernet Ports
  • Flat Front Panel with IP65 Design
  • Solid Aluminum Die-casting Chassis
  • Easily Accessible Storage Expansion Slot
  • DC 9~36V power input
  • For options click the ADD TO CART button

12.1 Inch ETPC-P129 Fanless Panel Mount Touch Screen Computer

12.1 Inch ETPC-P129 Fanless Panel Mount Touch Screen Computer



  • Specifications
  • Overview
  • Support
Mechanical
Model Name ETPC-P129
Display Type 12.1" TFT-LCD
Max Resolution 800 x 600
System
Processor Intel Core i3 or Core i5
Chipset Intel SoC
Memory Onboard DDR2 4GB 800Mz
IDE/SATA 1 x 2.5” SATA HDD
Storage Options
750GB HDD (Standard)
Luminance/Color 450cd/m², 16.2M
Input / Output

Front USB Port 2 x USB 2.0 type A
Ethernet 2 x GbE LAN RJ-45
HDMI 1 x HDMI port
Movable device 1 x SD card slot to 32GB
COM 1 x RS-232/422/485 DB-9 COM 1
1 x RS-232 COM2
Audio 1 x Line Out
View Angle H:160° / V:140°
Power
Power Input DC 9~36
Environment
Operating Temperature 0° to 50°C
Storage Humidity -20~60% (non condensing)
Driver OS Support
  Windows 10 Pro 32-bit, 64-bit
or No OS
Mechanical

Standard Color Silver
Construction Aluminum front bezel and chassis
Mounting Panel, VESA 100x100mm
IP Rating NEMA 4 / IP65 compliant front panel
Dimensions 319mm (W) x 52 (D) x 245mm (H)
Weight 2.5kgs
Certifications CE/FCC Class A

12.1” Fanless Panel Mount Touch Screen Computer

  • Resistive or Projected Capacitive Touch
  • Intel Core i3 or Core i5 CPU
  • Supports a wide range of operating systems
  • 2 USB, 2 Serial, 2 Ethernet Ports
  • Flat Front Panel with IP65 Design
  • Solid Aluminum Die-casting Chassis
  • Easily Accessible Storage Expansion Slot
  • DC 9~36V power input

TWAP-ETPC-P129 Data Sheet

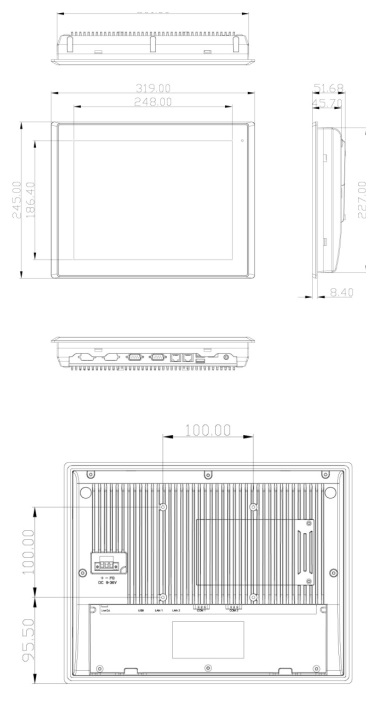

TWAP-ETPC-P129 Mechanical Drawing
