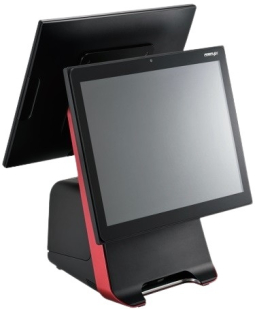

Posiflex BT-8015 15 Inch POS Touchscreen Computer

Posiflex BT-8015 15 Inch POS Touchscreen Computer
  • 15” dual displays
  • Intel Celeron J6412, 1.5MB L2 Cache
  • Intel Core i3-1315UE, 10 MB Intel Smart Cache
  • Intel Core i5-1335UE, 12 MB Intel Smart Cache
  • Intel Core i7-1365UE, 12 MB Intel Smart Cache
  • Portrait or landscape mode
  • Windows 10 IoT Enterprise LTSC 64Bit / Windows 11 IoT Enterprise LTSC 64Bit
  • Projected capacitive multi-touch screen
  • Simple installation with concealed wiring
  • Versatile

Posiflex BT-8015 15 Inch POS Touchscreen Computer

Posiflex BT-8015 15 Inch POS Touchscreen Computer

The Posiflex BT-8015 Mozart BT series achieves groundbreaking modularity, seamlessly integrating independent components including displays, host, and thermal printer, for enhanced functionality and space optimization. The thermal printer is cleverly integrated into the stand, becoming part of the POS terminal base, or it can operate independently.

The Posiflex BT-8015 Mozart BT series POS terminals boast high-performance computing, cutting-edge POS capabilities, and user-friendly design. With modular construction, concealed cables, and sleek elegance, they enhance Posiflex's brand identity. The compact footprint makes them ideal for various commercial spaces, such as convenience stores, hospitality, and fashion boutiques. Offering an additional display for advertising playback, the Mozart BT series seamlessly combines elegance, modernity, and functionality for an aesthetic experience.

Custom configurations available.  Call 1-435-673-5455

  • Specifications
  • Overview
  • Accessories
  • Support
System Configuration Posiflex BT-8015
Processor Intel® Celeron® J6412 (2GHz base frequency, up to 2.6GHz Burst frequency), 1.5MB L2 Cache;
Intel® Core™ i3-1315UE (1.2GHz base frequency, up to 4.5GHz by Intel® Turbo Boost Technology), 10 MB Intel® Smart Cache;
Intel® Core™ i5-1335UE (1.3GHz base frequency, up to 4.5GHz by Intel® Turbo Boost Technology), 12 MB Intel® Smart Cache;
Intel® Core™ i7-1365UE (1.7GHz base frequency, up to 4.9GHz by Intel® Turbo Boost Technology), 12 MB Intel® Smart Cache
System Memory 2x slots 4GB DDR5 SO-DIMM (Max. 64GB)
4800 Mhz 1.1v
Supported Storage 2 x M.2 128GB SSD (supporting SATA Signal and NVMe Signal)
TPM Support TPM 2.0
Intel vPro Support Yes, with Core i5 & i7
RAID Function Yes
OS Support Windows 10 IoT Enterprise LTSC 64Bit / Windows 11 IoT Enterprise LTSC 64Bit
Passive Cooling Fanless
Physical Dimensions
Dimensions (WxDxH) in. 13.6 x 18.3 x 9.7
Display 15” (1024 x 768) LED-backlit TFT LCD
Weight (lbs) 16.3
Display & Touch
LCD 15"
Resolution 1024 x 768
Touch True-Flat Projected Capacitive with Multi-touch support
Connectivity
LAN Port 2 x 2.5 Gigabit Ethernet
Serial Port 1 x DB9 Serial; 1 x RJ-50 Serial (5v/12v support on all COM ports)
Display Port 1x USB type-C (12v Support for Posiflex monitors)
USB Port 2 x USB 3.0; 1 x USB-C
Powered USB Port 2 x 12v (Option 24v)
Extended Storage N/A
Internal Expansion slot 1x M.2 2230 (for WiFi 6/ BT 5.2)
CR PORT 1 x (Controls 2 Drawers); Dual Independent Sensor; Support 24v
Audio 2 x internal 2W speaker; 1 x MIC
Options
Wi-Fi/Bluetooth Wi-Fi 6 AX Series (2x2); BT 5.2

A Harmonious Work of Elegance

Empower Your Space with Independent Excellence

Brilliant Modular Advancements

The Mozart BT series achieves groundbreaking modularity, seamlessly integrating independent components including displays, host, and thermal printer, for enhanced functionality and space optimization. The thermal printer is cleverly integrated into the stand, becoming part of the POS terminal base, or it can operate independently.

Maximize Space, Minimize Clutter

Our Small Footprint POS System Offers Efficiency Without Compromising Functionality

User-friendly Ergonomic Designs

Ergonomic excellence in display design: narrow bezels minimize interference, vertical orientation adapts to trends, adjustable angles ensure user comfort, and peripherals are strategically aligned for enhanced user experience.

Simple Installation with Concealed Wiring

Experience easy installation with no exposed wires, seamless innovation,
and elevated POS functionality through a single USB Type-C connection for the second display.

Windows 11 OS Support

Elevate your POS experience with the Mozart BT Series, supporting the latest operating systems—Windows 11 OS. Offering versatility and powerful performance tailored to your business needs.

Sleek, Harmonious and Elegant

The Mozart BT series POS terminals boast high-performance computing, cutting-edge POS capabilities, and user-friendly design. With modular construction, concealed cables, and sleek elegance, they enhance Posiflex's brand identity. The compact footprint makes them ideal for various commercial spaces, such as convenience stores, hospitality, and fashion boutiques. Offering an additional display for advertising playback, the Mozart BT series seamlessly combines elegance, modernity, and functionality for an aesthetic experience.

Part Number Description
BA-103 i-Button
BA-104 2D Barcode Reader
BA301020000 MSR Attachement, 3-Track Encryption Capable, USB Without FP Reader
BA301020100 MSR Attachement, 3-Track Encryption Capable, USB With FP Reader

Posiflex BT-8015  Product Brochure
