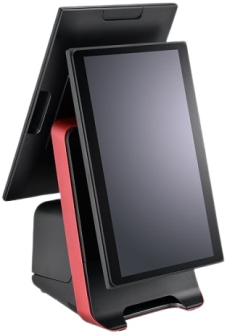

Posiflex BT-3016 15.6 Inch POS Touchscreen Computer

	High Degree of Modularity and Sleek Elegance Powered by Intel Elkhart Lake Processor Supports 15.6" Multi-Touch LCD Concealed Cables and Connectors Supports 3-in-1 Side Attachment (RFID/MSR/FPU/iButton/BCR) Supports Detachable Printer Suitable for Commercial Spaces such as Fashion Boutiques, Hospitality Venues, Convenience Stores, Food and Beverage Establishments, and Multifunctional Storefront
Posiflex BT-3016 15.6 Inch POS Touchscreen Computer
The Posiflex BT-3016 Mozart BT series achieves groundbreaking modularity, seamlessly integrating independent components including displays, host, and thermal printer, for enhanced functionality and space optimization. The thermal printer is cleverly integrated into the stand, becoming part of the POS terminal base, or it can operate independently. The Posiflex BT-3016 Mozart BT series POS terminals boast high-performance computing, cutting-edge POS capabilities, and user-friendly design. With modular construction, concealed cables, and sleek elegance, they enhance Posiflex's brand identity. The compact footprint makes them ideal for various commercial spaces, such as convenience stores, hospitality, and fashion boutiques. Offering an additional display for advertising playback, the Mozart BT series seamlessly combines elegance, modernity, and functionality for an aesthetic experience.
Custom configurations available. Call 1-435-673-5455

Specifications
Overview
Accessories
Support

System-Configuration	BT-3016
Processor	Intel Elkhart Lake J6412 (4C4T, Burst Frequency 2.60 GHz, Processor Base Frequency 2.0 GHz)
System Memory	2 x DDR4 SO-DIMM, max. 32GB
Storage Device	2 x M.2 2280 (support SATA signal)
RAID Function	N/A
Intel vPro Support	N/A
TPM	TPM 2.0
Power Supply	W/O Printer: 24V/60W W/Printer: 24V/120W
OS Support	Windows 10 IoT LTSC Windows 11 IoT LTSC
Display & Touch
LCD	15.6" oTP LCD (typical 400 nits)
Resolution	1920 x 1080, FHD
Touch	PCAP supporting multi-touch
I/O Expansion
Serial Port	2, 1 x DB9 + 1 x RJ50, 5V/12V support on all COM ports
Standard USB Port	2, USB 3.0 x 2
PoweredUSB Port	2 x 12V (option 24V)
LAN Port	2 x 2.5Gbe
Display Port	1 x USB-C (support POSIFLEX 2nd monitor)
CR Port	1, control 2 x cash drawer, support 24V CR
Audio	2 x internal 2W speaker, 1 x MIC
Expansion Slot	1 x M.2 2230 for Wi-Fi 6/BT 5.2
USB-C Port	1
Dimension
Dimension (W x D x H in mm)	376 x 447 x 243
Weight (N. W. in kg)	7.4
Environmental
Operating Condition	0°C - 40°C, 20%RH - 90%RH
Storage Condition	-20°C - 70°C, 10%RH - 90%RH
Factory Option
Camera	1MP Wide angle(FF)
Attachment Options
POS Monitor	PCAP touch TFT LCD: 15" PCAP touch TFT LCD: 15.6" (Landscape / Portrait)
Accessories	BA-103 i-BTN BA-104 2D BCR BA-301 RFID/MSR/FPU 3 in 1 BA-303 MSR / RFID / i-Button
BCR	CD-3301U、CD-3301UB、Handheld stand
Standard Equipped
Printer	PP-7900BT

A Harmonious Work of Elegance

Empower Your Space with Independent Excellence

Brilliant Modular Advancements

The Mozart BT series achieves groundbreaking modularity, seamlessly integrating independent components including displays, host, and thermal printer, for enhanced functionality and space optimization. The thermal printer is cleverly integrated into the stand, becoming part of the POS terminal base, or it can operate independently.

Maximize Space, Minimize Clutter

Our Small Footprint POS System Offers Efficiency Without Compromising Functionality

User-friendly Ergonomic Designs

Ergonomic excellence in display design: narrow bezels minimize interference, vertical orientation adapts to trends, adjustable angles ensure user comfort, and peripherals are strategically aligned for enhanced user experience.

Simple Installation with Concealed Wiring

Experience easy installation with no exposed wires, seamless innovation,
and elevated POS functionality through a single USB Type-C connection for the second display.

Windows 11 OS Support

Elevate your POS experience with the Mozart BT Series, supporting the latest operating systems—Windows 11 OS. Offering versatility and powerful performance tailored to your business needs.

Sleek, Harmonious and Elegant

The Mozart BT series POS terminals boast high-performance computing, cutting-edge POS capabilities, and user-friendly design. With modular construction, concealed cables, and sleek elegance, they enhance Posiflex's brand identity. The compact footprint makes them ideal for various commercial spaces, such as convenience stores, hospitality, and fashion boutiques. Offering an additional display for advertising playback, the Mozart BT series seamlessly combines elegance, modernity, and functionality for an aesthetic experience.

Part Number	Description
BA-103	i-Button
BA-104	2D Barcode Reader
BA301020000	MSR Attachement, 3-Track Encryption Capable, USB Without FP Reader
BA301020100	MSR Attachement, 3-Track Encryption Capable, USB With FP Reader

Posiflex BT-3016 Product Brochure
