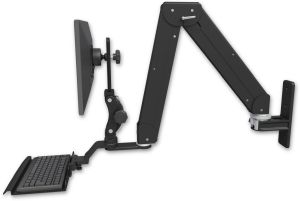

Elite 5220 Paralink double arm LCD wall mount with a 12" keyboard tray

The double arm Elite 5220 w/ Paralink incorporates design features allowing it to support up to 22 lbs (9.9 kg) while providing effortless movement. The Elite allows an LCD to be suspended and pulled out when required. The Elite arm is fully cable managed, gas spring assisted, and provides up to 42" (106.7cm) of vertical and horizontal adjustment from mount to monitor, along with 180° of rotation, making it ideal in medical operating rooms or dental operatories. This wall mounted model has a small 12" (30.5cm) wide flip-up keyboard tray (perfect for the iPad).

Machined out of billet aluminum, this unit has powder coated paint for a durable, lasting finish. Hand assembly ensures that a quality product is shipped to you (4 day lead time) direct from the Oregon factory.

  • Monitor capacity:  22 lbs (10 kg)
  • Maximum reach:  70" (177.8cm)
  • Vertical adj. range:  42" (106.7cm)
  • Horizontal adj. range: 42" (106.7cm)
  • Keyvoard tray size:  12" x 7.5" (30.5cm x 19.1cm)
  • Mounting Surface:  Wall
  • Stowed profile:  8.5" (21.6cm) from wall
  • Arm swivel at mount:  180 degrees*
  • Screen swivel:  180 degrees*
  • Screen tilt:  50 degrees*
  • VESA Interface:  75mm and 100mm
  • Ships out 4 business days after order placed
  • Made in the USA
  • Warranty 5 Years

*Maximum range depends on the arm position and size of monitor.
