Pioneer S516 15.6 Inch POS Touchscreen Computer

15.6" (1920 x 1080)
PCAP Multitouch Touchscreen
IP54 Rated Front Panel Only
Intel Lake N150
8GB Standard (Max 16GB)
128GB SSD or Larger
Windows 11 IoT, Windows 11 Pro
3-Year Warranty

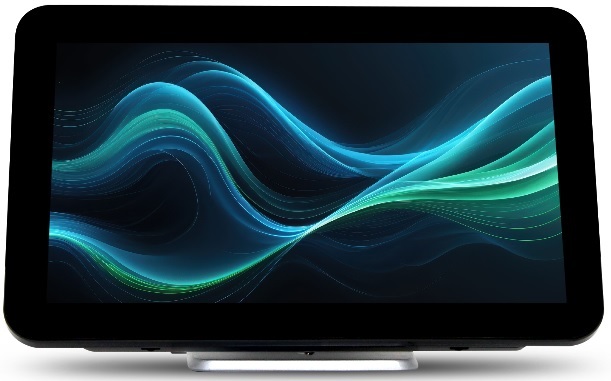

Pioneer S516 15.6 Inch POS Touchscreen Computer

The Pioneer S516 features a newly refined, curved and rounded design while maintaining a slim 1.5″ profile, ideal for wall or desk-mounted setups. This 16″ multi-touch screen offers optional embedded privacy, is scratchproof and spill-resistant, and is built to perform in demanding environments such as Retail, Healthcare, Education, and Manufacturing.

With a minimum warranty of 3 years, and many peripherals to choose from, all computers are built to your unique specifications and shipped from California, USA.

Specifications
Overview
Accessories
Support

Model	Pioneer S516 All-in-One POS Touchscreen Computer
Display Size	15.6″, 1366 x 768 (Optional: 1920 x 1080)
Touchscreen	Resistive, Projective Capacitive
Spill Proof	IP65 Rated Front Panel Only
Processor	Intel Celeron N150
Memory	4GB, up to 16GB
Storage	120GB SSD or larger
Operating System	Win11 LTSC, Win11 Pro, Linux
Network/Ethernet	Intel® 10/100/1000 MBit/s
Connectivities	USB Total: 7 USB 3.0 X 4 Powered USB 24v x1 Powered USB 12v x2 RS-232 x 2 (RJ45 jack) HDMI x 1 (Optional) Wi-Fi 802.11AC/AX (Optional) Cash Drawer Port
Dimensions	15.4″Wx 9.6″H x 2.2″ D
Mounting Options	VESA 75
Weight	With Desktop Stand: 17.4 lbs (7.9 kgs) Wall Mount: 10.3 lbs (4.7 kgs)
Operating Environment	0°C to 40°C, -10° to 55° storage
Warranty	3 Years
Power Supply	150W, AC 100-240V
Agencies	FCC A, CE
Peripherals	Proximity RFID Reader, Webcam, Fingerprint reader (Encryption option), 2D barcode scanner, Tethered Styus, 10.1" LCD or 2x20 rear display

The Pioneer S516 features a newly refined, curved and rounded design while maintaining a slim 1.5″ profile, ideal for wall or desk-mounted setups. This 16″ multi-touch screen offers optional embedded privacy, is scratchproof and spill-resistant, and is built to perform in demanding environments such as Retail, Healthcare, Education, and Manufacturing.

With a minimum warranty of 3 years, and many peripherals to choose from, all computers are built to your unique specifications and shipped from California, USA.

Accessories	Part Number
Proximity RFID Reader
Webcam
Fingerprint Reader
2d Barcode Scanner
Tethered Stylus
Second Display (10.1")
2x20 Rear Display

Pioneer S516 Product Data Sheet (PDF)
