CipherLab RS20 Retail Mobile Computer

Lightweight and Pocketable for One-Handed Use
On-Device AI OCR for Faster Data Capture
One Device for Flexible Retail Tasks
A Mobile Computer That Reflects Your Brand
Pic'n Fill Edge AI OCR
1 Year Standard Warranty

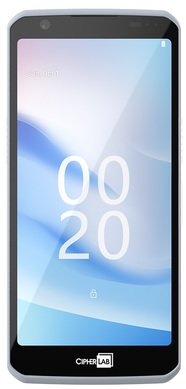

CipherLab RS20 Retail Mobile Computer

The CipherLab RS20 is a purpose-built retail mobile computer for frontline teams in grocery, apparel, and convenience retail. It pairs a lightweight, ergonomic design with enterprise-grade features, including Pic'n Fill Edge AI OCR, flexible RFID, and under-display NFC - to help store associates work faster, reduce errors, and improve customer experience from receiving to checkout.

	Item	RS20
Performance	Operating System	Android 16 upgradable to Android 18 (GMS & AER Certified)
	CPU	Octa-core Processor 4 x A78 2.6GHz + 4 x A55 2GHz
	Memory	6GB RAM / 64GB Flash
	Expansion	Micro SD card socket, supports up to 2TB capacity
	Operating Power	3000 mAh Li-Polymer Battery (Typical), Supports Hot Swap (up to 30 seconds)
	Working Hours	12 hours (SE4780 Scan Engine; scanning per 20 sec, LCD 50% backlight, speaker on at 25°C)
	Alert	Power LED (Red/Green), Notification LED (Blue/Green), Haptic Feedback (LRA)
	Interface Supported	Type-C interface: USB 2.0 OTG, Rear Expansion Connector (10-pin); Supports RFID/Accessories, 2-pin Charging Interface via charging cradle
Wireless Communication
	WLAN	Wi-Fi 6E (802.11ax); IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w; Tri-band Antenna (2.4GHz & 5GHz & 6GHz); 802.11r (fast roaming), 802.11 v/k (Voice-Enterprise), IPv4, IPv6, WPA3

	WPAN	Bluetooth 5.4 (BR/EDR + BLE)
Data Capture	Barcode Scanning	Supports 1D/2D Scan Engine
	Camera	Rear Camera: 16 MP PDAF Autofocus, LED Flash; Front Camera: 8MP Fix focus
	RFID Read / Write	Support ISO 14443 Type A and B, ISO 15693, MIFARE, FeliCa, NFC Forum Card Emulation and Reader Mode, FeliCa M Class compliant
Physical Characteristics	Display	5.5-inch TFT HD (720 x 1440), 450 nits (typical)

	Touch Panel	Multi-touch capacitive display, Glass with Anti-Fingerprint (AF) coating
	Interactive Sensor Technology	Proximity Sensor, 3-axis Accelerometer, Gyroscope
	Keypad	Right/Left Trigger key, Right FN key (User definition), Volume up/down key, Power key
	Audio	Built-in Speaker with Smart Amplifier, Built-in Receiver, Bluetooth Headset Support (HFP 1.6, Wideband Speech); Dual Microphones with Noise Reduction and Echo Cancellation
	Dimensions (L x W x D)	153.8 x 71.3 x 12.8 mm
	Weight	198g (with 3000mAh battery)
User Environment	Operating temperature	-10°C to 50°C / 14°F to 122°F
	Storage Temperature	-30°C to 70°C / -22°F to 158°F (without battery); sharp temperature change, dewing or freezing not allowed (battery storage temperature refer to battery cell's spec)
	Humidity (Non-Condensed)	Operating Humidity: 10% to 90%; Storage Humidity: 5% to 95% (sharp temperature change, dewing or freezing not allowed)
	Impact Resistance	IP65 (with battery installed). Drop Specification: Multiple 1.2m drops to concrete at room temperature per MIL-STD-810H; Multiple 1.5m drops to concrete with Rubber Boot per MIL-STD-810H. Tumble Specification: 500 tumbles (1,000 impacts) at 0.5m; 500 tumbles (1,000 impacts) at 1.0m with Rubber Boot; IEC 60068-2-31
	Electrostatic Discharge	IEC 61000-4-2, ±15 kV Air discharge, ±8 kV Contact discharge
	Regulatory Compliance	Compliant with regional regulatory certifications, RoHS compliant: Yes; Surge Protection: IEC 61000-4-5 (8/20us waveform), ±250V
Development Support	Android 16.0 SDK, HTML5 API, Reader API (Java/Xamarin/.NET MAUI)
Application Software	Reader Config, Terminal Emulation, Button Assignment, Device Health Dashboard, LogGen, AppLock, A-Demo, Ping Tool, Enterprise Settings, BarcodeToSetting, EZConfig, Ezedit, UHF_RFID Service, Chrome, Pic'n Fill OCR
Certified Application	SOTI MobiControl, Ivanti, 42Gears SureMDM, ReMoCloud, ReMoCloud Express, EnDeCloud, WMDS, Edge MDM
Accessories	Single charging cradle, Single charging and communication cradle, 4-slot battery charger, Hand strap, Wrist Strap, Rubber boot, Screen protector, Shoulder strap, Pistol grip, UHF RFID reader
Warranty	1 year
