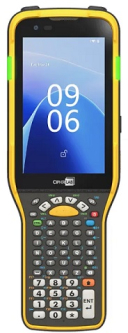

CipherLab RK96 Industrial Mobile Computer

CipherLab RK96 Industrial Mobile Computer
  • Empowering Next-Gen Wireless Applications
  • Larger and More Accurate Keypads for Enhanced Hands-On Efficiency
  • Enhanced Asset Management and User Identity
  • Accelerating Data Entry and Digitalization with Pic ‘n Fill OCR
  • Smart Android Management with Faster Deployment
  • Android 15 (Upgradable to Android 18)
  • Support Wi-Fi 7, 2x2 MU-MIMO and Bluetooth 6.0
  • 38/41/47/53 Keypad Options
  • 3 Year Warranty

CipherLab RK96 Industrial Mobile Computer

CipherLab RK96 Industrial Mobile Computer
The CipherLab RK96 Industrial Mobile Computer enhances warehouse operations by delivering exceptional performance and connectivity. Powered by the Qualcomm Q-6690 Octa-core CPU, the CipherLab RK96 enables smooth multitasking and real-time data transmission through Wi-Fi 7 and Bluetooth 6.0. It is designed for durability and productivity, featuring a 7000mAh high-power battery that provides up to 14 hours of continuous use. The Pic 'n Fill OCR, driven by Edge AI technology, allows for rapid form auto-filling with a single snapshot, streamlining workflows for daily tasks. And its ergonomic keypad design ensures comfort and accuracy, even when operating with gloves. This makes the CipherLab RK96 an ideal handheld device for modern warehouse productivity.
List View
Grid View
  Item RK96
Performance Operating System Android 15 (GMS and AER certified) ,Upgradable to Android 181
CPU Qualcomm Q-6690 Octa-core, up to 2.9GHz, Edge AI enabled
Memory 128GB FLASH / 8GB RAM
Expansion Micro SD Slot With SDHC (up to 32 GB) and SDXC (up to 2TB) Support
Operating Power Standard: Rechargeable Li-ion : 3.635V, 7000 mAh (25.45 Wh)
Hot swap battery backup with temporary session persistence
Working Hours Standard: Min. 14 working hours
Alert LED indicatores for RF, charging status, scanning status
2 rectangle LED at sides / Haptic feedback vibration / Speaker with smart amplifier driver
Interface Supported USB 3.1 Gen 1 Type-C / USB 2.0 with OTG
Wireless Communication WLAN security WEP, WPA (PSK, TKIP), WPA2 (AES, PSK), WPA-1X (TKIP,EAP-TLS, PEAP), WPA2-1X (AES, EAP-TLS, PEAP) ,802.1x (EAP-TLS, PEAP)
AES-CCMP, WPI-SMS4, WPS2.0, WAPI, EAP-TTLS (PAP, MSCHAP, MSCHAPv2), PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD
WLAN IEEE 802.11 a/b/g/n/ac/ax/be/d/h/i/r/k/v/w ; Wi-Fi 7 (802.11be) , IPv4, IPv6, 2x2 MU-MIMO
Additional WLAN Features 802.11r (fast roaming), 802.11 v/k (Voice-Enterprise) ,dual-band simultaneous(DBS),high-band simultaneous(HBS), tri-band 2.4GHz/5GHz/6GHz Multi-Link Operation (MLO) and eMLSR 320 MHz
WPAN Bluetooth® Class II, V6.0 dual mode, V2.1 with Enhanced Data Rate (EDR); BLE long range
Data Capture Barcode Scanning 1D /2D Imager (SE4750SR/SE4750MR; Extended-Range SE5800)
Camera Rear: 16 megapixels PDAF with LED flash and Optical Image Stabilization (OIS) / Front : 5 megapixels
NFC Supports ISO14443A, ISO14443B, ISO15693, Mifare, Felica (Peer-to-Peer, Card Reader, Card Emulation)
Physical Characteristics Display 4.3” WVGA color display, Capacity Touch supports bare/wet/gloved finger and stylus inputs, Corning Gorilla Glass
E-ink Display 1.3" e-INK 144x200 pixel; display color: Red/Yellow/Black/White
Touch Panel Corning® Gorilla® Cover Glass, Capacitive touch supports stylus, bare or gloved fingertip input multi-touch, allow water rejection and wet finger
Interactive Sensor Technologyy Light sensor, Proximity sensor, Motion sensor, E-compass, Gyroscope,Temperature sensor for Cold Storage
Keypad 38-Key/41-Key Numeric/Function Keypads, 47-Key/53-Key Alphanumeric Keypads with LED backlight
Voice and Audio PTT voice ; Speaker, Microphones with noise reduction and echo cancellation, Bluetooth® headset
Size (LxWxH ) 227.6 mm x 79.8 mm x 43 mm (terminal) / 227.6 mm x 79.8 mm x 167.5 mm (Gun type)
Weight Standard:538.2 g (7000 mAh) with 2D imager
User Environment Operating temperature3 Standard: -20°C to 50°C / -4°F to 122°F
Storage Temperature -30°C to 70°C / -22°F to 158°F
Humidity (Non-Condensed) Operating 5% to 95% / Storage 5% to 95%
Impact Resistance IP65 / 1000 (1 m) Tumbles
Standard: 1.8 m / 2.4 m with Rubber Boot, multiple drops onto concrete (MIL-STD-810G), crossing operating temperature
Electrostatic Discharge ± 15 kV Air Discharge, ± 8 kV Contact Discharge
Regulatory Compliance FCC / BC / CA65 / TSCA/ NCC / BSMI / CE / WEEE / RoHS / REACH / Erp / BIS/ WPC /IC / NrCAN / RCM (the regulatory compliance for WWAN model is available on request, NRE and MOQ may apply)
Development Support CipherLab API and Android 15 Standard API
Application Software Reader Config, Terminal Emulation, Button Assignment, Device Health Dashboard, LogGen, AppLock, A-Demo, Configuration, Ping Tool, Software Trigger key, Enterprise Settings, SIP Controller, BarcodeToSetting, Pic 'n FillTM OCR
Certified Application SOTI MobiControl, Omnissa Workspace ONE (Vmware AirWatch), Ivanti, ReMoCloud, ReMoCloud Express, EnDeCloud, StayLinked, Springdel
Accessories Snap-on Cable (USB), Pistol Grip, Rubber Boot, 4-slot Battery Charger, 5-slot Terminal Charging Cradle, 20-slot Battery Charger, Multi-slot Charging Cradle with Battery Charger, Charging and Communication Cradle, Hand Strap,Shoulder Strap, Belt Holster for Device with Pistol Grip,Pistol Grip Strap
Warranty 3 year
