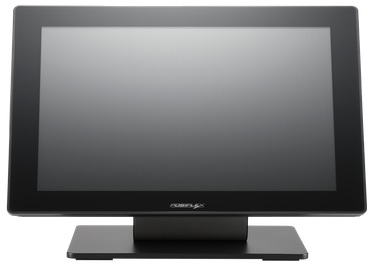

Posiflex RT6016-G2 Fanless POS Touch Screen Terminal

Posiflex RT6016-G2 Fanless POS Touch Screen Terminal
  • 15.6" True Flat PCAP Multi-touch Display
  • Powered by Intel's Tiger Lake Core Processors
  • Fan-Free Design
  • Clean Cable Management
  • Easy Serviceable Design with Removable Back I/O Cover
  • Support Customer Line Display or 2nd Display

Posiflex RT6016-G2 Fanless POS Touch Screen Terminal

The Posiflex RT-6000 Series radiates in its new design – featuring an ultra-slim and sleek look that exhibits elegance. It is uncompromising to the space requirements and provides better cable management and easy maintenance. The new RT-6000 Series is taking POS terminal design into the next level, setting your brand image apart from the others.  Posiflex RT6016-G2

With an intelligently designed rear cover that can be simply removed without tools, the Posiflex RT Series can be quickly serviced with ease. Its advanced cable management design allows for less cable clutter. In addition, the innovative folding base design allows you to ship in a compact package - even with an optional secondary display connected to the unit - saving shipping costs and valuable storage space.  Posiflex RT6016-G2

Custom configurations available.  Call 1-435-673-5455

  • Specifications
  • Overview
  • Accessories
  • Support
Model Posiflex RT6016-G2 Fanless POS Touch Screen Terminal
Processor Intel Core i3-8145UE, 4MB Cache, 2.20GHz
Intel Core i5-8365UE, 6MB Cache, 1.60GHz
System Memory 2x slots 4GB DDR4 SO-DIMM 2400MHz 1.2V (Max. 32GB)
TPM Support TPM 2.0
Storage Device 128GB SSD or higher. Up to two drives
OS Support Windows 10 IoT LTSC / Windows 11 IoT LTSC
Touch True-Flat Projected Capacitive with Multi-touch support
Physical Dimensions
Dimensions (WxDxH) mm 402 x 207 x 297
Display 15.6”; 16:9 ratio; 1920x1080
Weight (lbs) 5
Connectivity
LAN Port 10/100/1000 Mb x 1
Serial Port 3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
Display Port 1 x VGA (proprietary connector) + 1 x mini-DP
Audio Internal 2W speaker x 1
CD Port 1, control 2 CR via optional Y-cable, supporting 24V cash drawer
Options
Wi-Fi M.2 Wi-Fi/BT module
Camera 1MP wide angle camera
AG GLass Cannot coexist with built-in camera
Included Items

Power Adapter
Power Cable
User Manual
Recovery CD

The Posiflex RT6026 radiates an ultra-slim design and a sleek look that exhibits sheer elegance. It is uncompromising to the space requirements and provides better cable management and easy maintenance. The RT6000 is taking POS terminal design into the next level, setting your brand image apart from the others.

Slim yet Powerful

With its sleek contours, ultra-slim body, and linear rear cover surface, the RT6000 Series features a 15” (standard) or 15.6” (widescreen) PCAP touch screen, and full suite of ports that are hidden in the clean rear cover. No screws can be found on its surface maintaining a neat and sleek look.

Clean Cable Management

Advanced cable management design delivers a truly clutter-free station. The standard base can house the optional Powered USB or USB extension module, while the optional base integrates a UPS backup (RB5000) for the event of a power failure.

Save Your Time and Money

The terminal can be shipped with customer line display or 10” 2nd customer facing LCD display attached and folded, which results in reduction of the package size and weight saving deployment time and shipping costs.

Patented Fanless Technology

Easy to clean and very durable - its front is dust and water resistant. The patented fanless technology allows the unit to run silently and provides a long service life.

Faster Installation and Serviceability

Rear cover can be easily and toolessly removed, which allows for faster installation and serviceability.

Part Number Description
PD-2610UE-B 2x20 VFD rear mounted customer display, USB interface (USB/VCOM selectable) for RT series, black
RA-301-15 3-in-1 Attachment for 15” RT series with 3 track MSR, optional fingerprint sensor + 2D scanner
RF-330 RFID reader module with HID interface, KB simulation for RA-103 attachment with one RFID tag, selectable to read ID only
PD-2610 2X20 VFD Rear Mount Customer Display
LM-4010 Secondary 9.7” LCD Display (4:3 Ratio 1024 x 768) for 15” RT Series
TM-4010 Secondary 9.7” LCD Touch Monitor (4:3 Ratio 1024 x 768) for 15” RT Series
LM-4011 Secondary 10.1” LCD Display (16:9 Ratio 1280 x 720 resolution) for 15.6” RT Series
TM-4011 Secondary 10.1” LCD Touch Monitor (16:9 Ratio 1280 x 720 resolution ) for 15.6” RT Series
RA-101 3 Track Encryption Capable MSR for 15” or 15.6” RT Series
RA-104 2D Barcode Imager attachment for 15” or 15.6” RT series
RA-301 3 Track Encryption Capable MSR, with optional Fingerprint Sensor and 2D Barcode for 15” or 15.6” RT series
RF-330 RFID Reader Module for RA Attachments
RT-560 4 Port Integrated USB Expansion Hub for RT Series
PU-460 Powered USB Expansion Hub, (1) 24V USB 2.0 plus (1) 12V USB 2.0 Port for RT Series
WB-4200 Wall Mount Bracket for RT Series

Posiflex RT-6016-G2 Product Brochure

Posiflex RT6016-G2 User Manual
