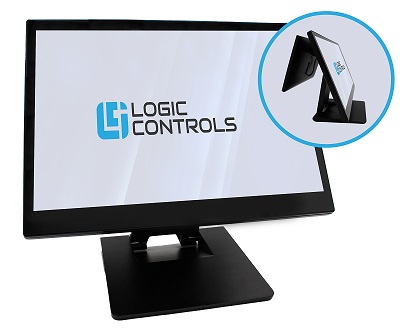

Logic Controls LogicTouch Elite All-in-One Touchscreen Computer

Logic Controls LogicTouch Pro N97 All-in-One Touchscreen Computer
  • 15.5" LCD Panel Display
  • Resolution: 1920 x 1080
  • True-Flat PCAP multi-touch screen
  • Intel i3-N305 Processor
  • OS:  Windows/Linux/ChromeOS
  • Flexible mounting options (Stand included)
  • IP54 Rated for Water and Dust Resistance
  • Heat Resistant up to 140°F (60°C)
  • Universal VESA Mount
  • 3-Year Warranty

Logic Controls LogicTouch Pro N97 All-in-One Touchscreen Computer

Logic Controls LogicTouch Elite 15.5 Inch All-in-One Touchscreen Computer

The Logic Controls LogicTouch Elite 15.6" All-in-One POS Terminal features a sharp high-definition screen plus a second 11.6" customer-facing screen for an enhanced experience during checkout.  The second screen can increase sales and engagement with marketing messages, special deals and more during the checkout experience.

Engineered with high performance Intel i3 processor and featuring native support for Windows, Android and Linux, this Logic Controls Elite POS model has the power to support demanding applications and also ships with a variety of ports for easy connectivity to accessories.

  • Specifications
  • Overview
  • Support
Model Logic Controls LogicTouch Elite All-in-One Touchscreen Computer
Processor Intel i3-N305
Memory 1 x DDR4 S_DIMM - 16 GB
Storage 128GB SSD
Expansion 1 M.2 M Key for SATA or NVME SSD
Display
Size and Resolution 15.6" 1920 x 1080
2nd Display 11.6" 1920 x 1080
Touch Screen True-Flat PCAP multi-touch
I/O Ports

USB-Type A 4 x USB 2.0; 2 x USB 3.0
USB Type-C 1 x USB3.0 full functioned (DP / PD 5V/3A,12V/3A)
Serial Port 3 x RJ58 (standard RS-232) (default 0V; 5V,12V)
LAN 1 x RJ50
Cash Drawer 1 x RJ11
DC Jack 1 X 4PIN (with Latch)
Optional I/O
PoweredUSB 2 x PoweredUSB 12V & 1x PoweredUSB 24V
Power
Power Adapter 65W/19V (120W/19V with 2x PUSB 12V & 1x PUSB 24V)
Peripheral (Option)
MSR 3-Track MSR (USB)
Fingerprint Fingerprint reader (USB)
iButton iButton (USB)
Certificate
ENC & Safety FCC Class A, CE Mark, LVD
Environmental
Operating temperature 0°C ~35°C, (32°F ~95°F)
Storing temperature -20°C ~ 60°C (-4°F ~ 140°F)
Relative Humidity 20% ~ 85% RH nom-condensing
Dimensions
L x W x D (Without Stand) 369.28mm x 234.26mm x 35.75mm (14.54in. x 9.22in. x 1.41in.)
L x W x D (With Stand) 369.28mm x 188.65mm x 294.31mm (14.54in. x 7.43in. x 11.59in.)
Weight (Without Stand 6.2lbs (2.81 JG)
Weight (With Stand) 10.4Llbs (4,72 KG)
Active Screen Area
Mounting
VESA Mount 100 x 100
OS Supported
  WIndows 10 IoT Enterprise (optional Windows 11), Linux, ChromeOS

The Logic Controls LogicTouch Elite 15.6" All-in-One POS Terminal features a sharp high-definition screen plus a second 11.6" customer-facing screen for an enhanced experience during checkout.  The second screen can increase sales and engagement with marketing messages, special deals and more during the checkout experience.

Engineered with high performance Intel i3 processor and featuring native support for Windows, Android and Linux, this Logic Controls Elite POS model has the power to support demanding applications and also ships with a variety of ports for easy connectivity to accessories.

  • 15.5" LCD Panel Display
  • Resolution: 1920 x 1080
  • True-Flat PCAP multi-touch screen
  • Intel i3-N305 Processor
  • OS:  Windows/Linux/ChromeOS
  • Flexible mounting options (Stand included)
  • IP54 Rated for Water and Dust Resistance
  • Heat Resistant up to 140°F (60°C)
  • Universal VESA Mount
  • 3-Year Warranty

Logic Controls LogicTouch Elite Product Data Sheet
