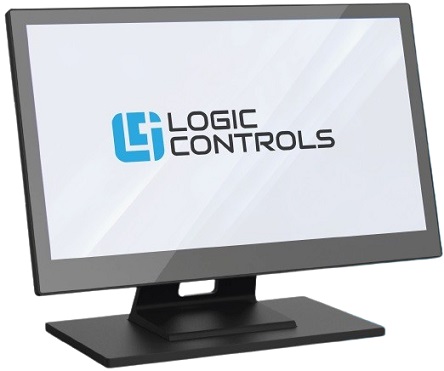

Logic Controls Essentials Kitchen Display System Terminal

Logic Controls Essentials Kitchen Display System Terminal
  • Supports Android 13.0
  • MTK G700 Processor
  • 15.6" 1820 x 1080 resolution screen
  • True-Flat PCAP multi-touch screen
  • IP54 Rated (Front)
  • 1-Year Warranty

Logic Controls Essentials Kitchen Display System Terminal

Logic Controls Essentials Kitchen Display System Terminal

Experience seamless kitchen operations with the Logic Controls Essentials All-In-One Kitchen Display System Terminal. Built to withstand the demands of fast-paced restaurant environments, our KDS solution delivers reliability, efficiency, and a sleek design.

The Logic Controls Essentials Android 15-inch KDS Terminal features a wide high-definition touchscreen, multiple connectivity ports, and full support for the Android operating system. Engineered for durability, it boasts an IP54-rated front panel, offering protection against dust and water-ensuring optimal performance in demanding kitchen conditions.

  • Specifications
  • Overview
  • Support
System Logic Controls Essentials Kitchen Display System Terminal
Motherboard G17
Processor MTK G700
Memory 4GB LPDDRX7
Storage 64GB eMMC
Display
Size and Resolution 15.6" 1920x1080
Touch Screen True-Flat PCAP multi-touch
Backlight Lifespan Up to 30,000 hours
I/O Ports
USB Type A 4 x USB 2.0
USB Type C 1 x USB 3.0 (DP / PD 5V/2A, 12V/1A)
Serial Port 1 x RJ-50 (10P10C)
LAN 1 x RJ-45 (802.3bt PoE++)
Cash Drawer 1 X RJ-11
Power Button 1
Communication
WLAN+BT 802.11ax, BT5.2
Audio Speaker 1x3W
Power 12V 3A Power Supply
Peripheral (Option)
MSR 3-Track MSR (USB)
Fingerprint Fingerprint reader (USB)
iBitton iButton (USB)
Customer Display LCM display 2 x 20 characters (USB)
2nd Display 11.6" 2nd display
Certificate
EMC & Safety  FCC Class A, CE Mark, LVD
Environmental
Operating temperature 0°C ~ 35°C (32°F ~ 95°F)
Storing temperature -20°C ~ 60°C (-4°F ~ 140°F)
Relative Humidity 20% ~ 85% RH non-condensing
Dimensions
Without Stand 373.65mm x 237.86nn x 22.08nn (14.7" x 9.36" x 1.30")  Weight 3 lbs
With Stand 373.54mm x 174.66mm x 283.03mm (14.8" x 6.9" x 11.1")  Weight 7kbs
Mounting
VESA Mont 75 x 75
OS Supported
OS Supported Android 13.0

Experience seamless kitchen operations with the Logic Controls Essentials All-In-One Kitchen Display System Terminal. Built to withstand the demands of fast-paced restaurant environments, our KDS solution delivers reliability, efficiency, and a sleek design.

The Logic Controls Essentials Android 15-inch KDS Terminal features a wide high-definition touchscreen, multiple connectivity ports, and full support for the Android operating system. Engineered for durability, it boasts an IP54-rated front panel, offering protection against dust and water-ensuring optimal performance in demanding kitchen conditions.

  • Supports Android 13.0
  • MTK G700 Processor
  • 15.6: 1820 x 1080 resolution screen
  • True-Flat PCAP multi-touch screen
  • IP54 Rated (Front)
  • 1-Year Warranty

Logic Controls Essentials Kitchen Display System Terminal
