17 Inch Touch Screen Display

17 Inch IP66 Touch Screen Monitor
  • 17" TFT LCD Resistive Touch
  • Front Panel IP66 Rating
  • OSD Control on the front (Optional)
  • 1000nits High Brightness (Optional)

17 Inch IP66 Touch Screen Monitor

17 Inch Touch Screen Display
List View
Grid View

  • Specifications
Display
Model Name ETPM-B17R
Size/Type 17" TFT
Resolution (pixels) 1280 x 1024
Number of Colors 16.2M
Brightness (cd/m2) 350 Standard; 1000 nits (option)
Backlight lifetime 40,000 hrs
Viewing Angle 170°H/160°V
System
VGA 1 x VGA
DVI 1 x DVI
HDMI 1 x HDMI
AV None
S-Video None
Touch Input USB
OSD Control 5 buttons on the back side
OS Support Windows 10 / Linux
Power
Power Input DC 12V
Power Consumption <20W
External Power AC100~240V
Mechanical
Construction Metal Chassis
IP rating Front IP66
Mounting VESA 100 x 100
Dimension (mm) 330 x 279 x 37636 x 255 x 40.8
Net weight 8.5 kg
Environment
Operating Temperature -10°~60°C
Storage Temperature -20° ~80°C
Storage humidity 10 to 90% @40°C Non-condensing
Certification CE/FCC Class A
In the Box
  1 x Touch Monitor
  1 x HDMI cable
  1 x VGA & USB Touch Cable
  1 x AC Adapter
Documentation
  TWAP-ETPM-B17R Brochure

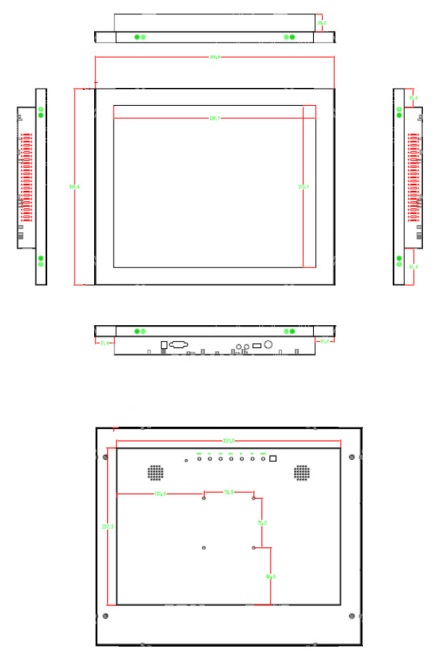

  TWAP-ETPM-B17R Mechanical Drawing
