7 Inch Fanless Panel Mount Touch Screen Computer

7 Inch Fanless Panel Mount Touch Screen Computer

  • 7” TFT LCD
  • Intel Core i5 -4200U/i5-6200U CPU
  • Fanless, True-Flat Design (PCAP touch) with IP66 Rating
  • Projected Capacitive Touch
  • Brightness 350 nits
  • Fanless, True-Flat Design with IP66 Rating
  • Aluminum front bezel and chassis
  • For options click the ADD TO CART button

7 Inch Fanless Panel Mount Touch Screen Computer

7 Inch ETPC-P070C Fanless Panel Mount Touch Screen Computer

  • Specifications
  • Overview
  • Support
Mechanical
Model Name ETPC-P070C
Size/Type 7" TFT-LCD
Resolution (pixels) 1024 x 600
Contrast Ratio 500:1
Brightness (cd/m2) 350
Backlight lifetime 40,000hrs
View angle 160°/160°
System
CPU Intel Core i5-4200U/i5-6200U
Memory DDR2 4GB, max 8GB
LAN 2 x RJ-45
Storage 1 x MicroSATA
COM 1 x RS232
USB 4 x USB
VGA 1 X VGA
HDMI 1 x HDMI
Audio 1 x Line out
Power
Power Input DC 12~30V
Driver OS Support

Windows 10 Pro 32-bit, 64-bit
Linux compatible (order no OS version) and load yourself
or No OS
Mechanical

Construction Aluminum front bezel and metal chassis
IP rating Front IP66
Mounting Panel Mounting, VESA mount
Dimension (mm) 210.6 (W) x 145.6 (H) x 64.2 (D)
Net weight 1.2kgs
Environment
Operating Temperature ~25~75°C
Storage Temperature ~30~80°C
Storage humidity
5 to 95% @40°C
Non-condensing
Certifications CE/FCC Class A
  • 7” TFT LCD
  • Intel Core i5 -4200U/i5-6200U CPU
  • Fanless, True-Flat Design (PCAP touch) with IP66 Rating
  • Projected Capacitive Touch
  • Brightness 350 nits
  • Fanless, True-Flat Design with IP66 Rating
  • Aluminum front bezel and chassis
  • For options click the ADD TO CART button

TWAP-ETPC-P070C Data Sheet

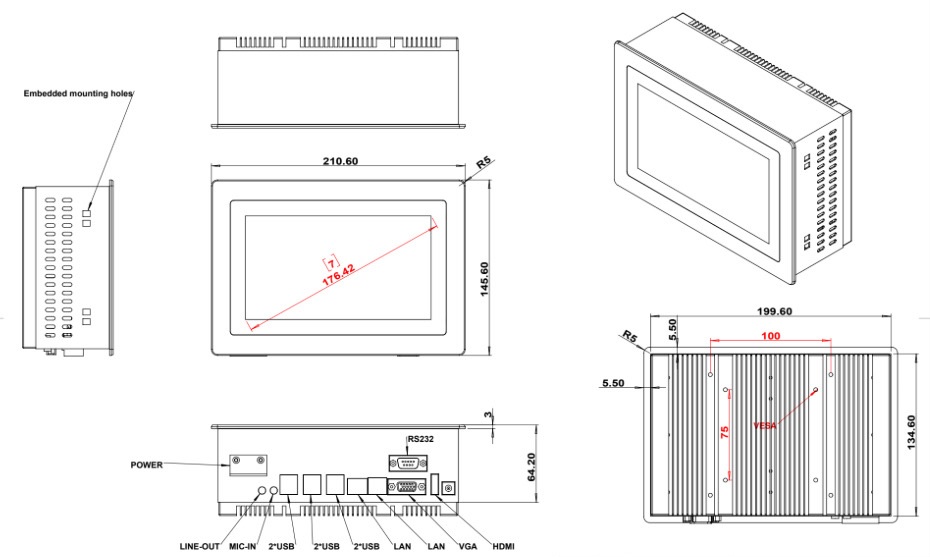

TWAP-ETPC-P070C Mechanical Drawing
