8 Inch Panel Mount Touch Screen Computer

8 Inch EPC-T008 Panel Mount Touch Screen Computer

  • Intel Core i5-4200U 1.6GHz
  • Supports Multi-Touch
  • Flat Front Panel with IP65 Design
  • Memory up to 8GB DDR3L 1333MHz
  • Resistive Touch or Projected Capacitive Touch
  • High Brightness 1000/1500 nits (optional)
  • For options click the BUY NOW button

8 Inch EPC-T008 Panel Mount Touch Screen Computer

8 Inch EPC-T008 Panel Mount Touch Screen Computer

 Click  Part # Name     Price
TWAP-EPC-T008P 8" Panel PC, J1900, 4GB RAM, 500GB HDD, Win 7, DC 12V, Projected Capacitive Touch $990.00
TWAP-EPC-T008R 8" Panel PC, J1900, 4GB RAM, 500GB HDD, Win 7, DC 12V, Resistive Touch $974.60
TWAP-EPC-T008P-i5 8" Panel PC, i5-3317U, 4GB RAM, 500GB HDD, Win 7, DC 12V, Projected Capacitive Touch $1,233.10
TWAP-EPC-T008R-i5 8" Panel PC, i5-3317U, 4GB RAM, 500GB HDD, Win 7, DC 12V, Resistive Touch $1,217.70



  • Specifications
  • Overview
  • Support
Mechanical
Model Name EPC-T008
Display Type 8" TFT-LCD
Max Resolution 1024 x 768 / 800 x 600
System
Processor Intel Core i5-U4200U 1.6GHz
Chipset Intel HM81
Memory DDR3L 4GB Max. 8GB
IDE/SATA 1 x 2.5” SATA HDD Bay
Luminance/Color 400cd/m², 16.7M
I/O Port
Front USB Port 2 x USB
Ethernet 1 x GbE LAN RJ-45
HDMI 1 x HDMI
VGA 1 x VGA
COM 1 x DB-9 RS-232/422/485
Audio 1 x Line Out
View Angle H:160° / V:160°
Power
Power Input DC 12V
Power Consumption <40W
Environment
Operating Temperature -10° to 60°C
Storage Temperature -20° to 60°C
Driver OS Support
  Windows 7 / 8.1 / 10, Win CE 8
Mechanical
Standard Color Silver or Black
Construction Aluminum front bezel and chassis
Mounting Panel, VESA 100x100mm
IP Rating NEMA 4 / IP65 compliant front panel
DImensions 231mm (W) x 58.7mm(D) x 182.5mm (H)
Weight 2kgs 4.4lbs
Certifications CE/FCC Class A
  • Intel Core i5-4200U 1.6GHz
  • Supports Multi-Touch
  • Flat Front Panel with IP65 Design
  • Memory up to 8GB DDR3L 1333MHz
  • Resistive Touch or Projected Capacitive Touch
  • High Brightness 1000/1500 nits (optional)
  • For options click the BUY NOW button

TWAP-EPC-T008 Data Sheet

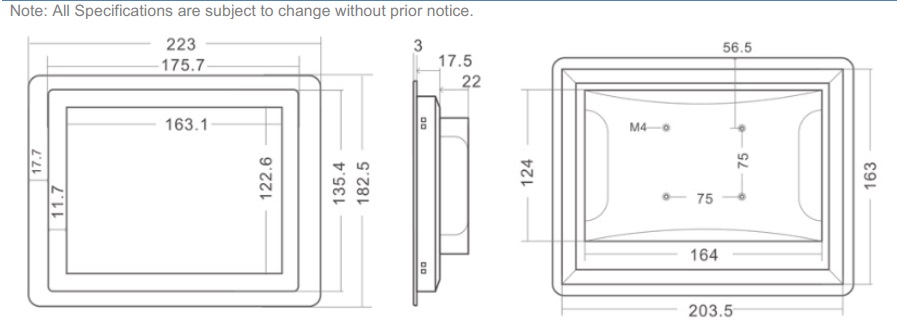

TWAP-EPC-T008 Mechanical Drawing
