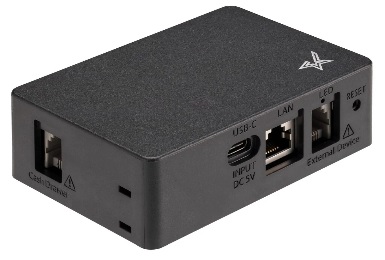

Star mC-Connect Cash Drawer Controller

Star mC-Connect Cash Drawer Controller
  • Open cash drawers directly from POS devices
  • No receipt printer required
  • USB, Ethernet, Wireless LAN, and Bluetooth Low Energy 5.0
  • Works with standard cash drawers—RJ-12 compatibility
  • Control two drawers independently, expandable up to four
  • Prevents failed opens with intelligent power management
  • Space-saving with magnetic mounting for secure placement on any side of the cash drawer

Star mC-Connect Cash Drawer Controller

Star mC-Connect Cash Drawer Controller

The Star mC-Connect Cash Drawer Controller is a cash drawer controller designed for modern POS systems, enabling direct control from tablets, mobile devices, and cloud-based applications—no receipt printer required. With USB, Ethernet, Wireless LAN, and Bluetooth Low Energy 5.0 in a single device, it delivers flexible connectivity for retail and restaurant environments while reducing hardware at the counter. Compatible with standard cash drawers equipped with RJ-12 connectivity, it allows businesses to upgrade existing setups and support mobile POS, multi-location deployments, and API-driven workflows with a single, scalable solution.



  • Specifications
  • Overview
  • Support
Model MCD10UEWB BK
Interfaces USB-C, Ethernet, Wireless LAN (2.4GHz), Bluetooth Low Energy 5.0
Cash Drawer Ports RJ-12 (DK) x 2 (supports up to 4 drawers with Dual Drawer Secure Cable DK-S12YE12Y-DDSC-72)
Power Supply USB bus-powered (DC 5V, 0.5A); required for WLAN and Bluetooth communication (power supply not included)
Dimensions 98 x 67 x 31 mm (W x D x H)
Weight Approx. 105 g
Operating Environment Temperature: 0°C–45°C | Humidity: 10–90% RH (non-condensing)
Wireless Security WPA3 Personal (WLAN), Bluetooth Low Energy 5.0 Secure Connections
Supported Software Star Quick Setup Utility, Star Windows Software, StarXpand SDK
Included Accessories USB cable (A-C), Easy setup guide, Safety guide
Color Black

The Star mC-Connect Cash Drawer Controller is a cash drawer controller designed for modern POS systems, enabling direct control from tablets, mobile devices, and cloud-based applications—no receipt printer required. With USB, Ethernet, Wireless LAN, and Bluetooth Low Energy 5.0 in a single device, it delivers flexible connectivity for retail and restaurant environments while reducing hardware at the counter. Compatible with standard cash drawers equipped with RJ-12 connectivity, it allows businesses to upgrade existing setups and support mobile POS, multi-location deployments, and API-driven workflows with a single, scalable solution.

Control Cash Drawers Without A Printer

The Star mC-Connect Drawer enables direct cash drawer control from tablets, mobile devices, and POS systems, eliminating the need for printer-driven operation. By removing this dependency, it supports more flexible POS setups and simplifies hardware at the counter. This makes it easier to deploy cash drawers in mobile, tablet-based, and space-constrained environments.

One Device.  Every Connection

With USB, Ethernet, Wireless LAN, and Bluetooth LE built into a single model, the mC-Connect Drawer eliminates the need for multiple interface-specific devices. It simplifies deployment, reduces inventory complexity, and supports a wide range of POS environments. A single device can be used across locations, helping standardize hardware and streamline rollouts.

Upgrade Without Replacing Hardware

Compatible with standard RJ-12 cash drawers, the mC-Connect Drawer allows businesses to modernize existing setups without costly replacements. It adds connectivity and control to installed hardware while supporting evolving POS workflows. This reduces upgrade costs and enables faster implementation with minimal disruption.

Reliable Control, Built For Real Operations

The mC-Connect Drawer manages power and command execution to ensure consistent drawer operation, helping prevent failed opens in high-demand environments. With support for multiple drawers and real-time status monitoring, it delivers dependable performance where it matters most. Designed for daily use, it provides consistent operation across retail and hospitality settings.

Star mC-Connect Controller Product Data Sheet
