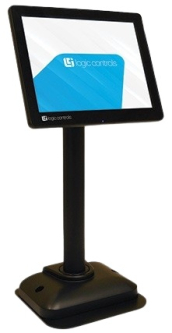

Logic Controls LV4000 Customer Pole Display

Bematech Logic Controls LV4000 Customer Pole Display
  • 8 inch LCD display with LED backlight
  • Optimal display resolution, 800 x 600
  • Increases customer engagement at the point-of-sale
  • No ventilation hole design
  • Light weight, only 1.5 lbs for display without the pole and base
  • Simple installation
  • VESA 75 x 75mm wall mount standard
  • True flat panel screen
  • Creates great up-selling opportunities
  • Warranty:  3 years from original date of purchase

Bematech Logic Controls LV4000 Customer Pole Display

Logic Controls LV4000 Customer Pole Display

The Logic Controls LV4000 is an 8 inch LCD pole display which is used as a secondary monitor with supported Point of Sale software (check with your software vendor for support confirmation).  The 8 inch LCD monitor can be used to deliver marketing and promotion messages to customers at the time of checkout or other identified locations. With a high 500:1 contrast ratio and 800 x 600 optimal resolution, the screen projects vivid graphics to grab customer attention it’s intended location, enhancing your overall business and customer experience.
List View
Grid View



  • Specifications
  • Overview
  • Support
Mechanical
Weight 3.0 lbs
Dimensions 15.75″H x 7.9″W x 5.9″D
Stand Base 7″ pole + Base
Wall Mount VESA 75 * 75 mm
Interface USB Type B
LCD Monitor
Display Size 8.4"
Active Area (inch) 6.05 x 3.41
Optimal Resolution 800 x 600 (WVGA)
Brightness 230 cd/m²
Contrast Ratio 600:1
Response Time 8 ms
Tilt Angle Horizontal: 150°  Vertical: 130°
Input Frequency Horizontal: 31.5-60.2 kHz  Vertical: 56.3Hz – 75Hz
Electrical
Power Consumption 500mA/2.5W
Power Supply DC 5V +/- 5%
Environmental
Operating Temperature 0°~ 40°C
Storage Temperature -10°C ~ 50°C
Relative Humidity Operating: 20%~80%  Storage: 10%~90%
Certification
Certification FCC, CE

The Logic Controls LV4000 is an 8 inch LCD pole display which is used as a secondary monitor with supported Point of Sale software (check with your software vendor for support confirmation).  The 8 inch LCD monitor can be used to deliver marketing and promotion messages to customers at the time of checkout or other identified locations. With a high 500:1 contrast ratio and 800 x 600 optimal resolution, the screen projects vivid graphics to grab customer attention it’s intended location, enhancing your overall business and customer experience.

Bematech Logic LV4000 Data Sheet

Bematech Logic Contols LV4000 User Manual
