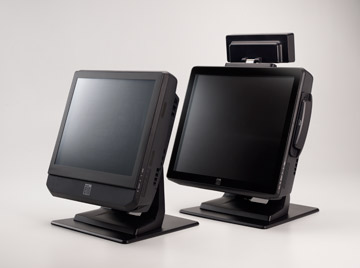

B-Series Elo 15 Inch and 17 Inch Touch Computers

The Elo TouchSystems B-Series All-in-One touchcomputer platform simply provides in a compact design, more flexibility with a choice of configuration and connectivity options, more serviceability with easy access to key components, and more processing power.  In addition, a wide array field-installable peripherals, spill-resistant sealing, and a selection of input/output port connection options make the B-Series both versatile and powerful.  It is designed with the future in mind, allowing easy field serviceability of all of the main components.  Also for restaurant, bar, hosptiality, drink and meal orders, and booking guest rooms at the front desk.

The B-Series is engineered for flexibility, with multiple memory and storage configurations, as well as scalable computing power featuring three high-performance processor configurations:

• Cool and Quiet B2  Fan-less  Intel Atom Dual-Core 1.66 GHz
• Performance B1  Fan-cooled  Intel Celeron Dual-Core 2.2GHz
• Performance Ultra B3  Fan-cooled  Intel Core 2 Duo 3.0 GHz

The flexibility, serviceability and performance of the B-Series are rare in commercial All-in-One touchcomputers.  In a stylish, compact design, the B-Series provides three highly configurable, ruggedized touchcomputers, in two screen sizes – 15-inch and 17-inch, plus the choice of three industry-leading Elo touch technologies.  The B-Series touchcomputer family has been developed to meet the diverse needs of a wide variety of point-of-sale (POS), point-of-information (POI), and point-of-service venues, including retail and hospitality display units, customer loyalty systems, internet access sites, digital signage as well as bedside entertainment, home automation and control.

All of these models also support multiple customer-installable memory and storage configurations including:

• Up to 4GB¹ RAM (B2) / up to 4GB² RAM (B1/B3)
• 2^nd hard drive option, for expanded storage or RAID configuration

Plus, a full-range of standard connectivity ports including:

• 6 x standard USB 2.0
• 2 x RS-232 serial
• 1 x Gigabit Ethernet
• 3 x 3.5mm audio (line in, mic in, audio out)
• HDMI out (B1/B3)

• Wireless Adapter (USB, 802.11b/g/n)
• Powered USB (2x12V) and Cash Drawer Port (12V/24V) expansion card
• Second VGA Port expansion card
• RAID PCI-E Card
• Modem PCI-E Card
• Parallel Port PCI-E Card

• Second 160GB Hard Disk Drive (HDD)
• 1GB DDR2 Memory DIMM Kit
• 2GB DDR2 Memory DIMM Kit
• 4GB DDR2 Memory DIMM Kit

 Weight all periph.

• Touchscreen sealed to bezel (IntelliTouch)
• Touchscreen sealed to sub-bezel (AccuTouch, APR)
• Touchscreen sealed to LCD (all)

• Serviceable internal components
• Removable base with 100mm VESA mounting
• Threaded holes on bottom of base for mounting
• Kensington security lock
